FAN9673 Power Factor Correction

FAN9673 Power Factor Correction

Posted on by • 0 Comments

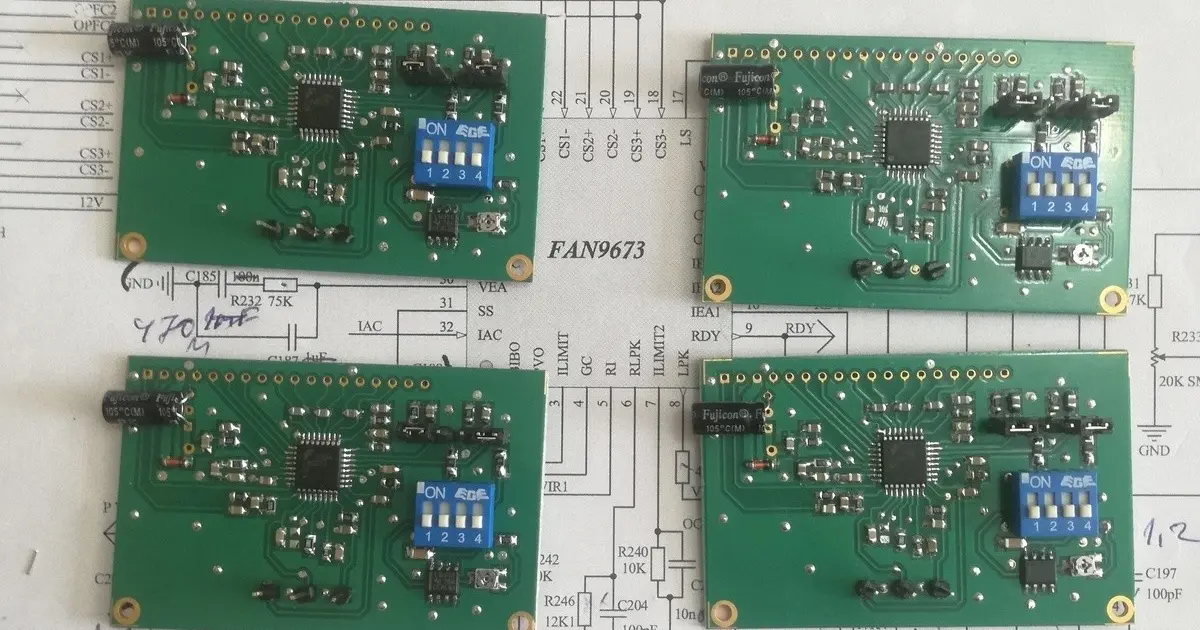

Here you can find our implementation of Power Factor Corrector with FAN9673. Still experimenting will update with more details soon.

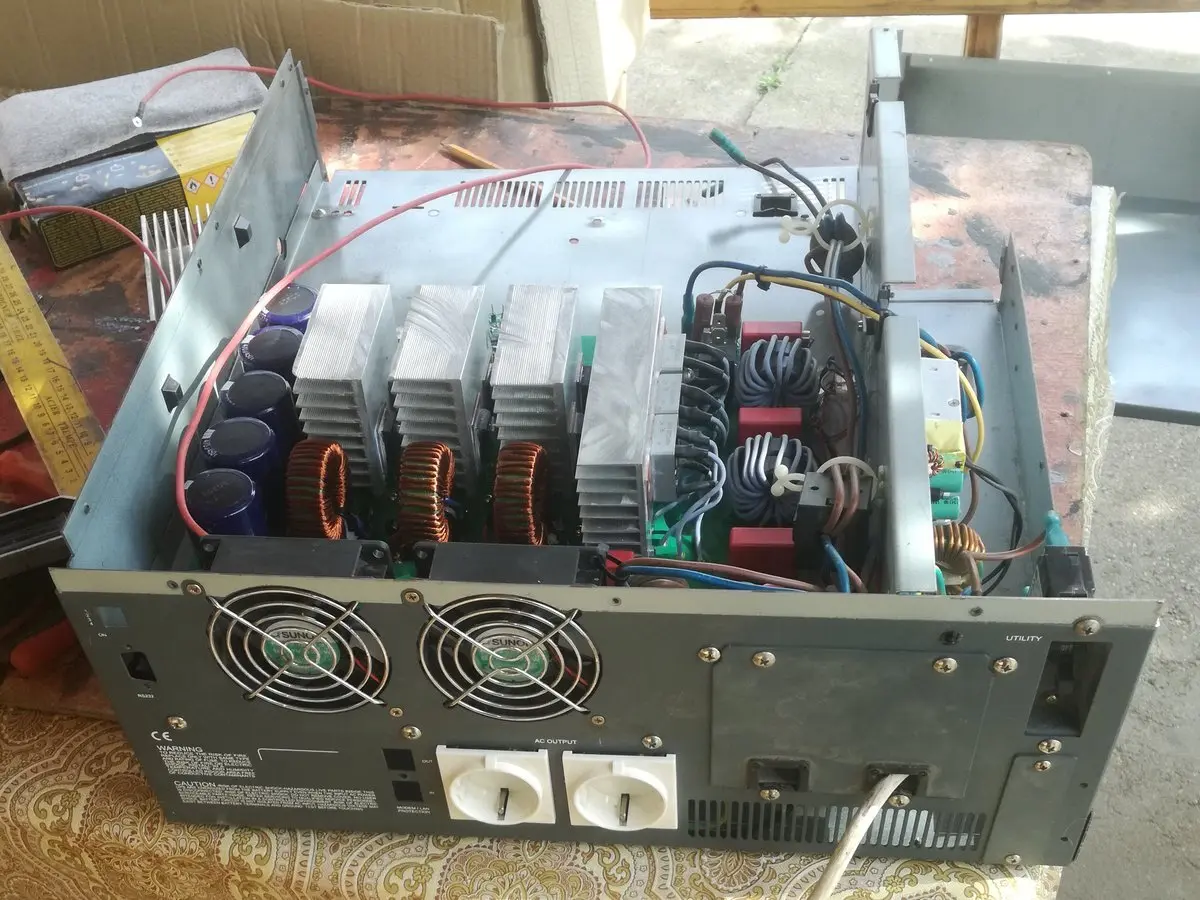

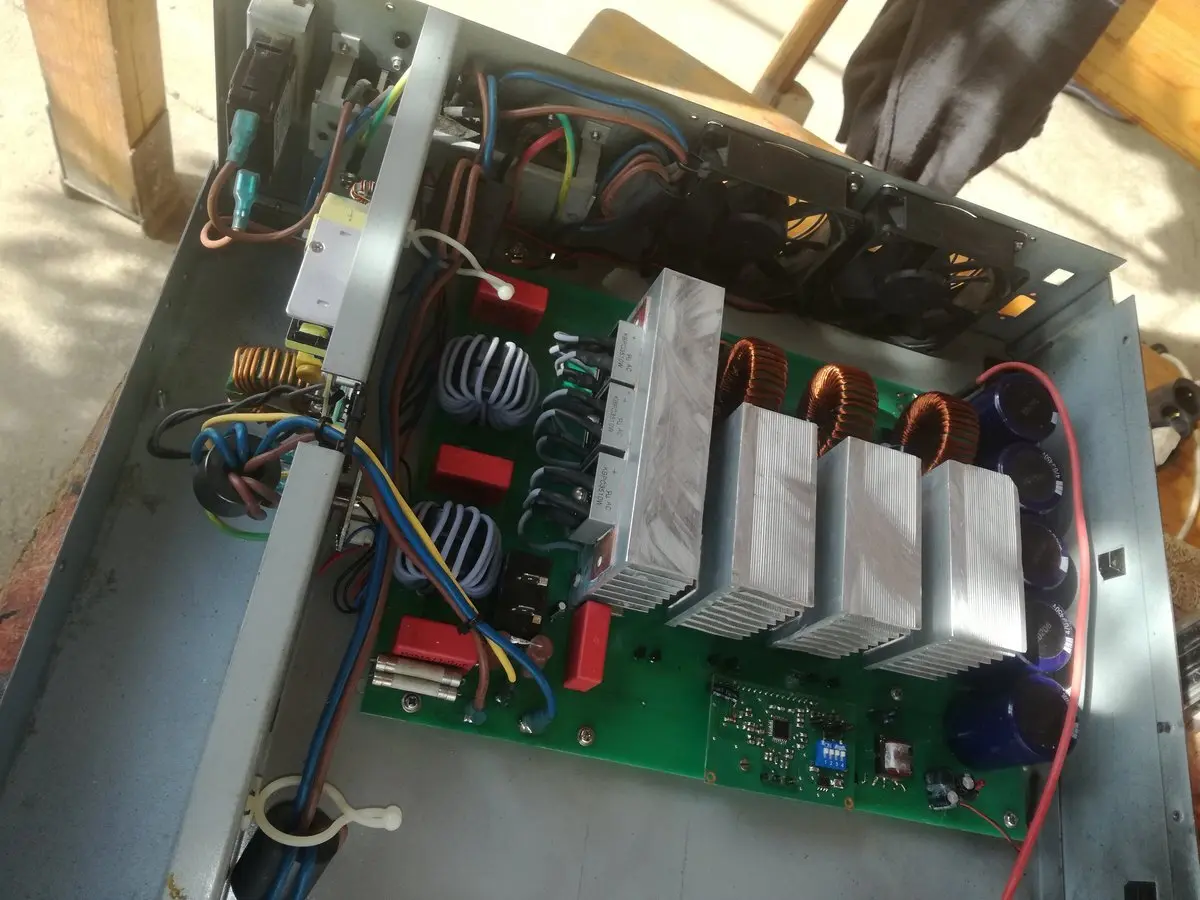

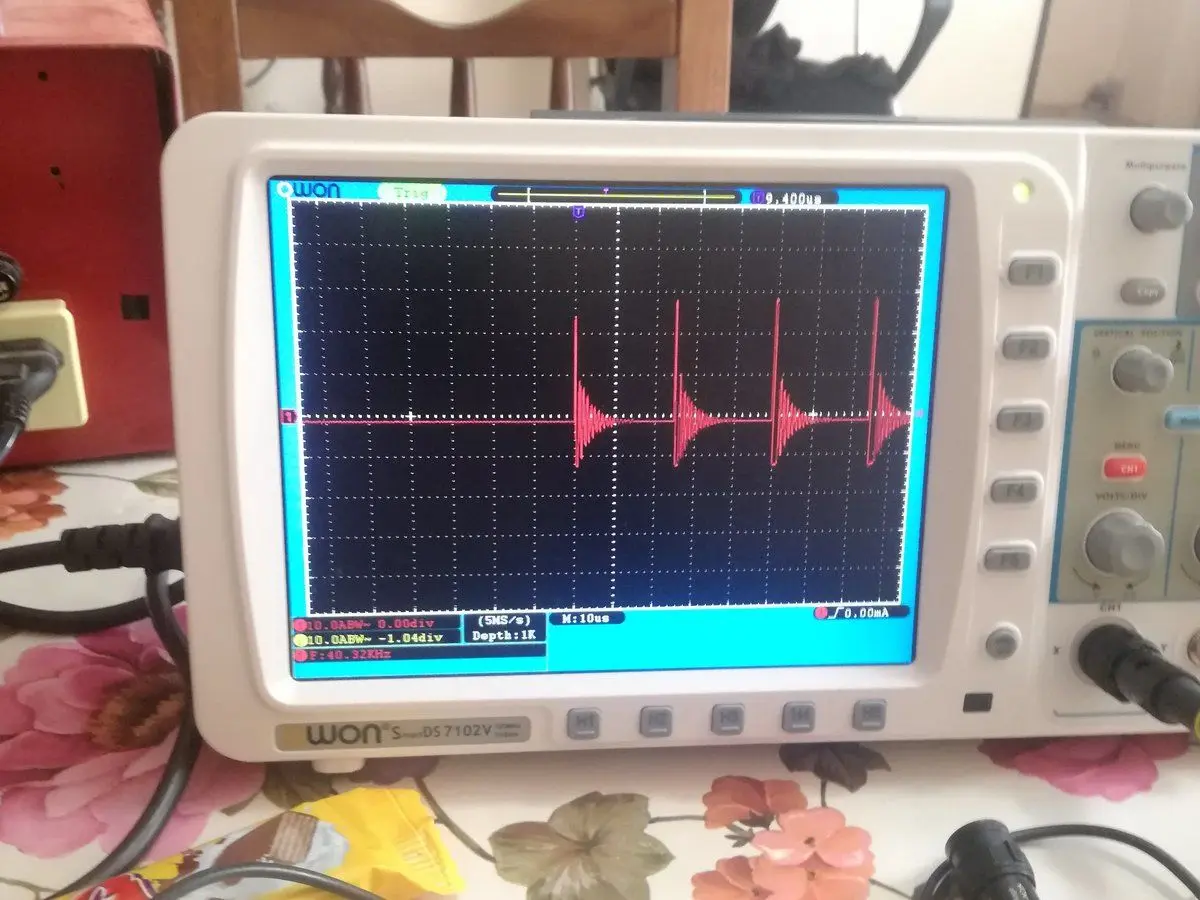

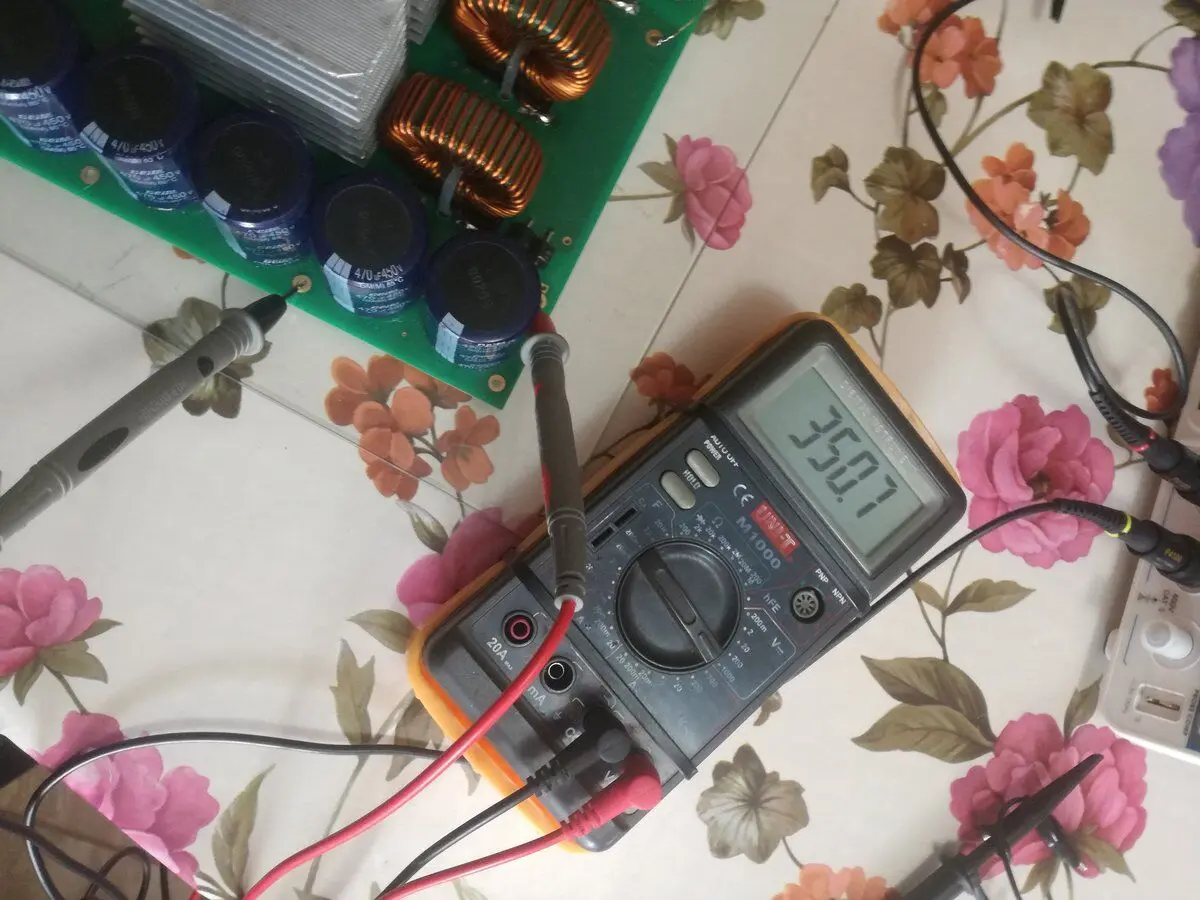

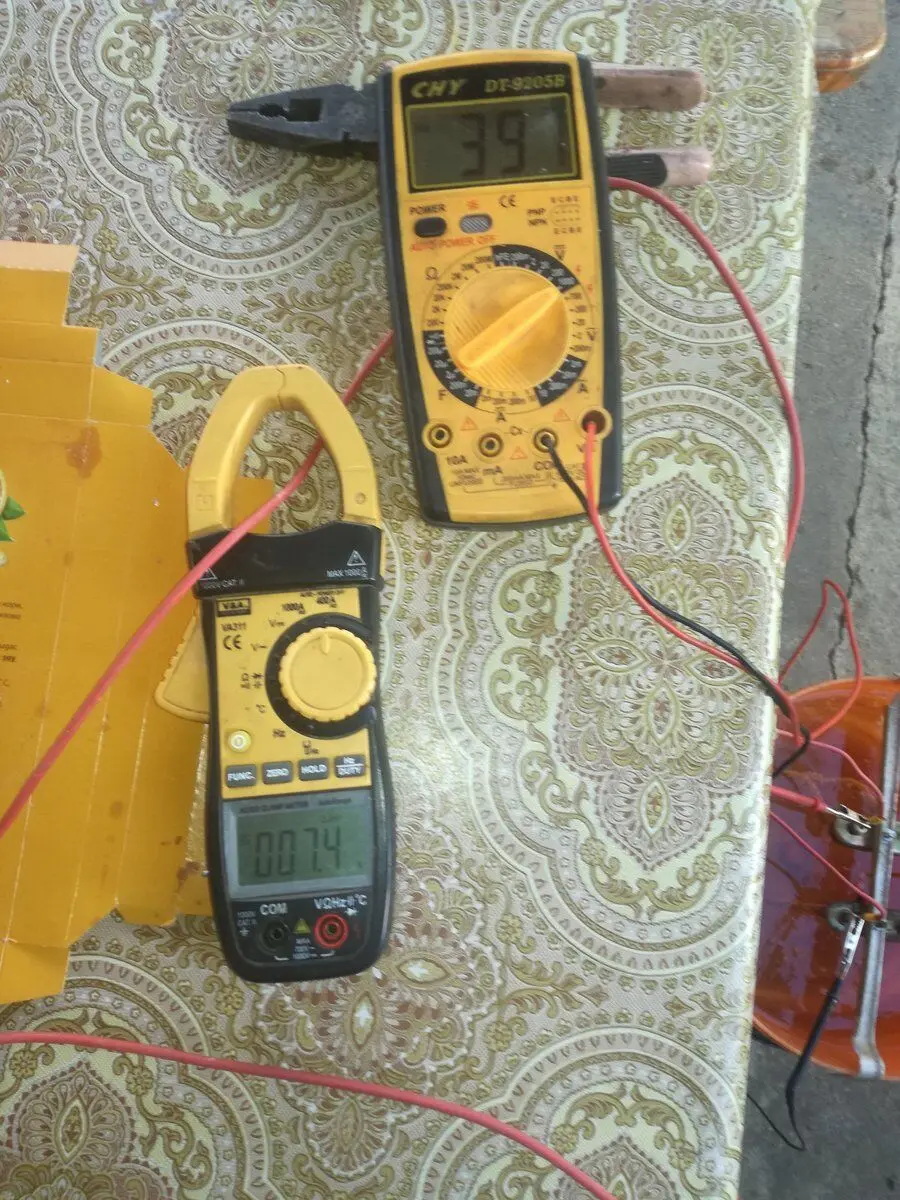

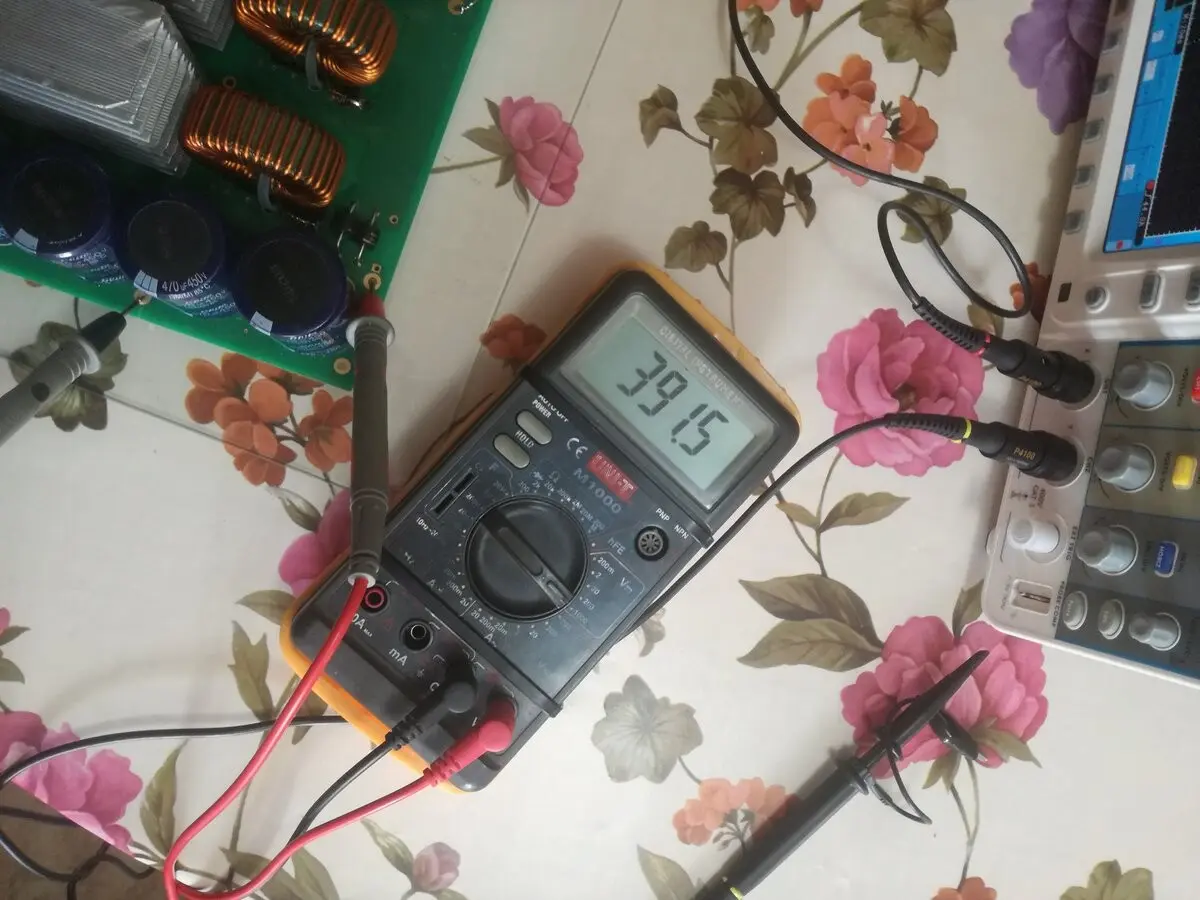

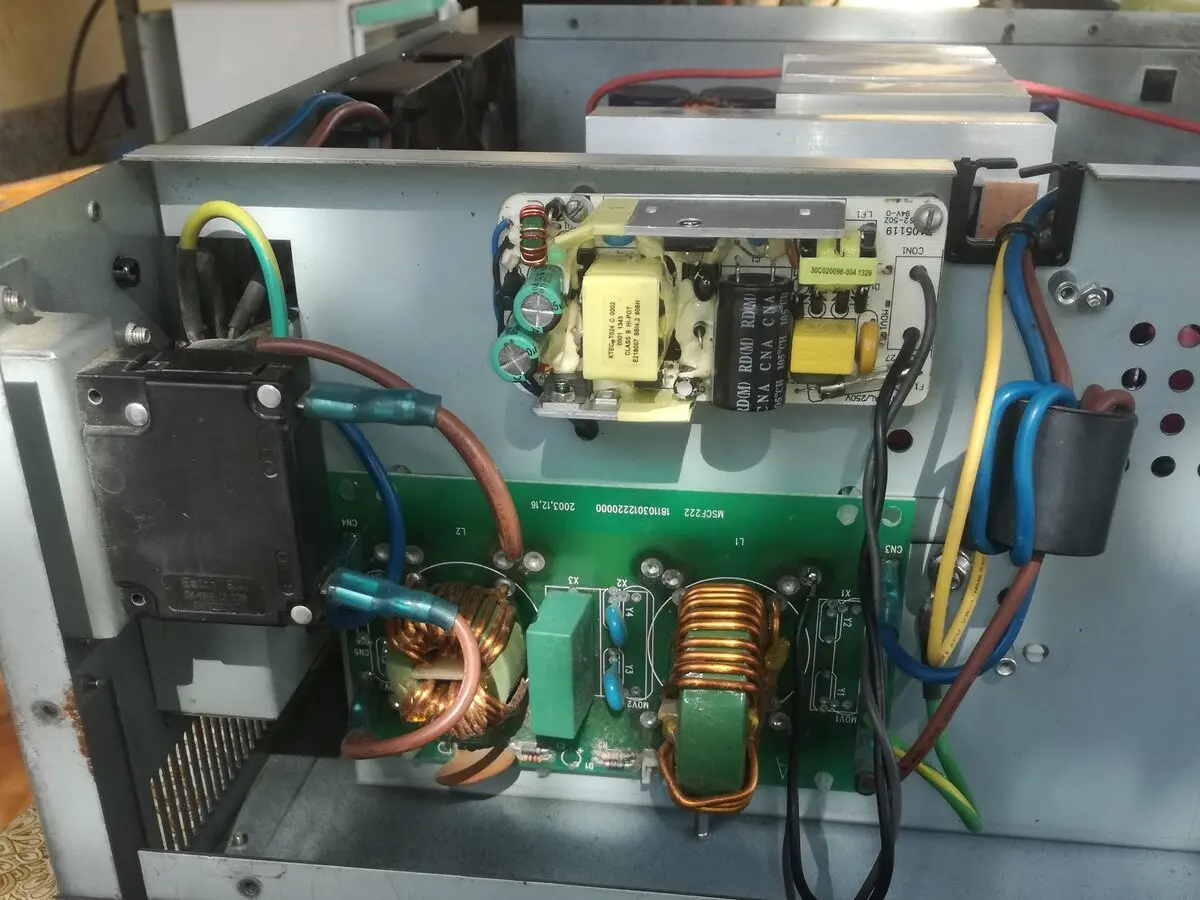

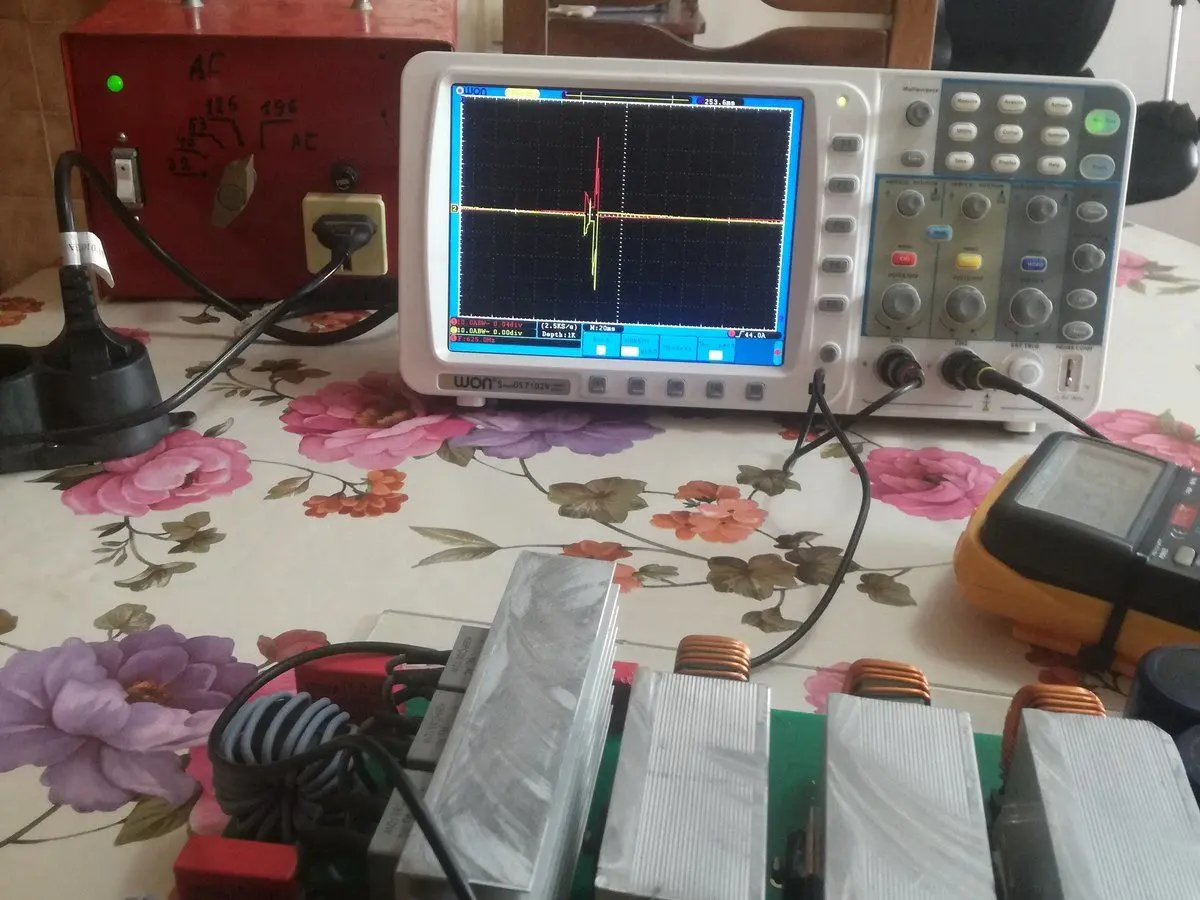

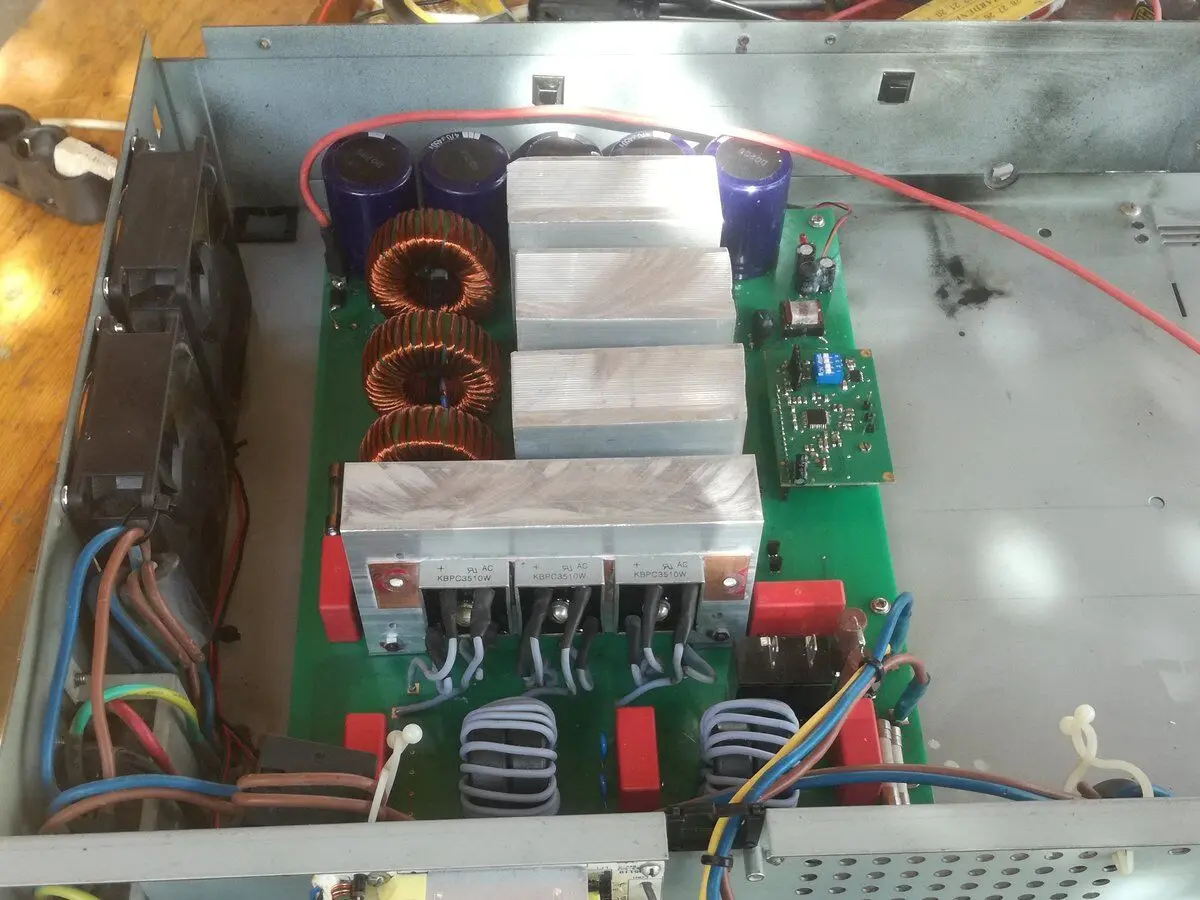

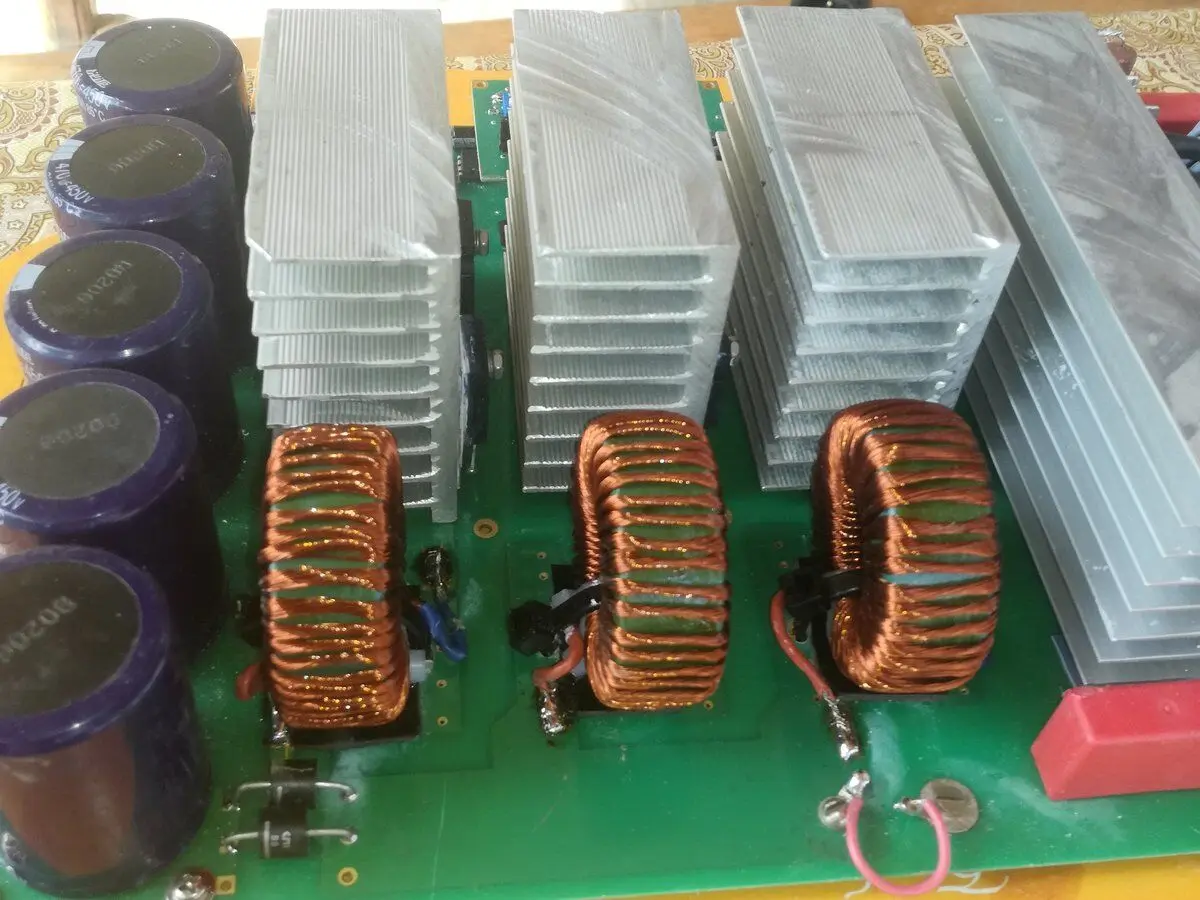

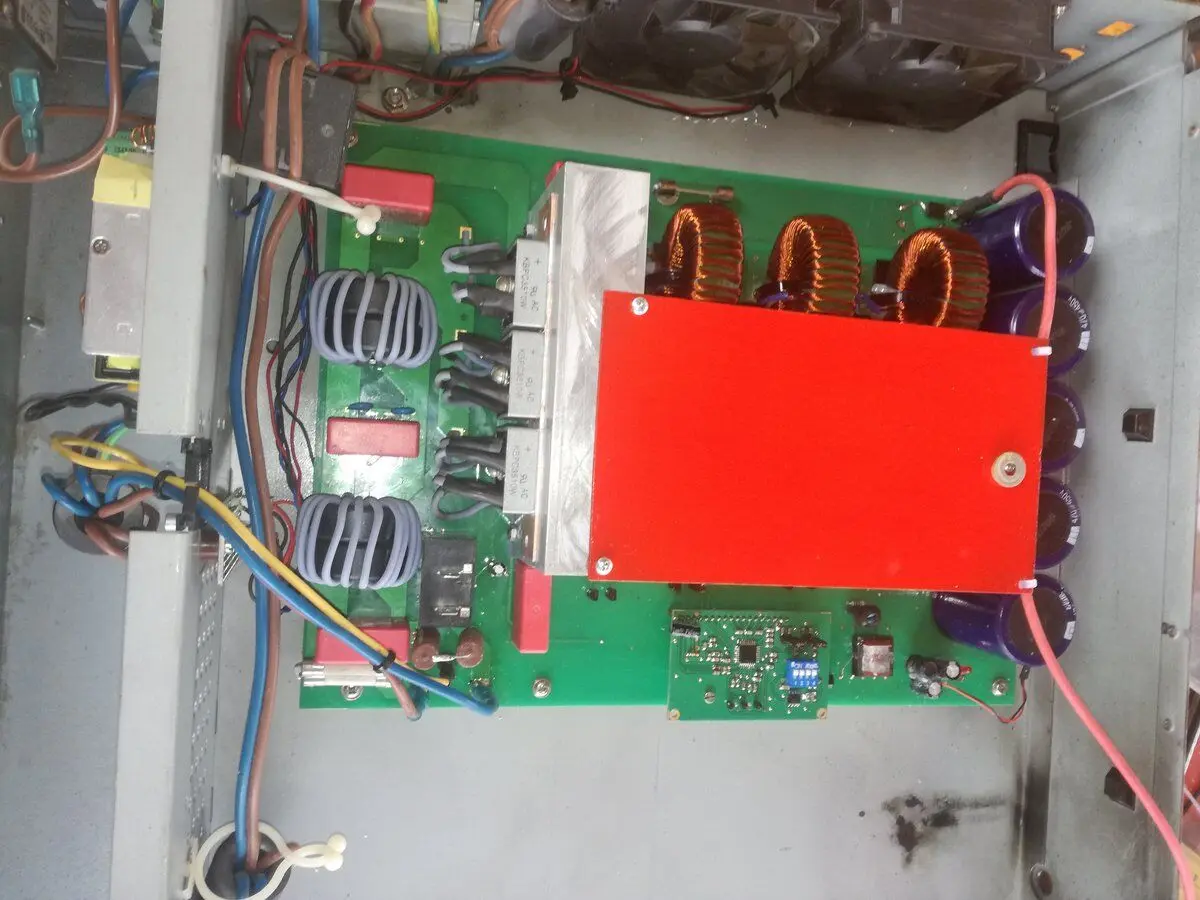

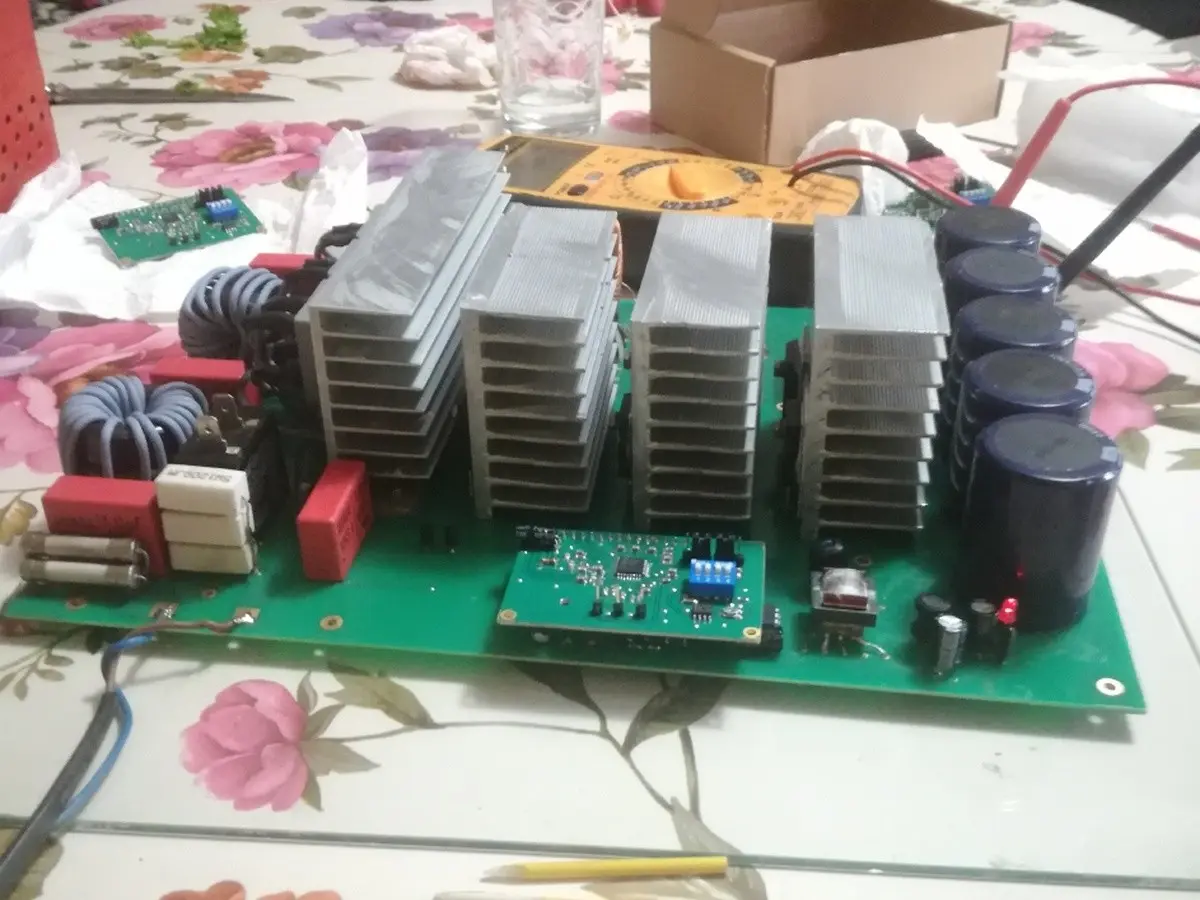

Gallery

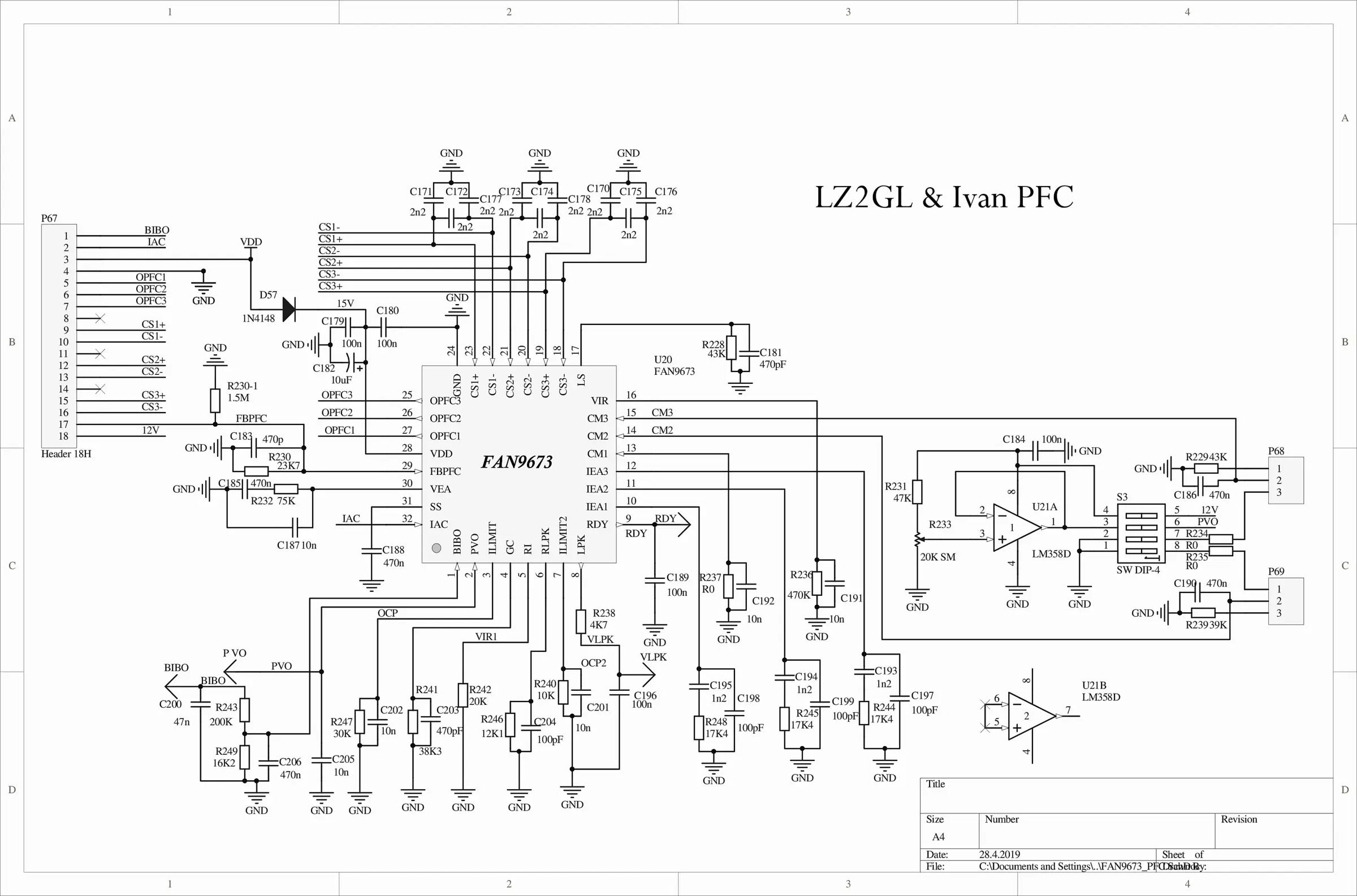

FAN9673 PFC Main Schematics

FAN9673 PFC Main Schematics
FAN9673 PFC Main Schematics
( as PDF)

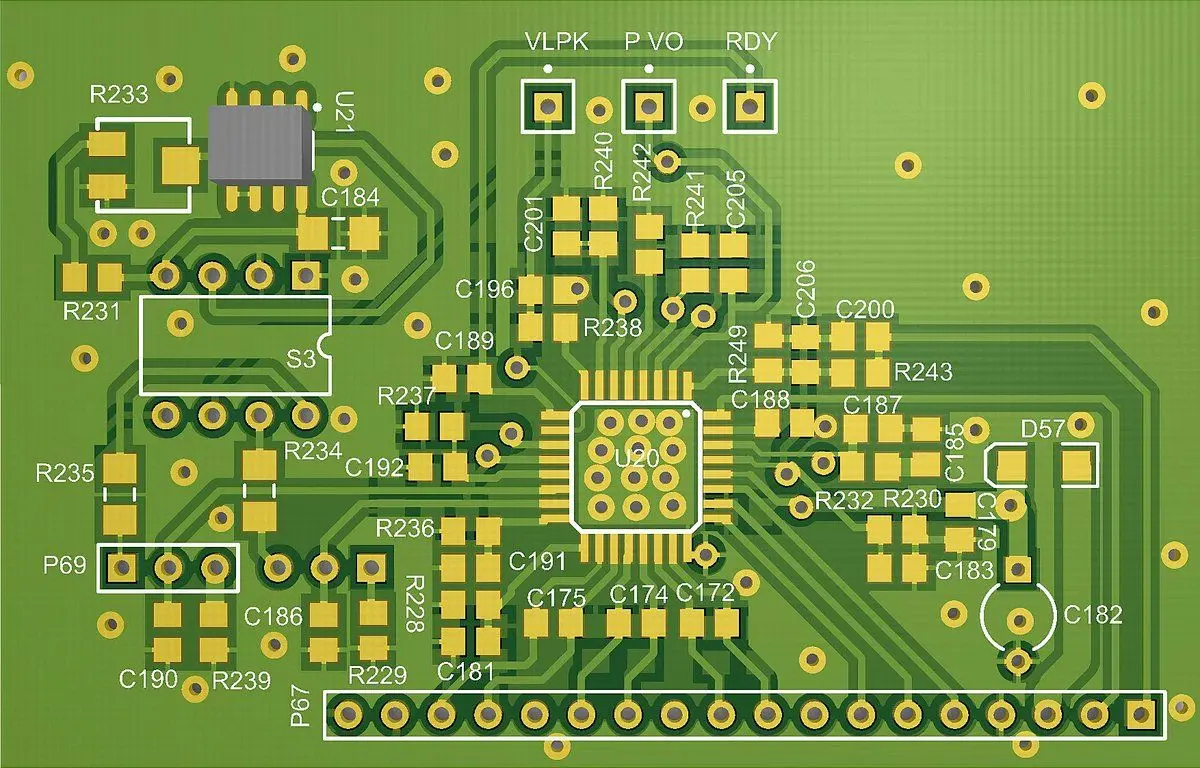

FAN9673 PFC Main PCB Top
FAN9673 PFC Main PCB Top
( as PDF)

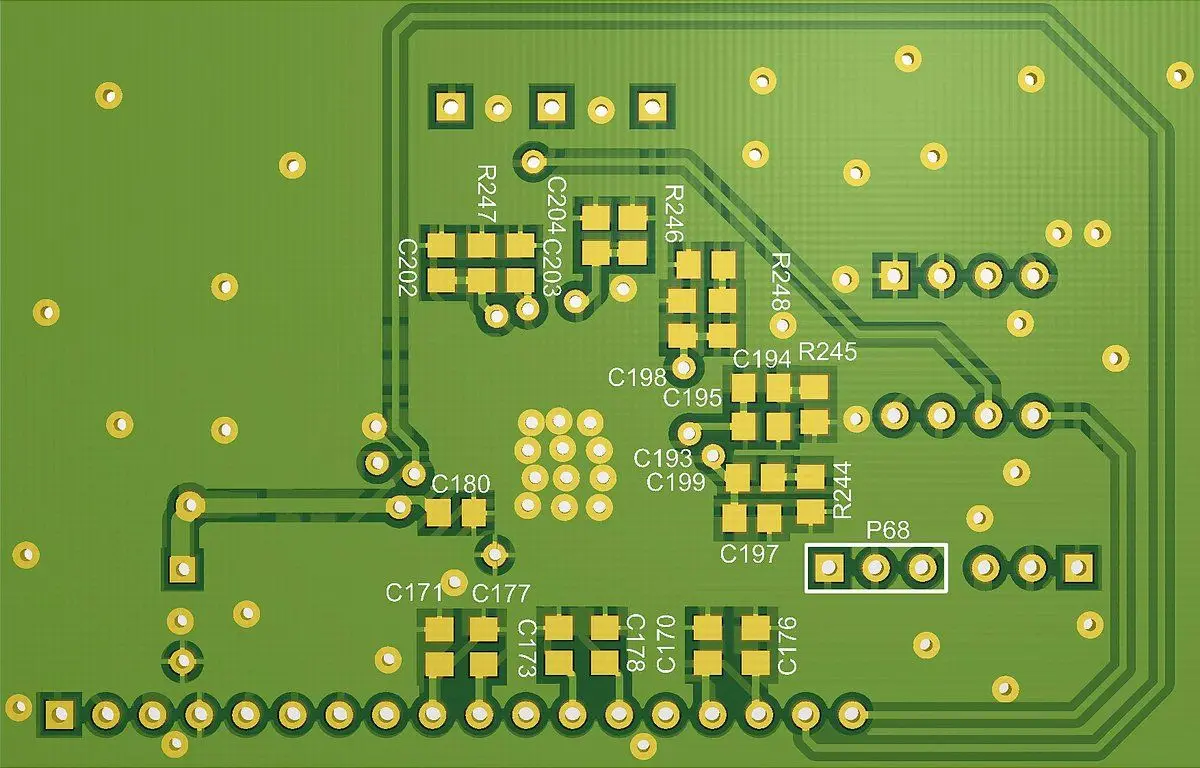

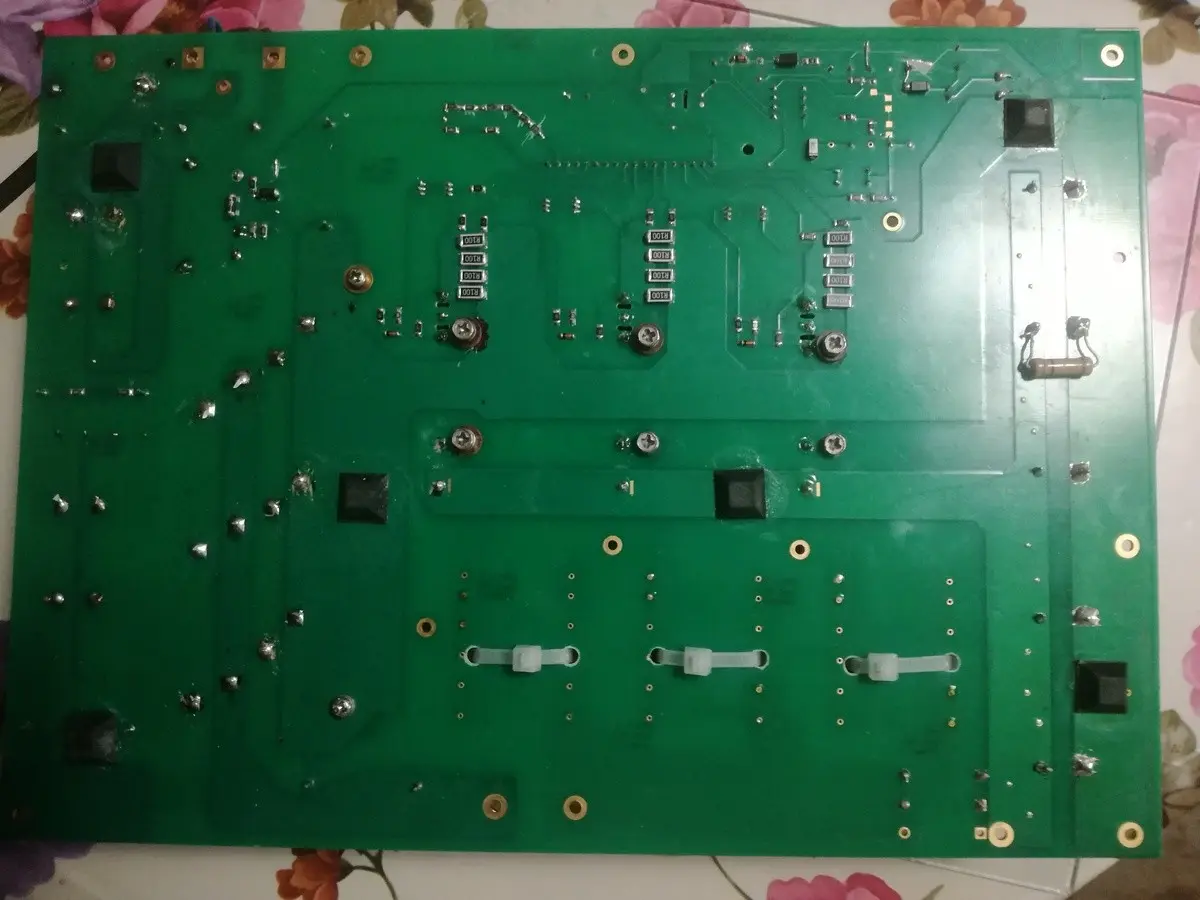

FAN9673 PFC Main PCB Bottom
FAN9673 PFC Main PCB Bottom
( as PDF)

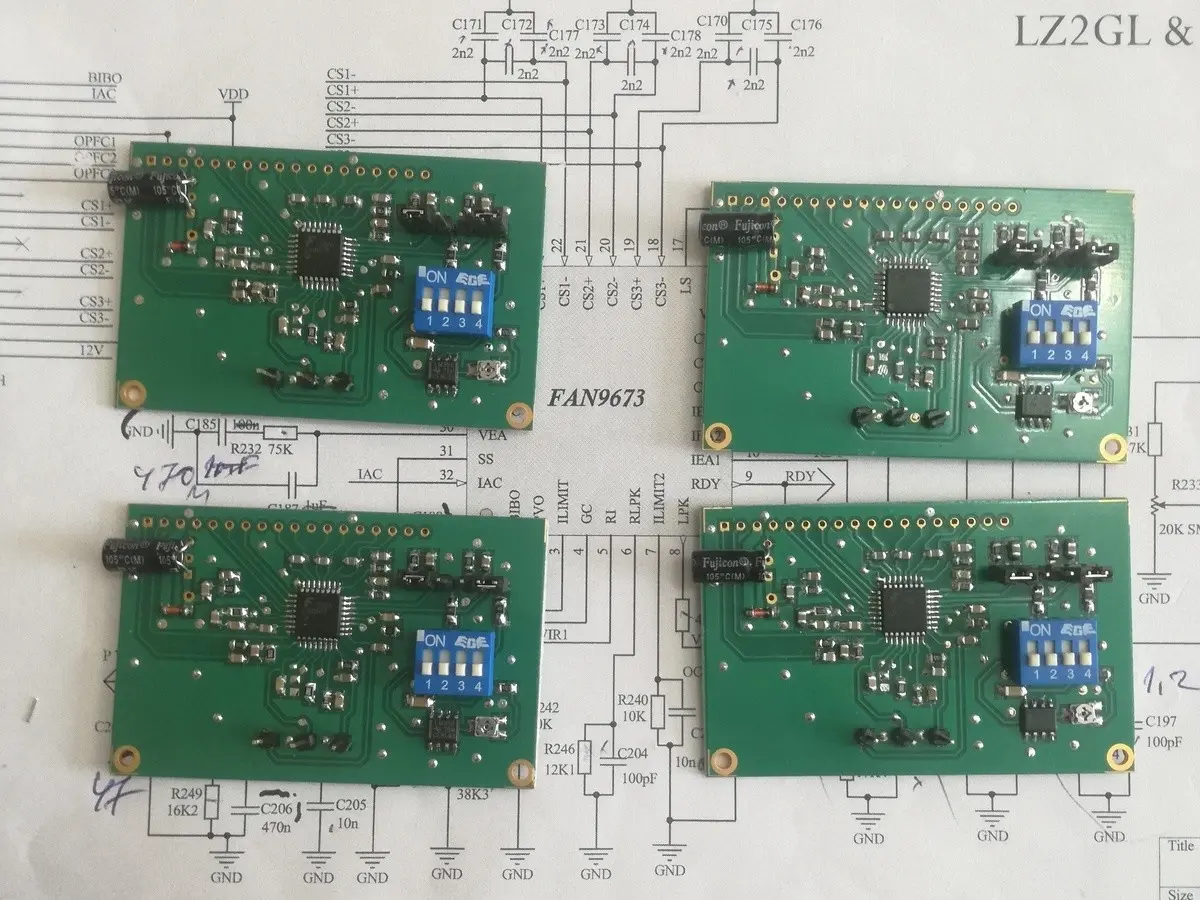

FAN9673 PFC PA Schematics

FAN9673 PFC PA Schematics
FAN9673 PFC PA Schematics
( as PDF)

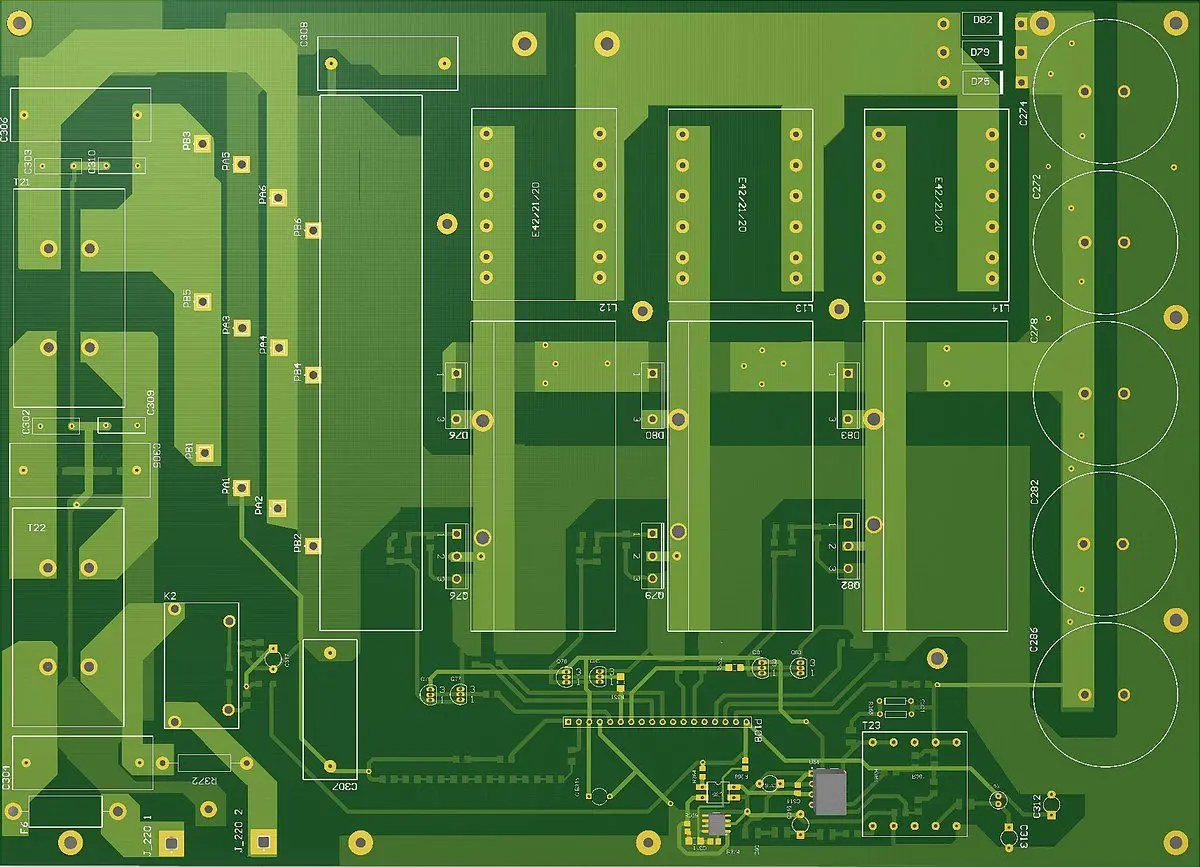

FAN9673 PFC PA PCB Top
FAN9673 PFC PA PCB Top
( as PDF)

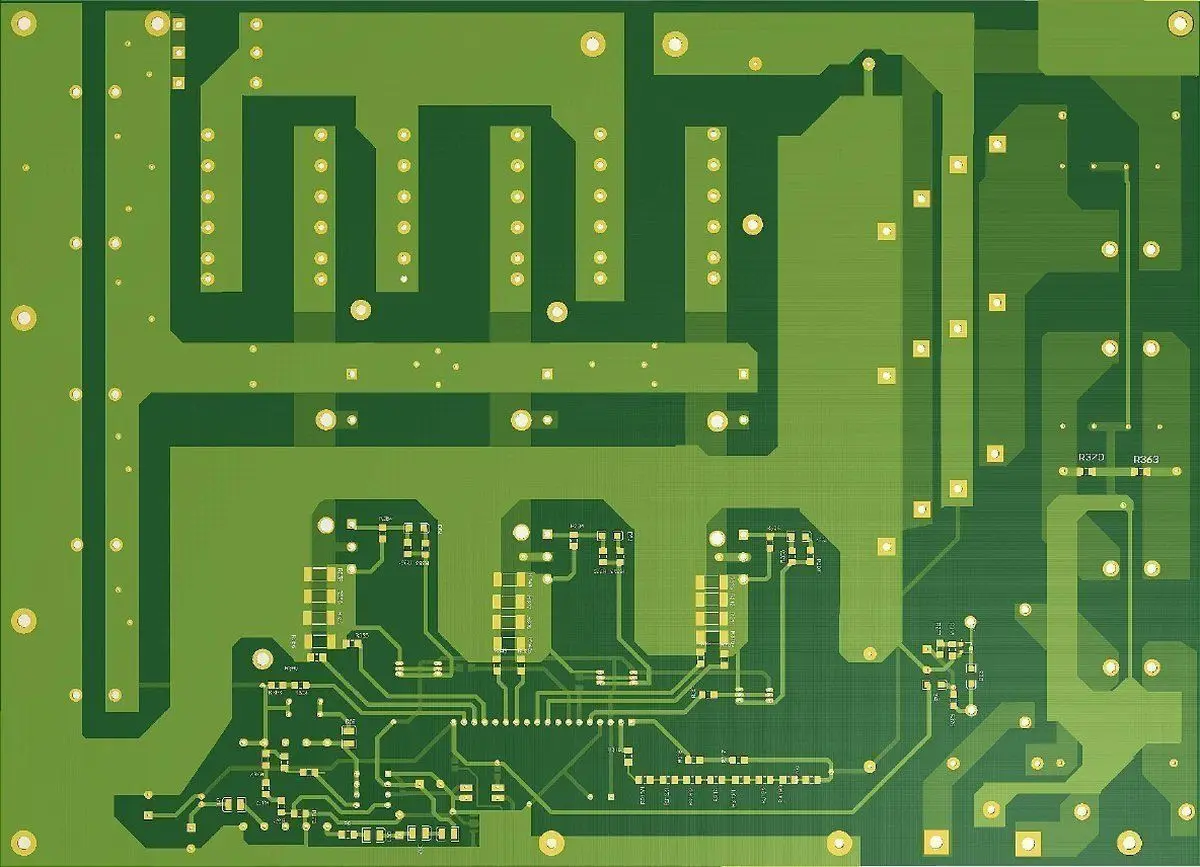

FAN9673 PFC PA PCB Bottom
FAN9673 PFC PA PCB Bottom
( as PDF)
