Here you will find schematics for our version of the popular SDR-1000 transceiver, it uses DDS AD9854 from Analog Devices.

Schematics

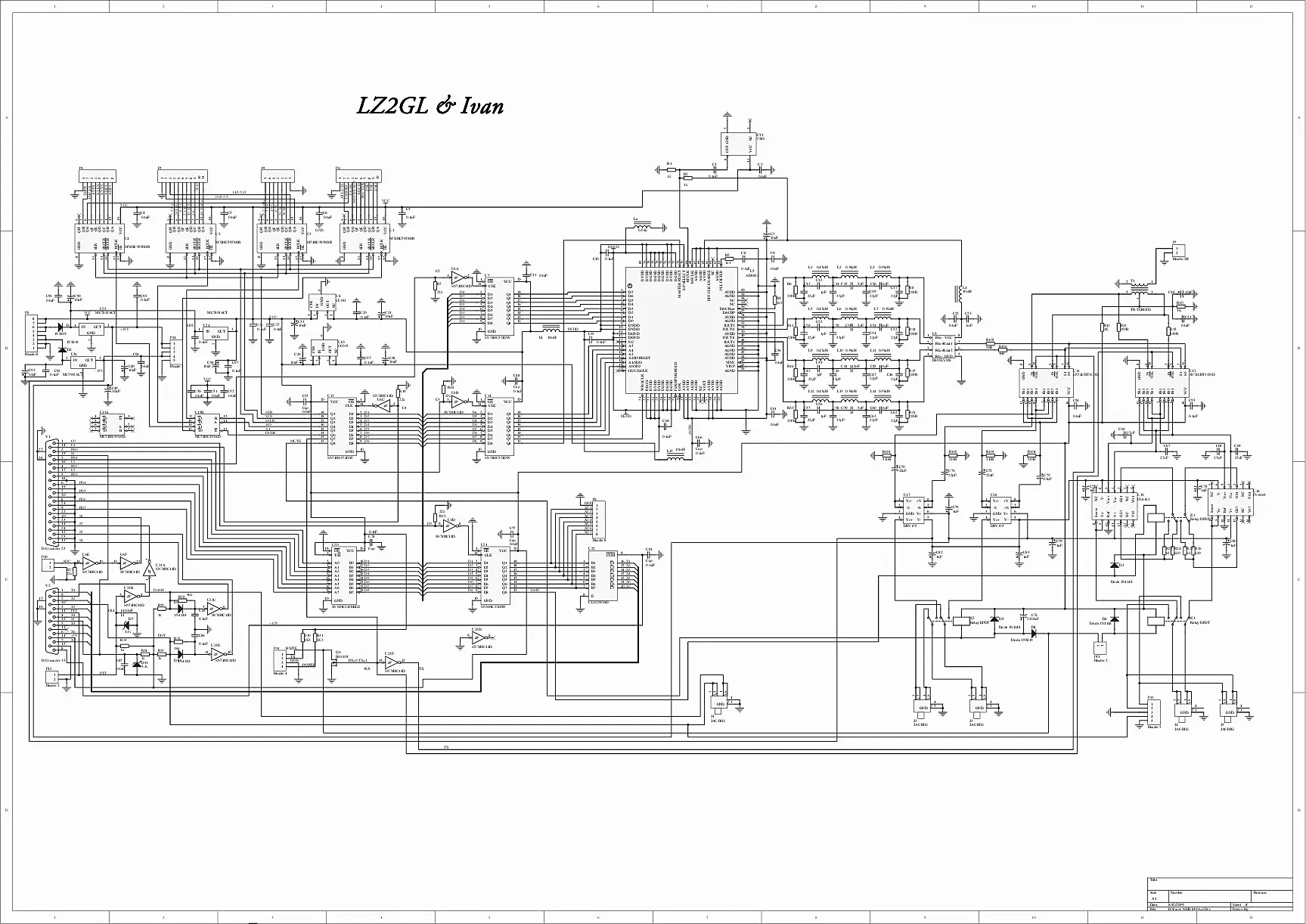

SDR-1000 DDS - AD9854
SDR-1000 DDS – AD9854 ( as PDF)

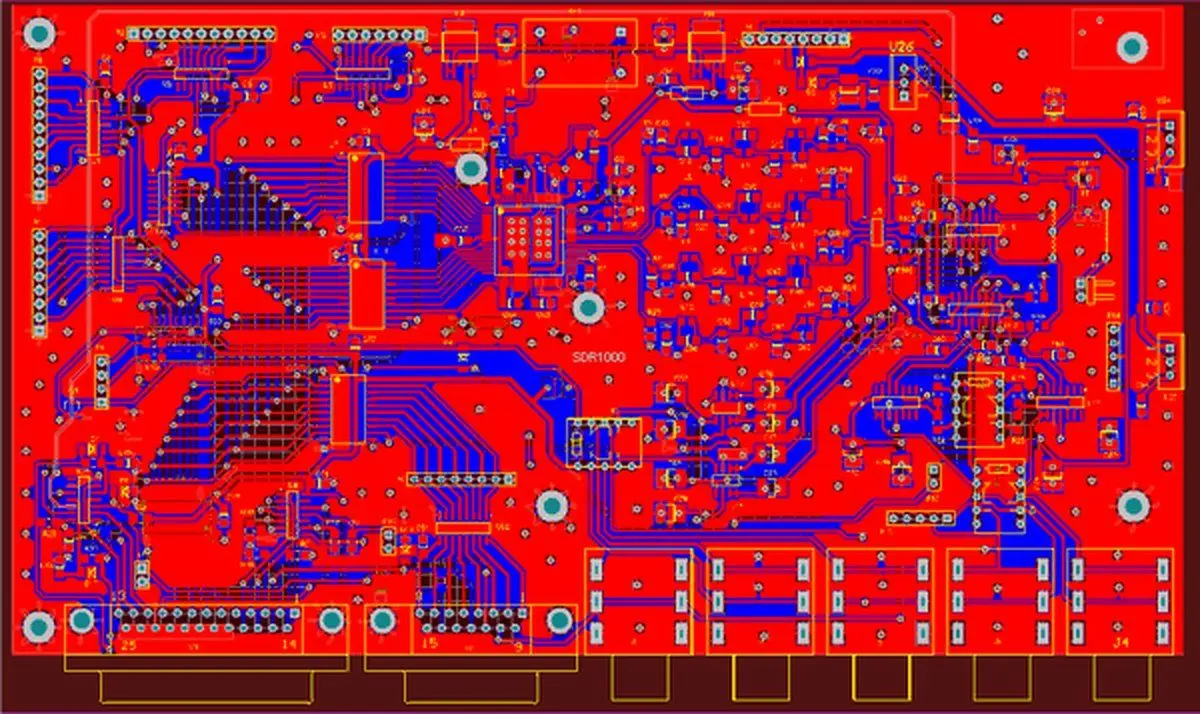

SDR-1000 Top PCB
SDR-1000 Top PCB

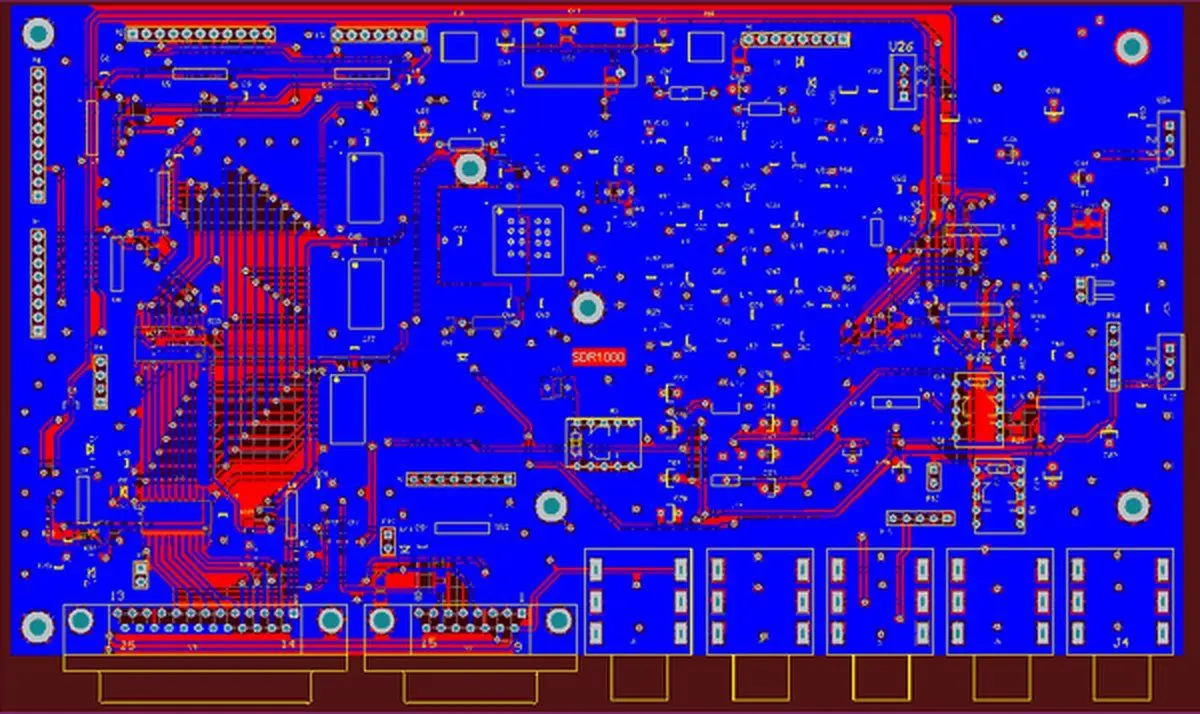

SDR-1000 Bottom PCB
SDR-1000 Bottom PCB

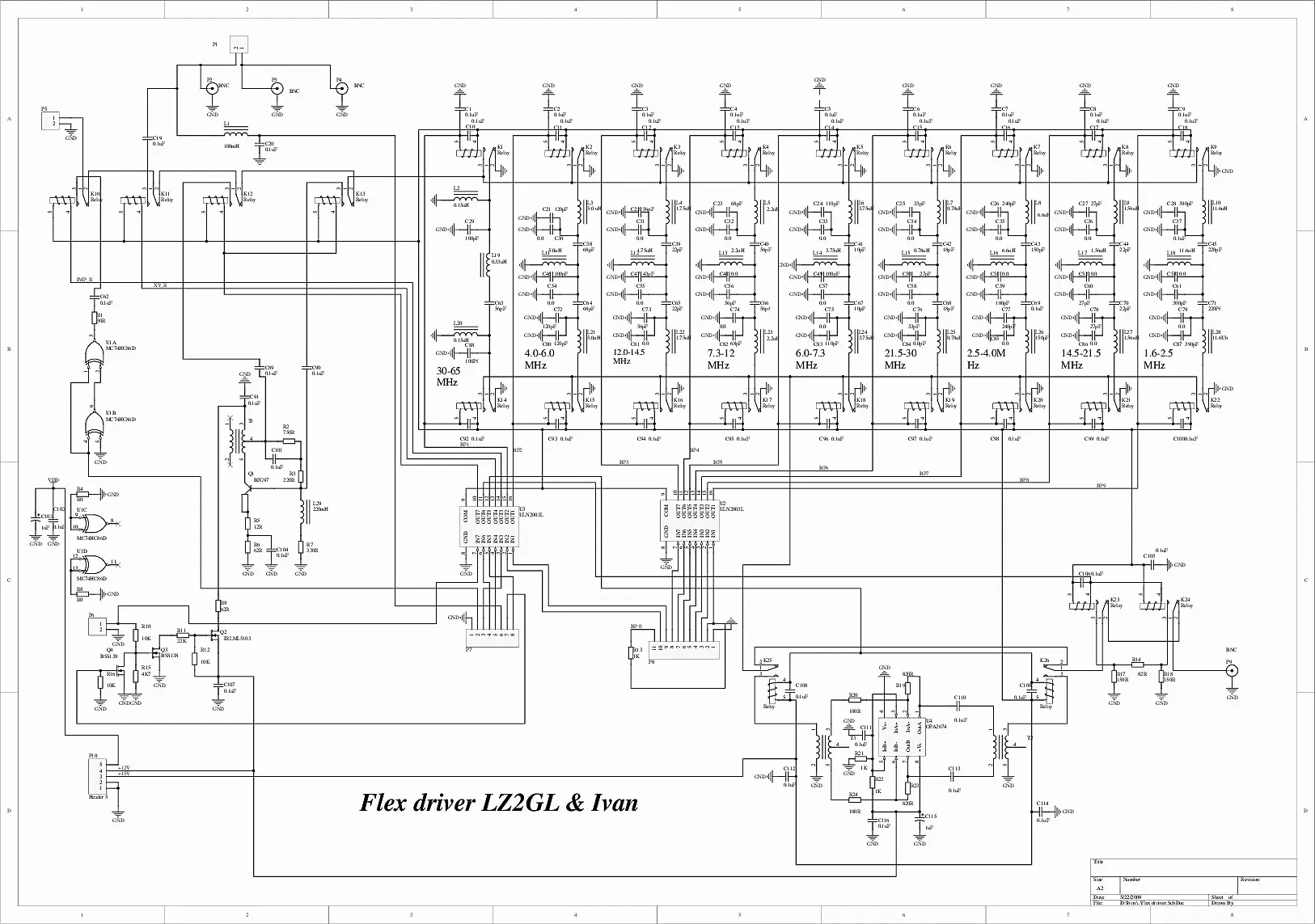

Flex Driver
Flex Driver ( as PDF)
Flex Driver Top PCB
Flex Driver Top PCB

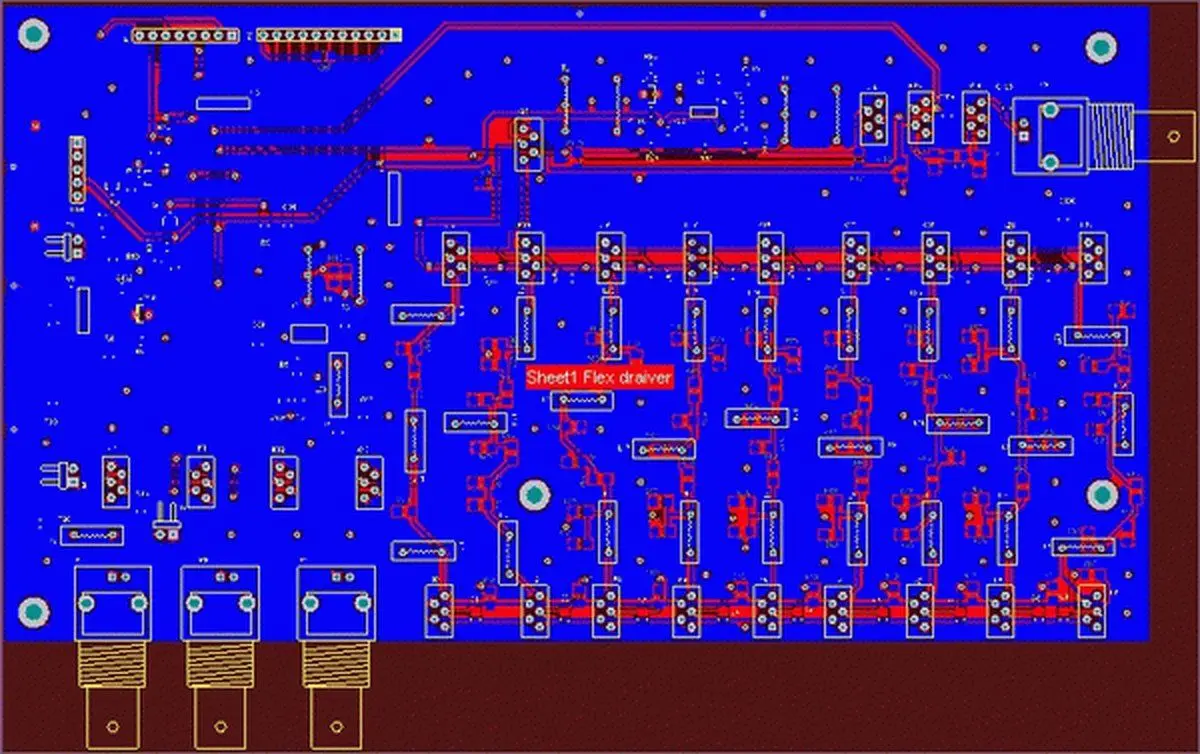

Flex Driver Bottom PCB
Flex Driver Bottom PCB

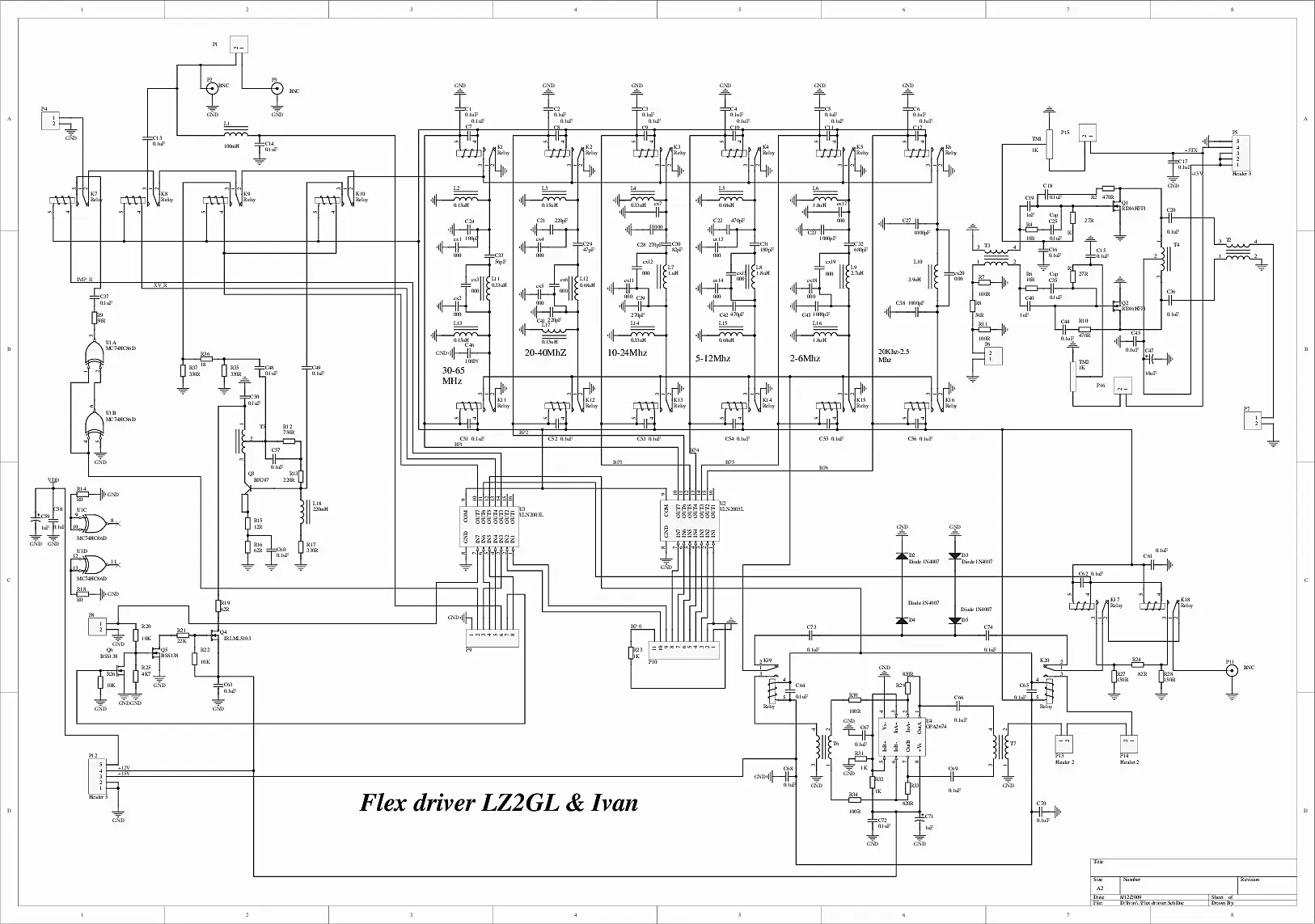

Flex Driver 50W
Flex Driver 50W ( as PDF)

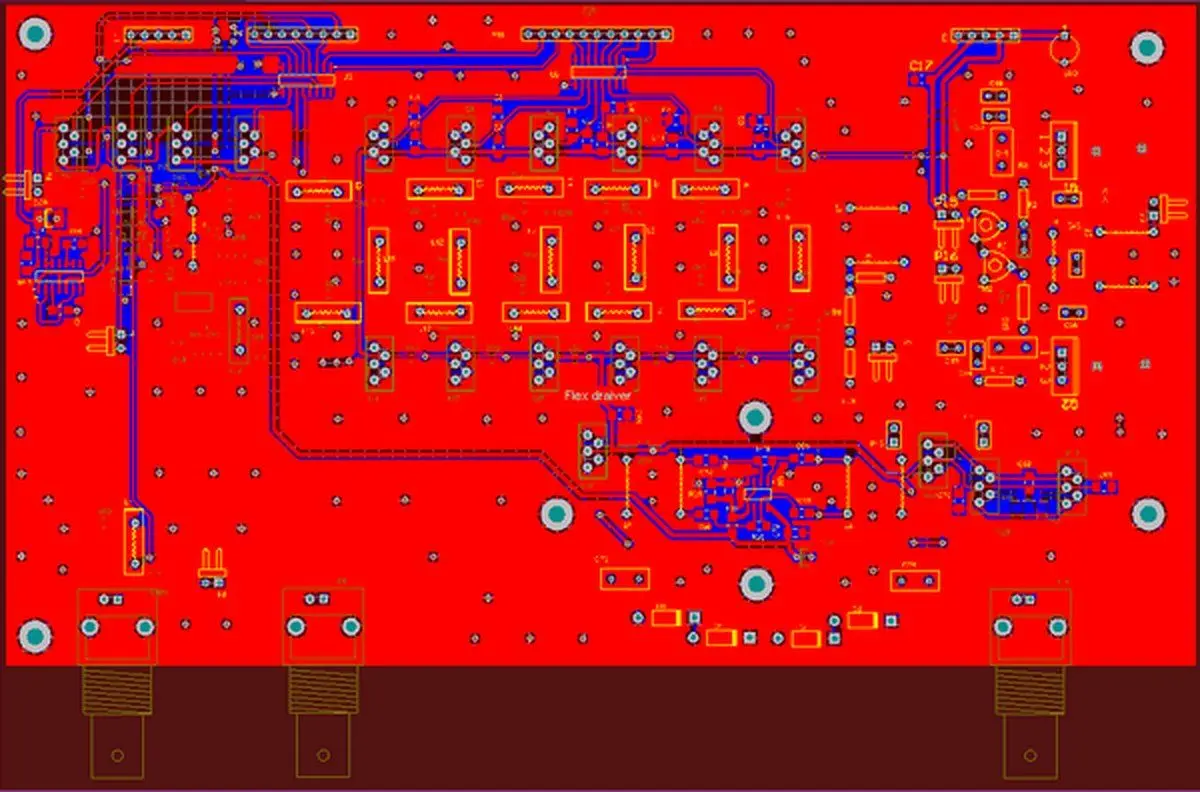

Flex Driver 50W Top PCB
Flex Driver 50W Top PCB

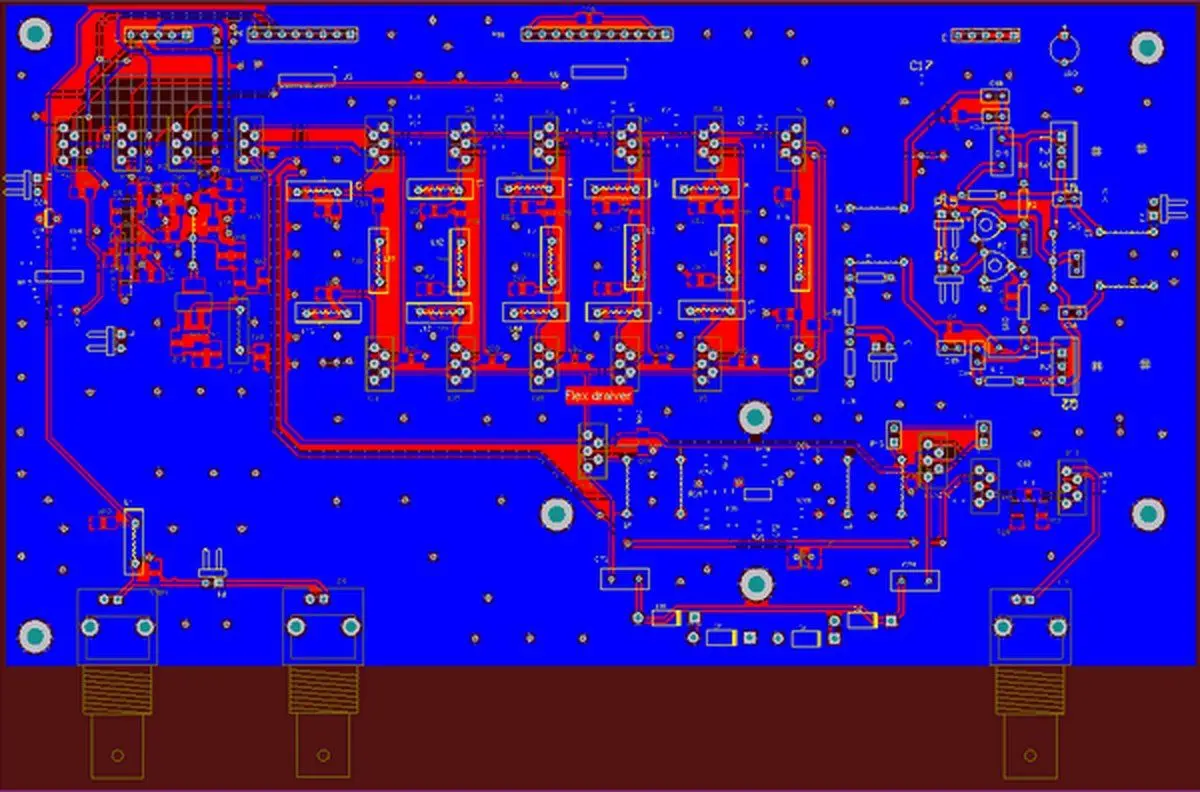

Flex Driver 50W Bottom PCB
Flex Driver 50W Bottom PCB

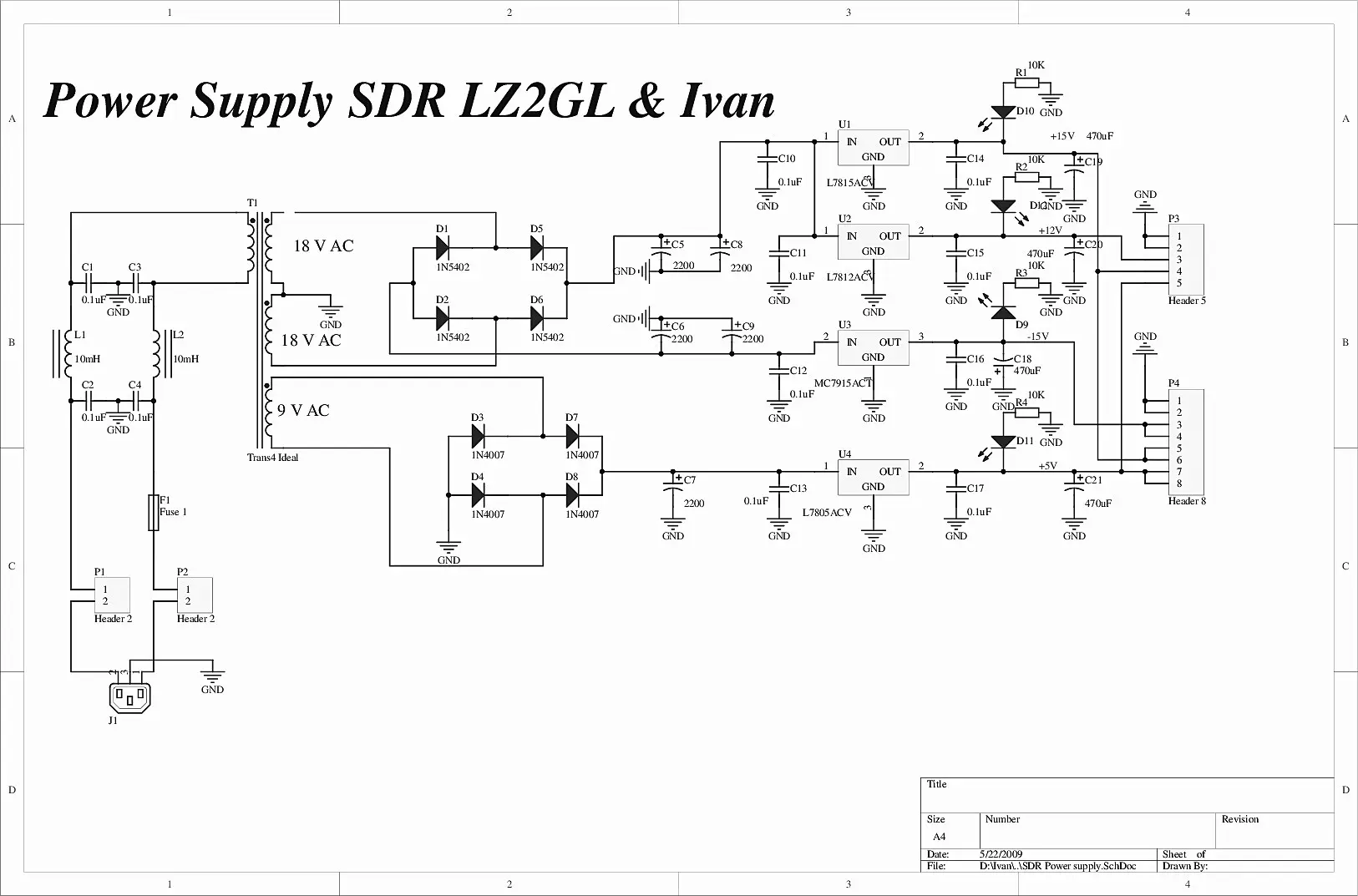

SDR-1000 Power Supply
SDR-1000 Power Supply ( as PDF)

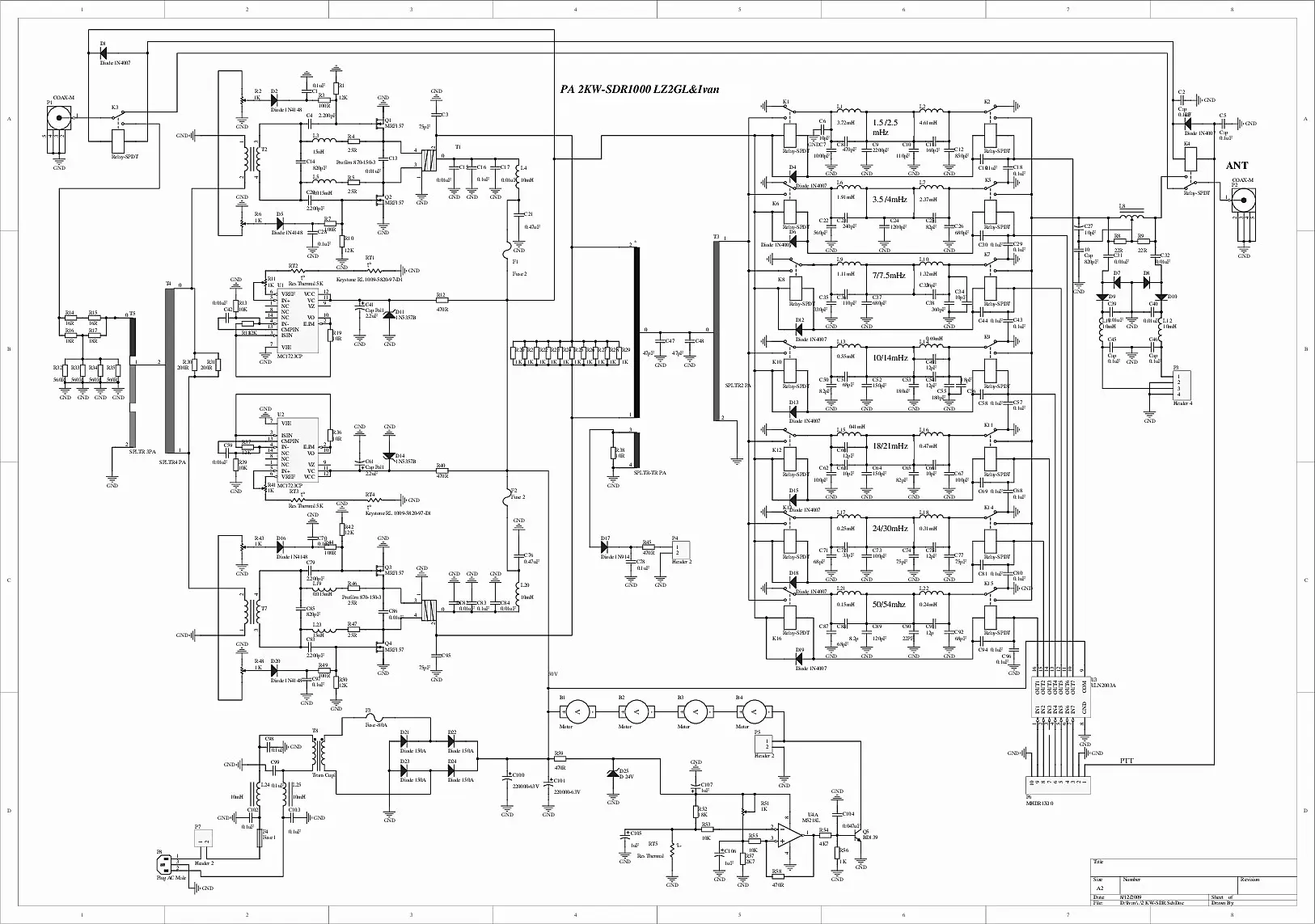

Power Amplifier 2KW
Power Amplifier 2KW ( as PDF)
