Here you will find our home made pure sine wave power inverter based on SPWM EG8010. It converts 48V to 220V with 3000 watts output.

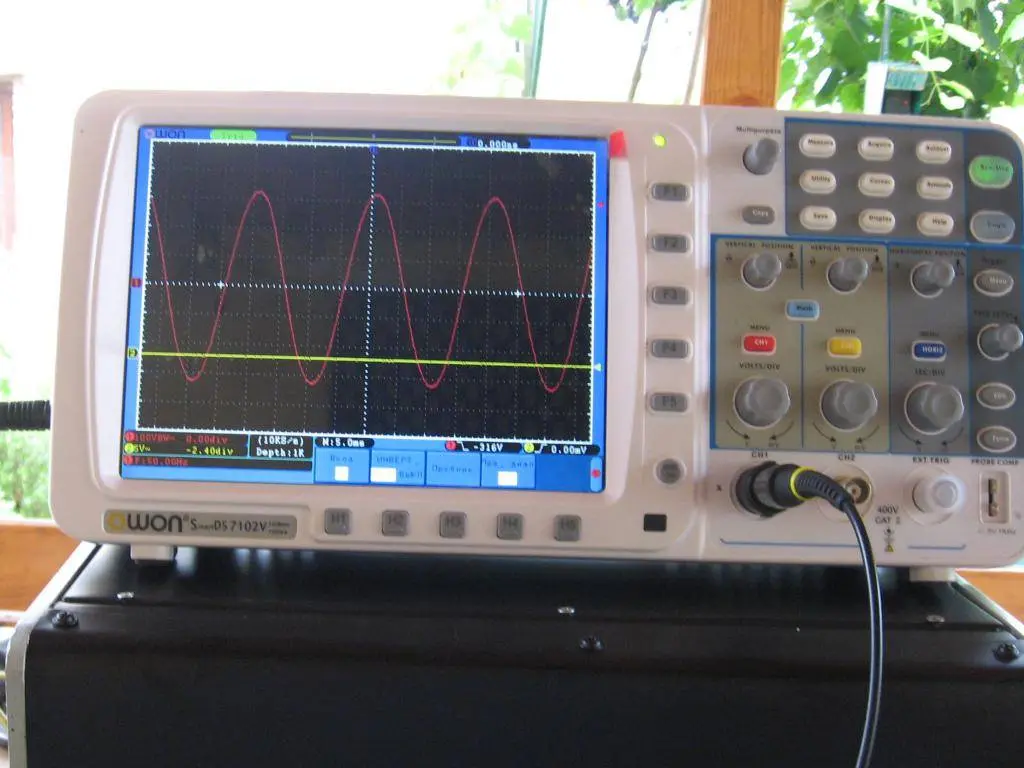

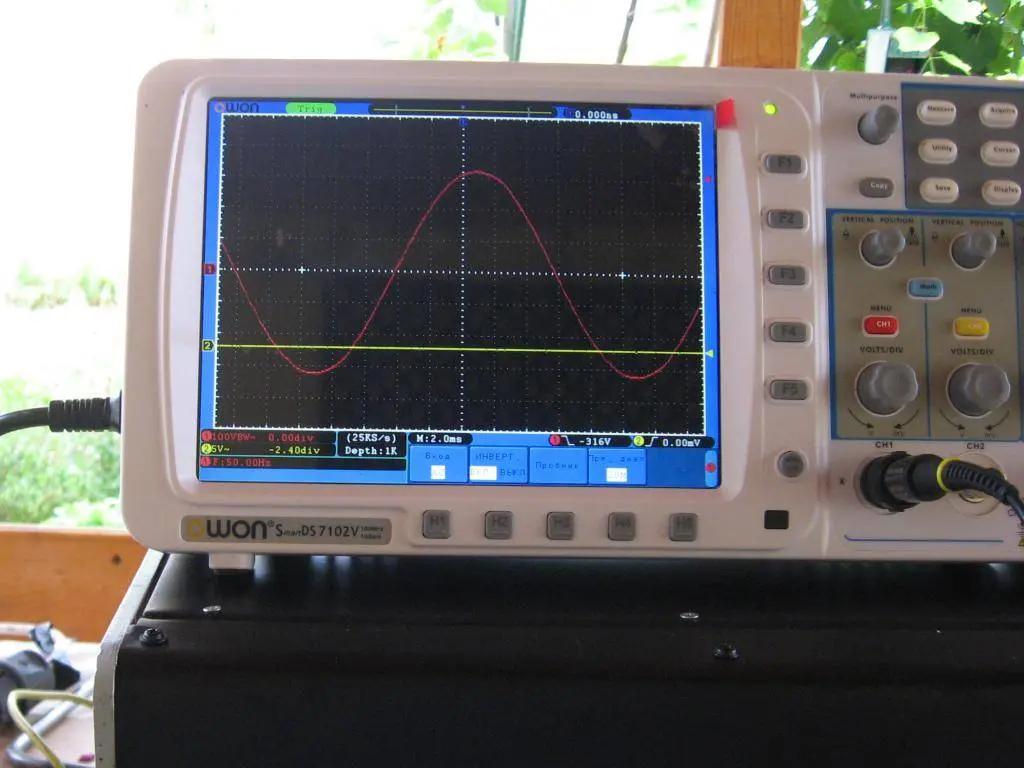

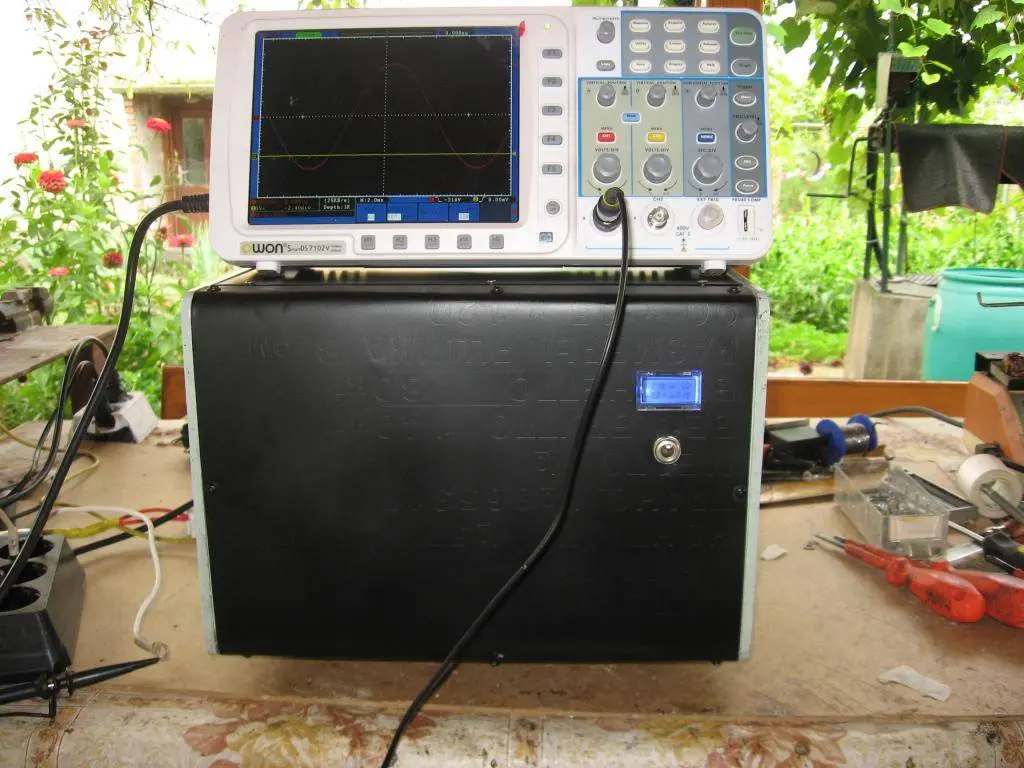

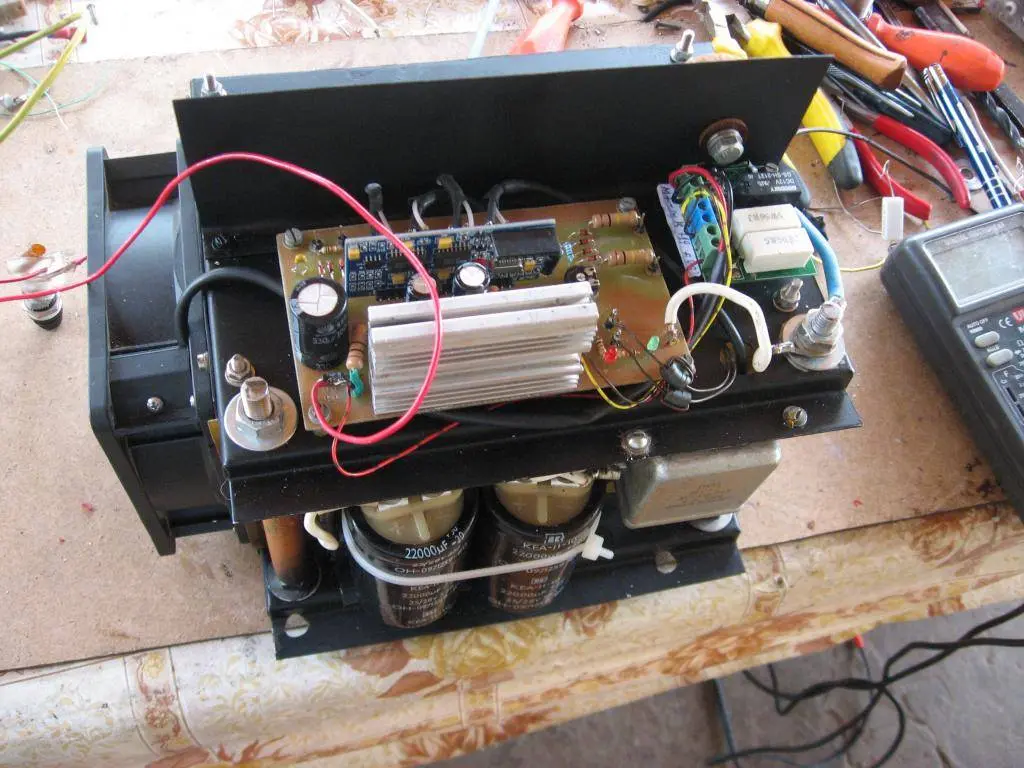

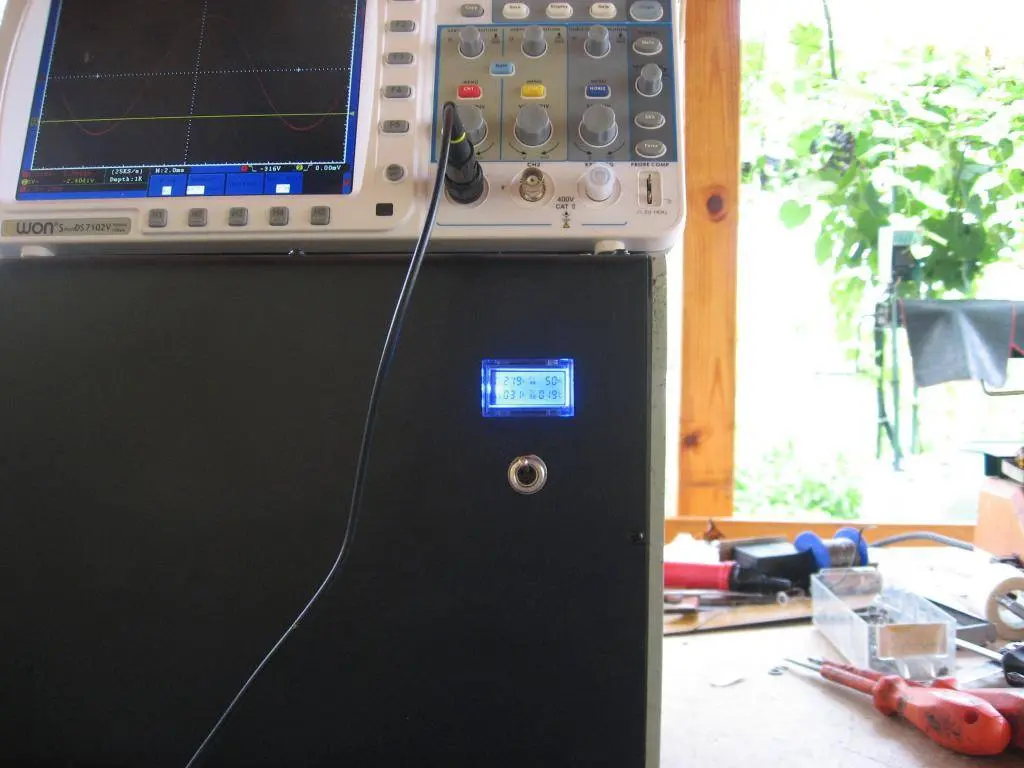

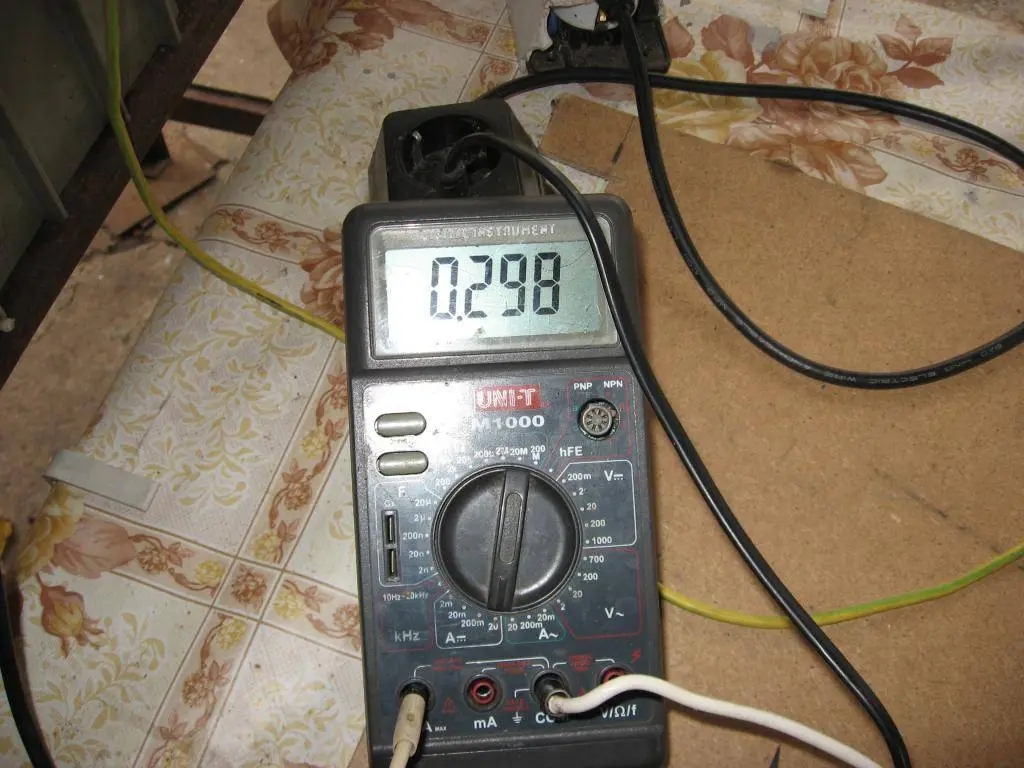

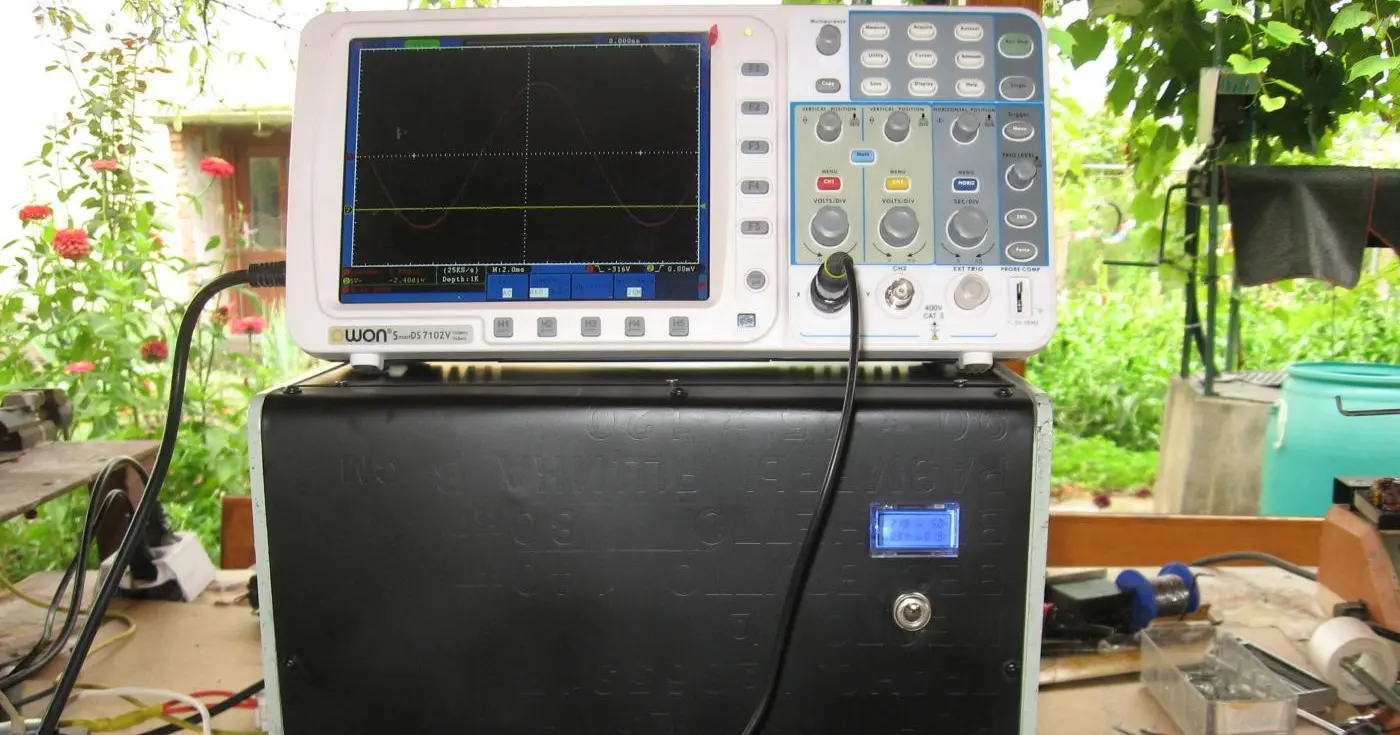

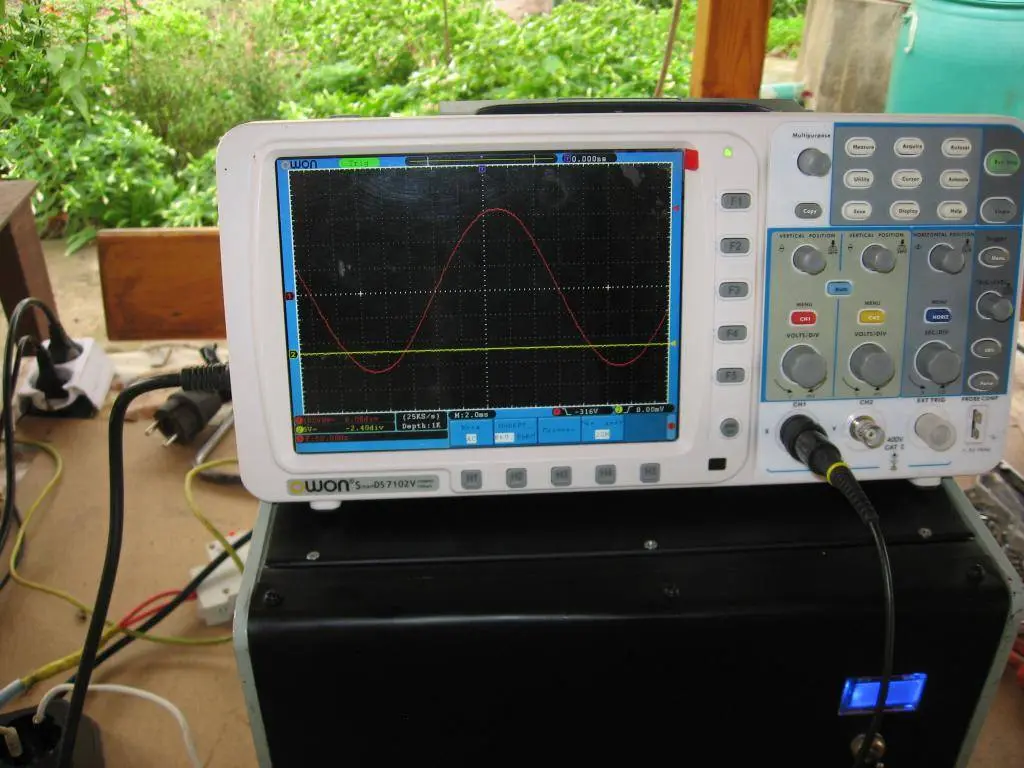

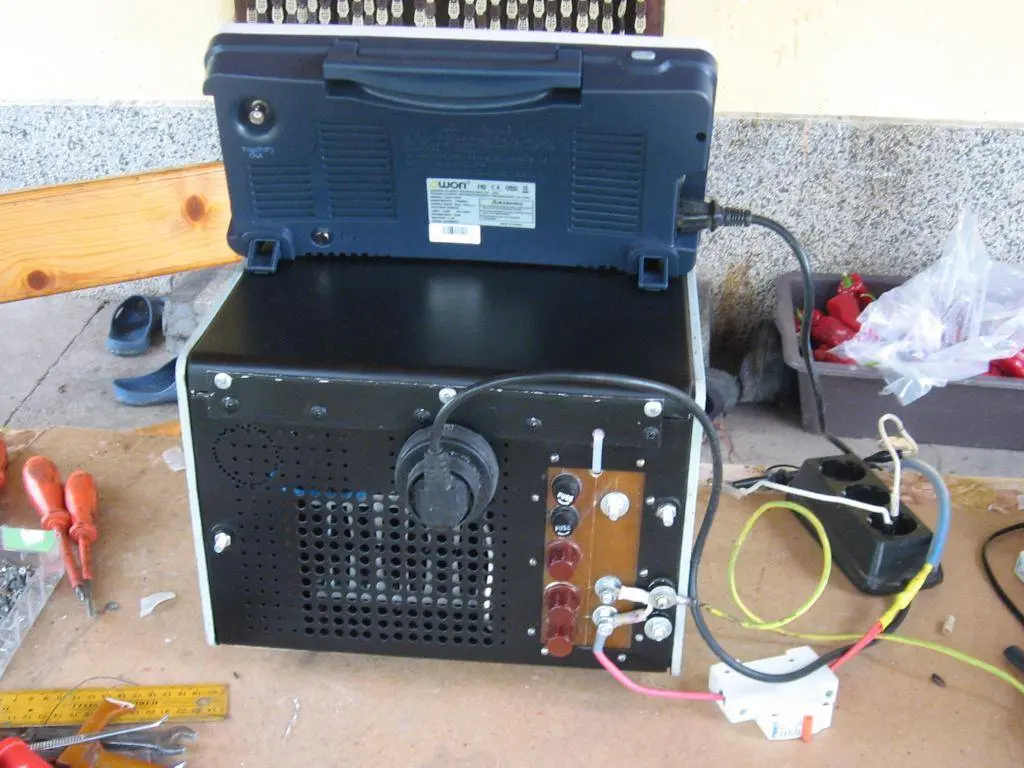

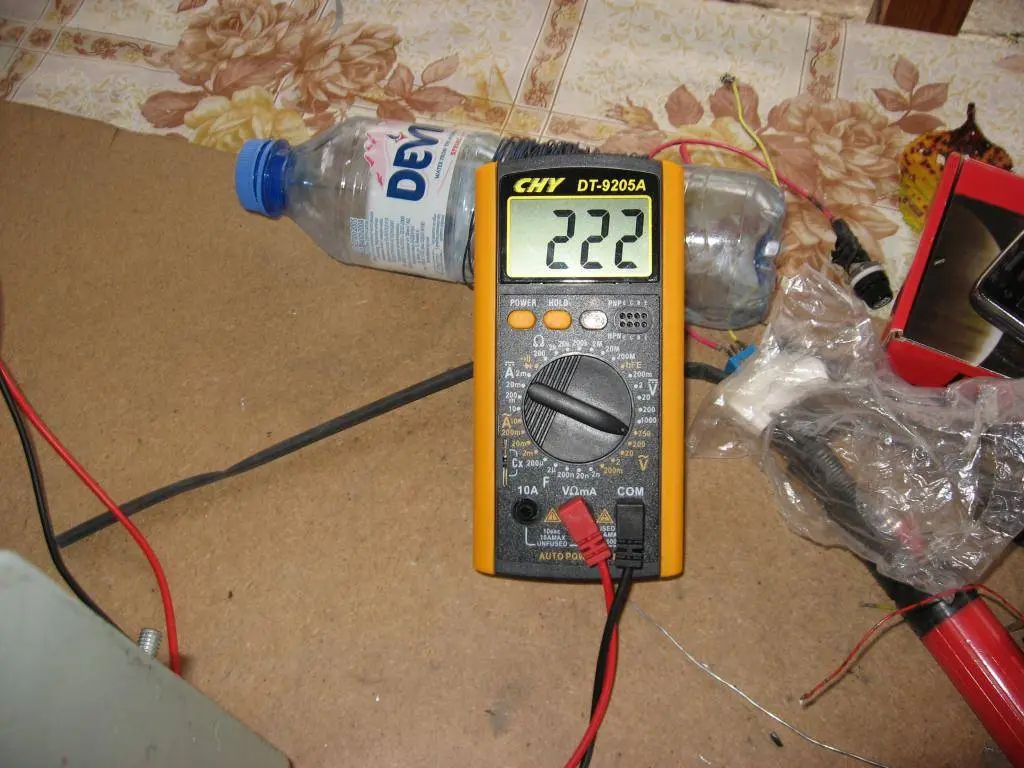

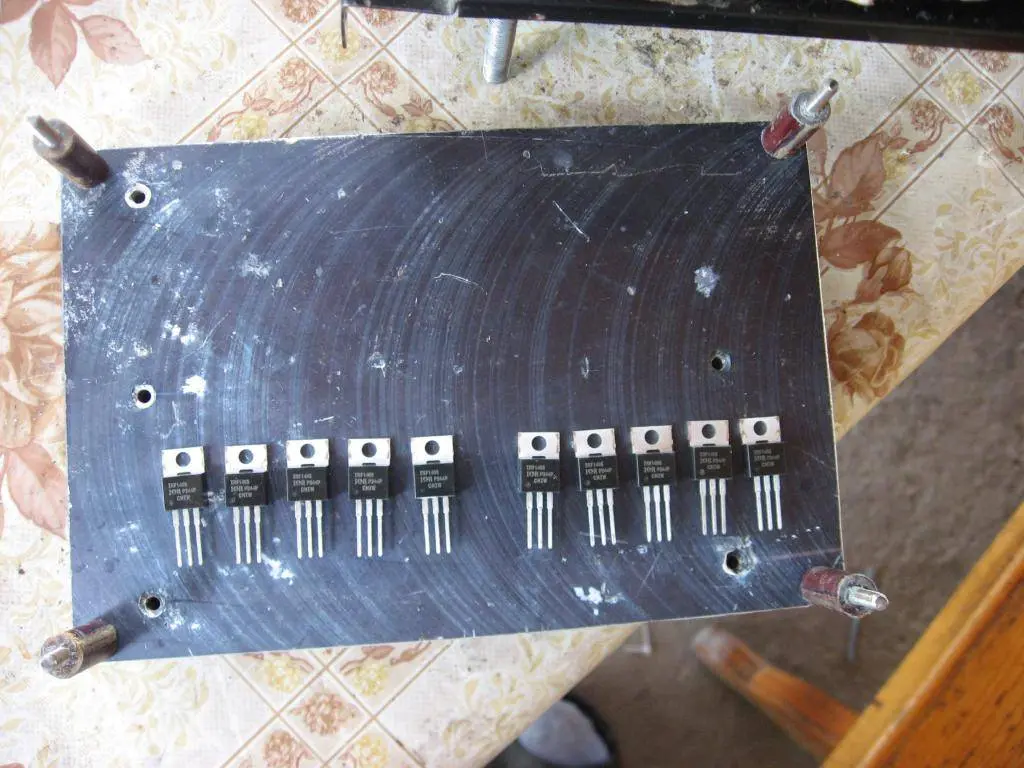

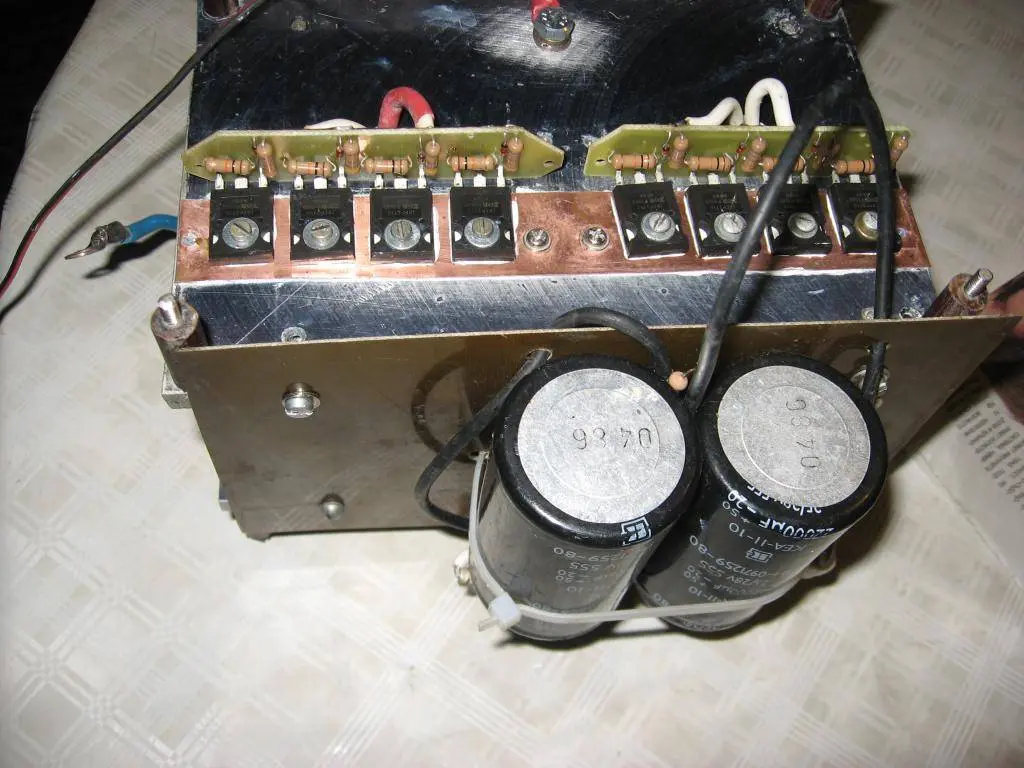

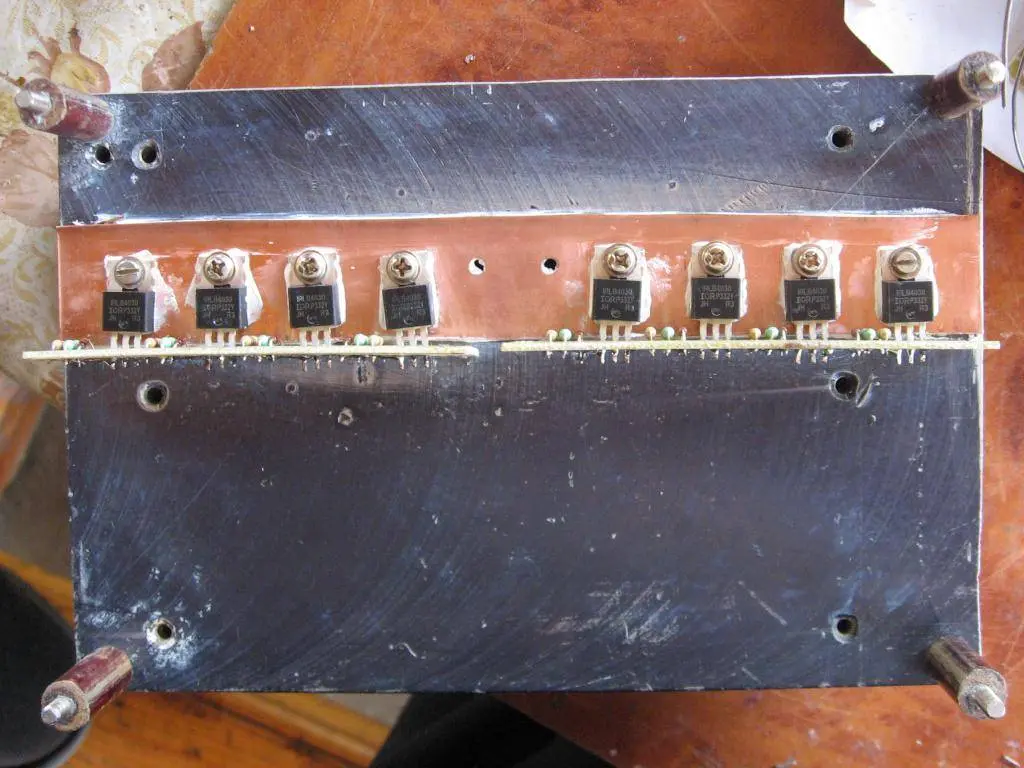

Gallery

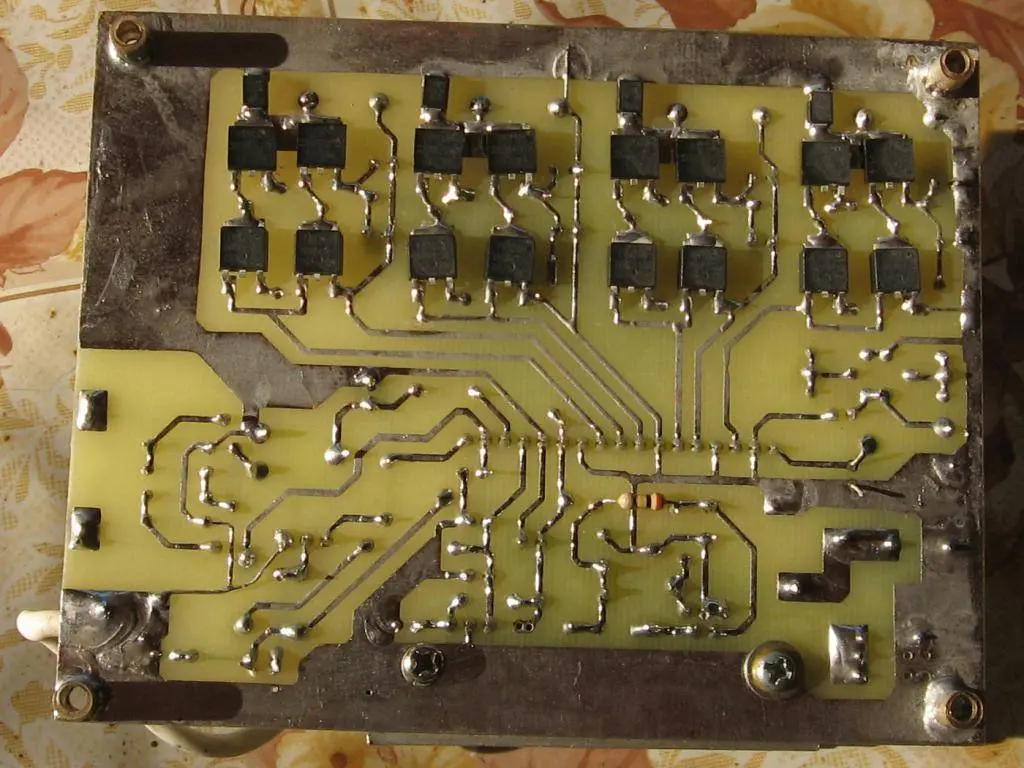

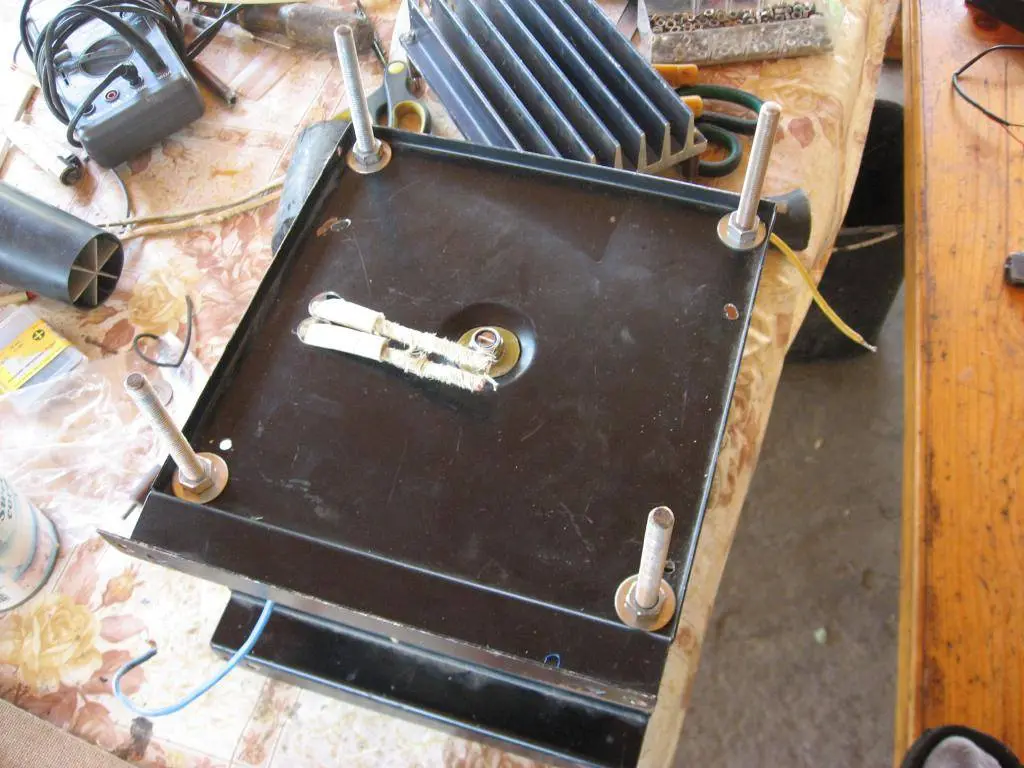

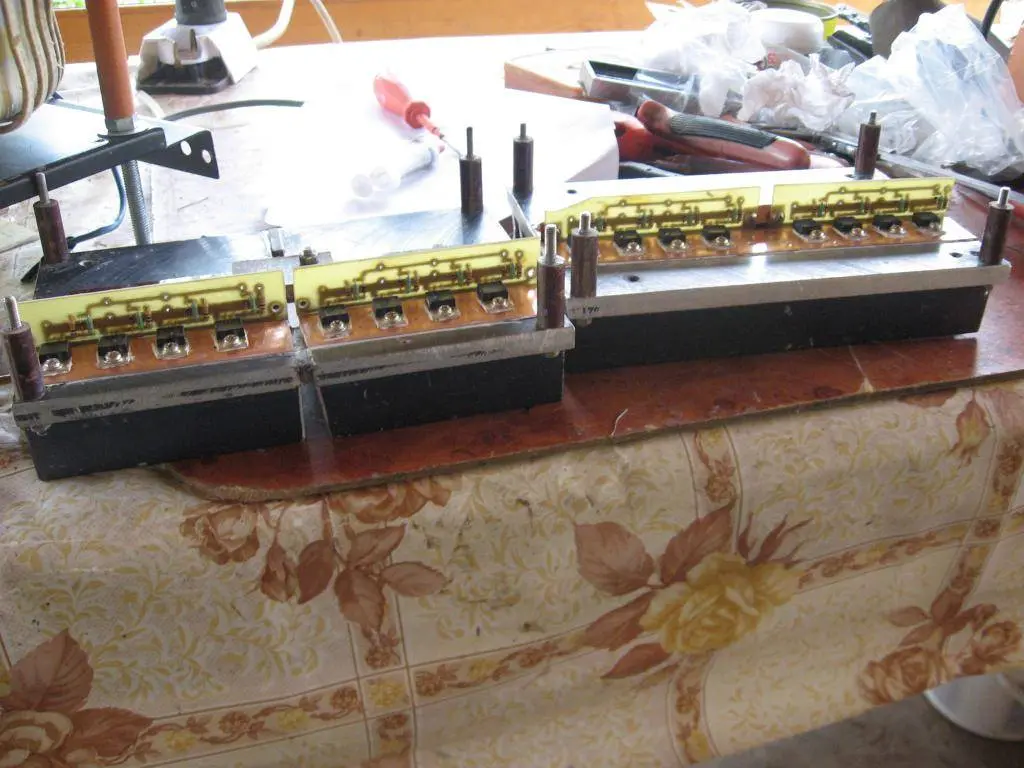

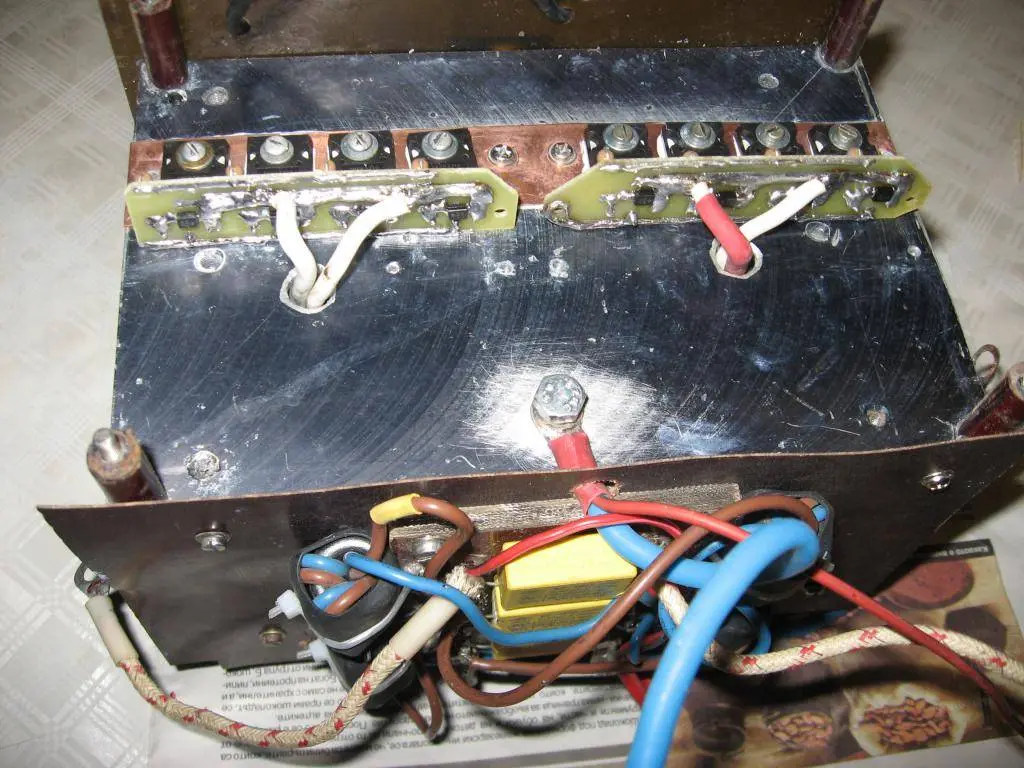

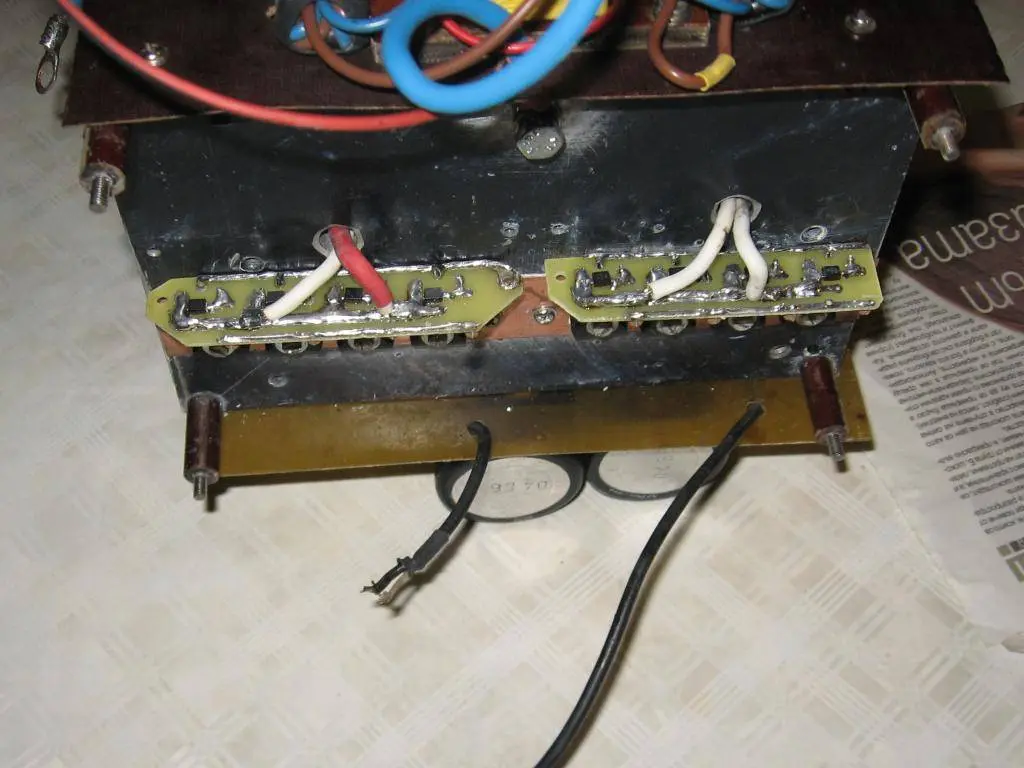

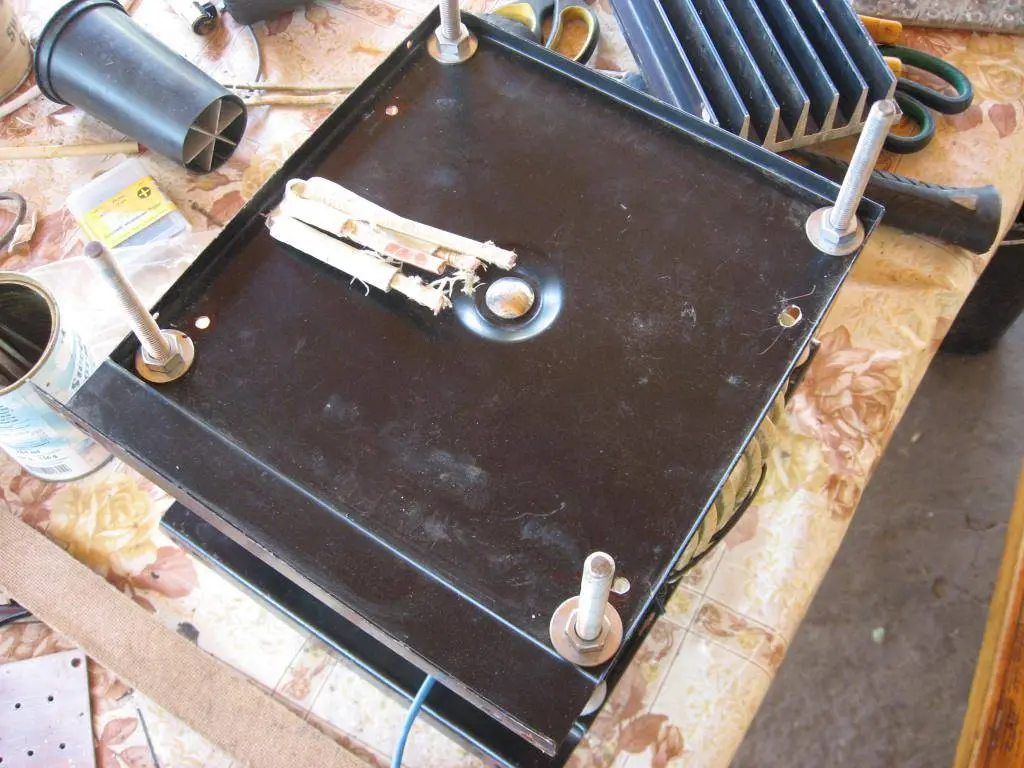

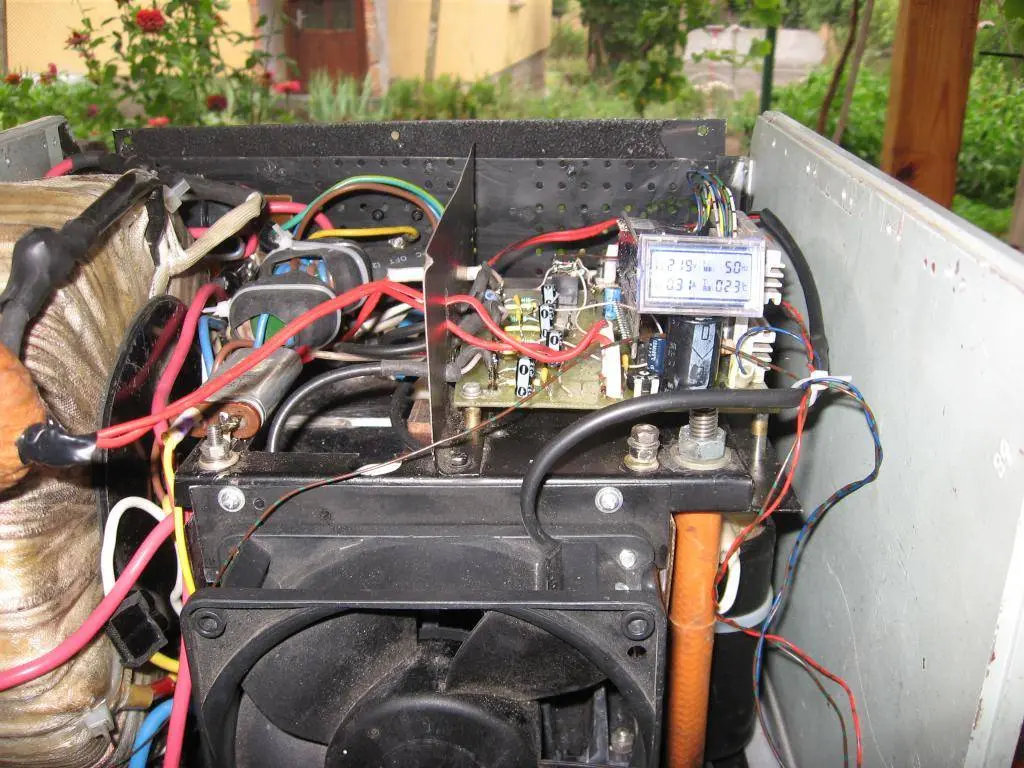

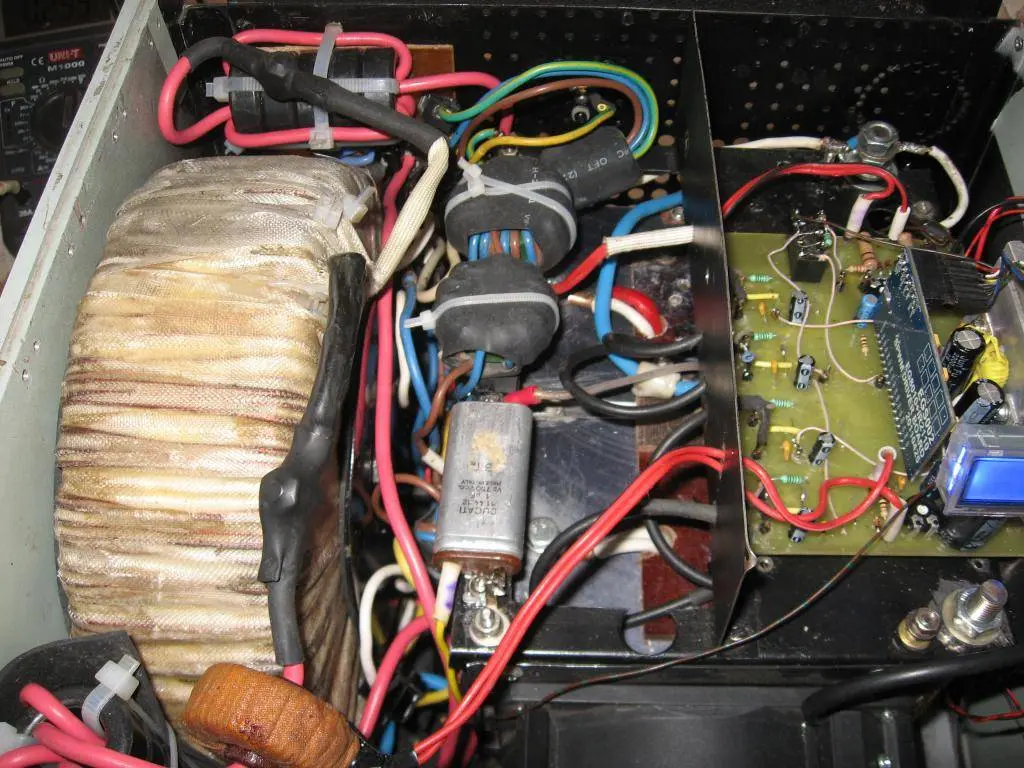

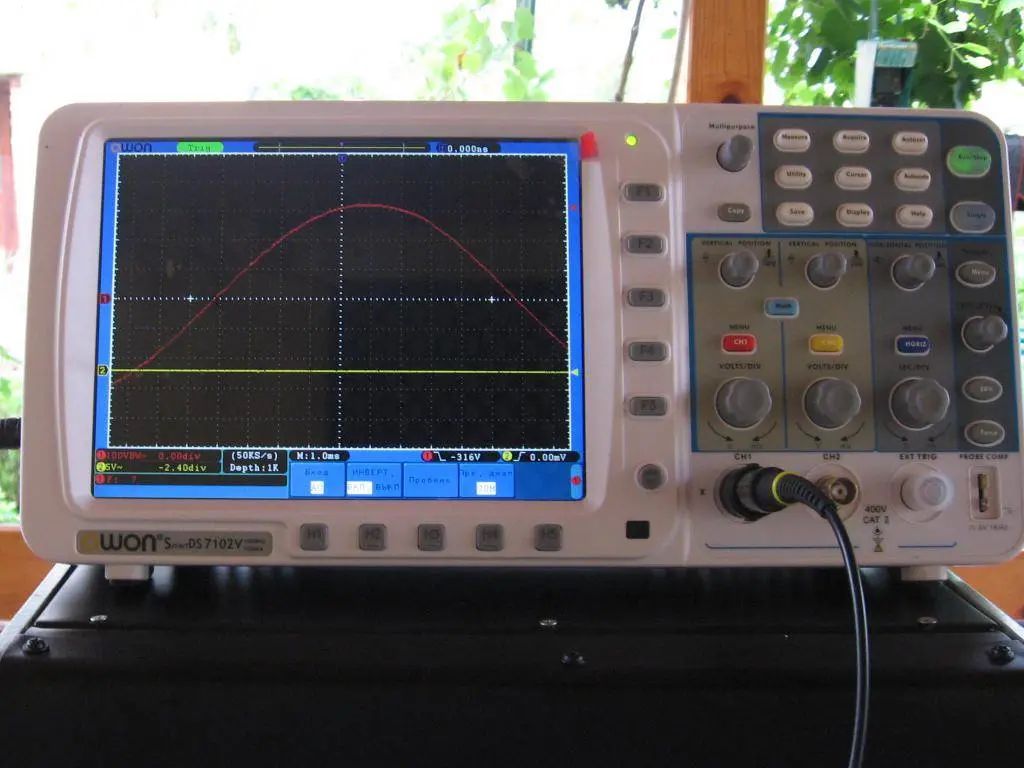

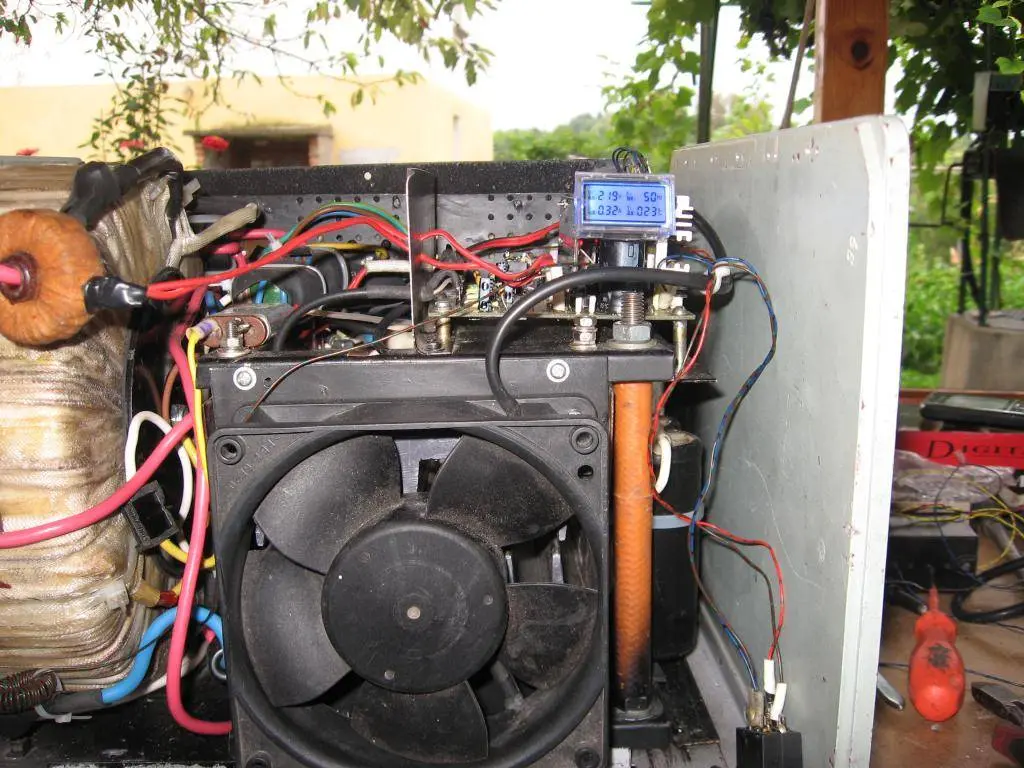

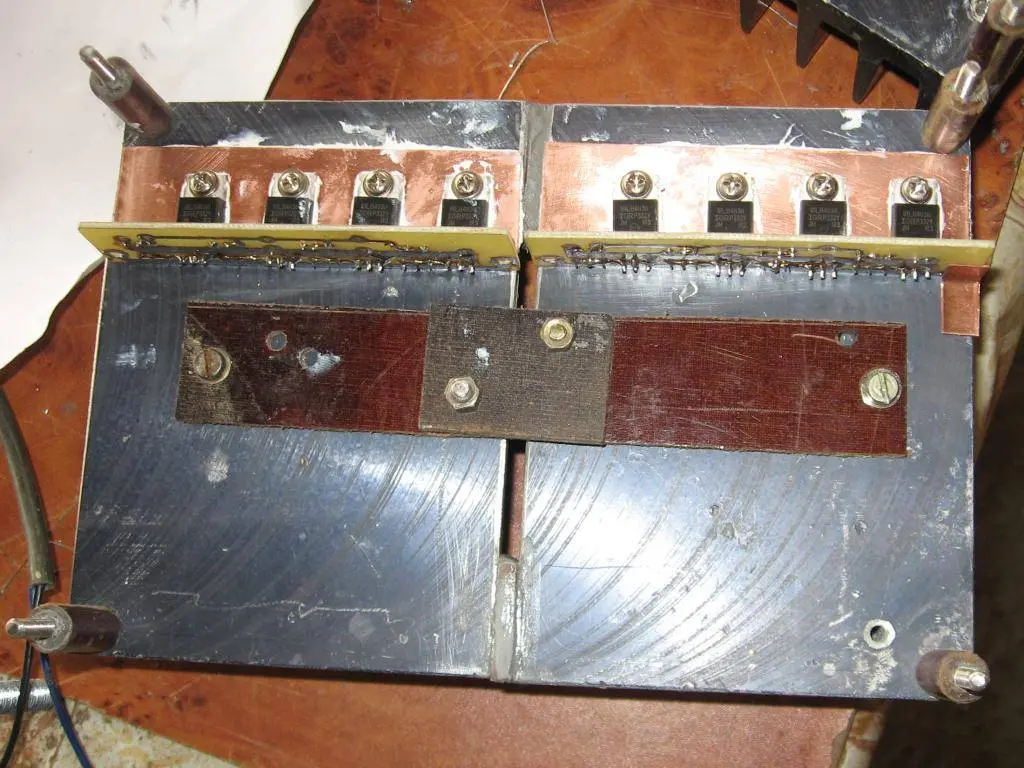

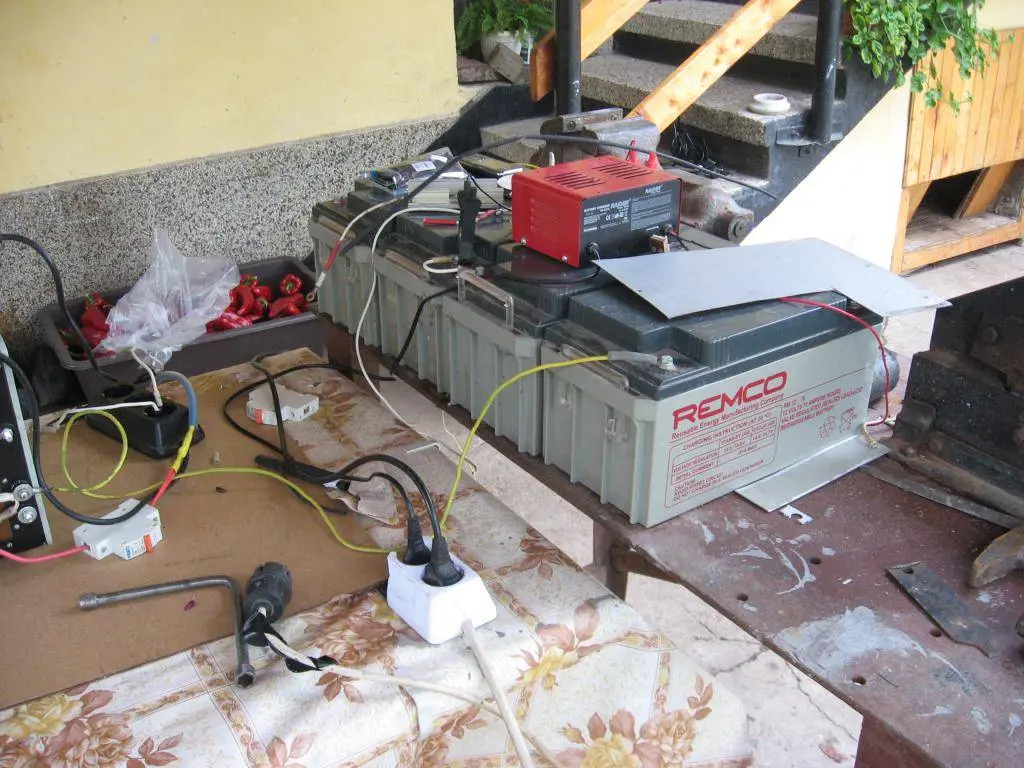

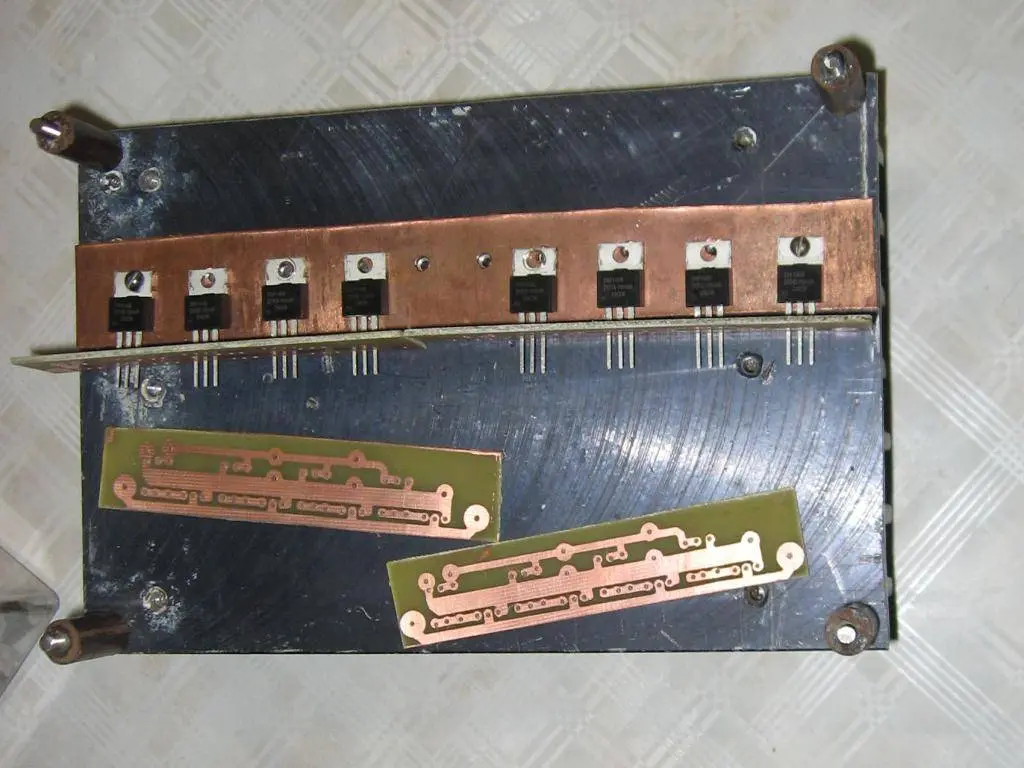

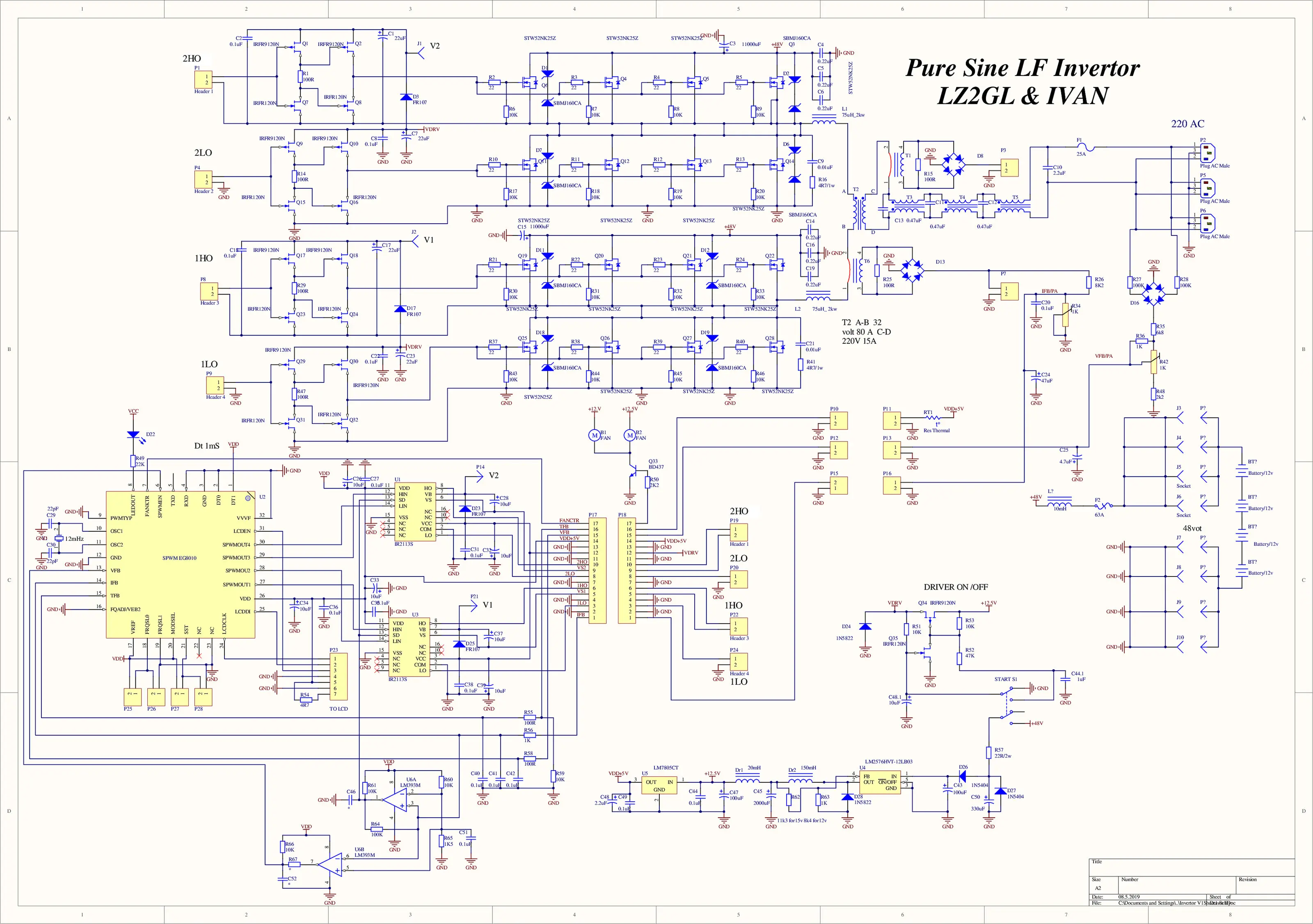

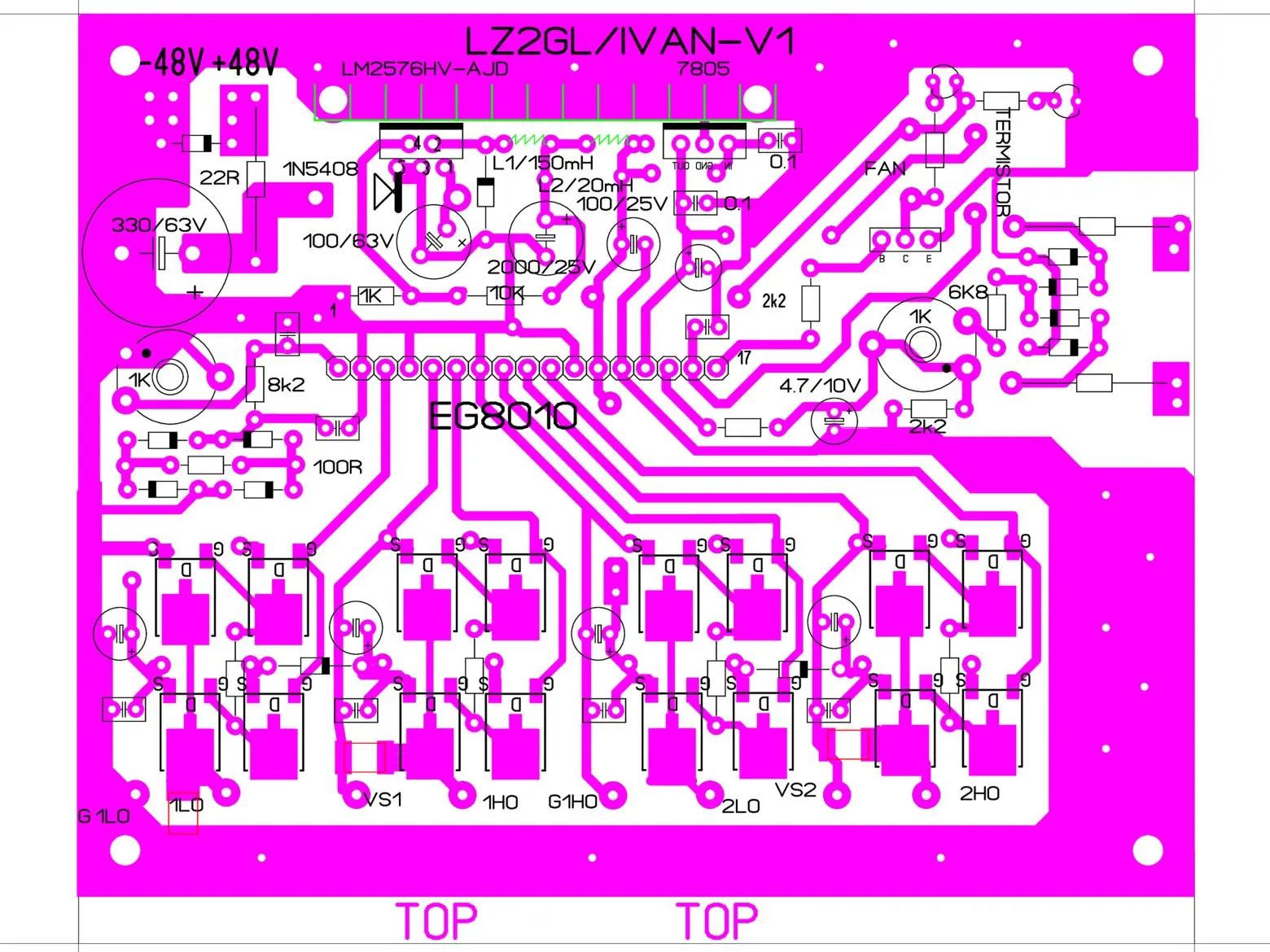

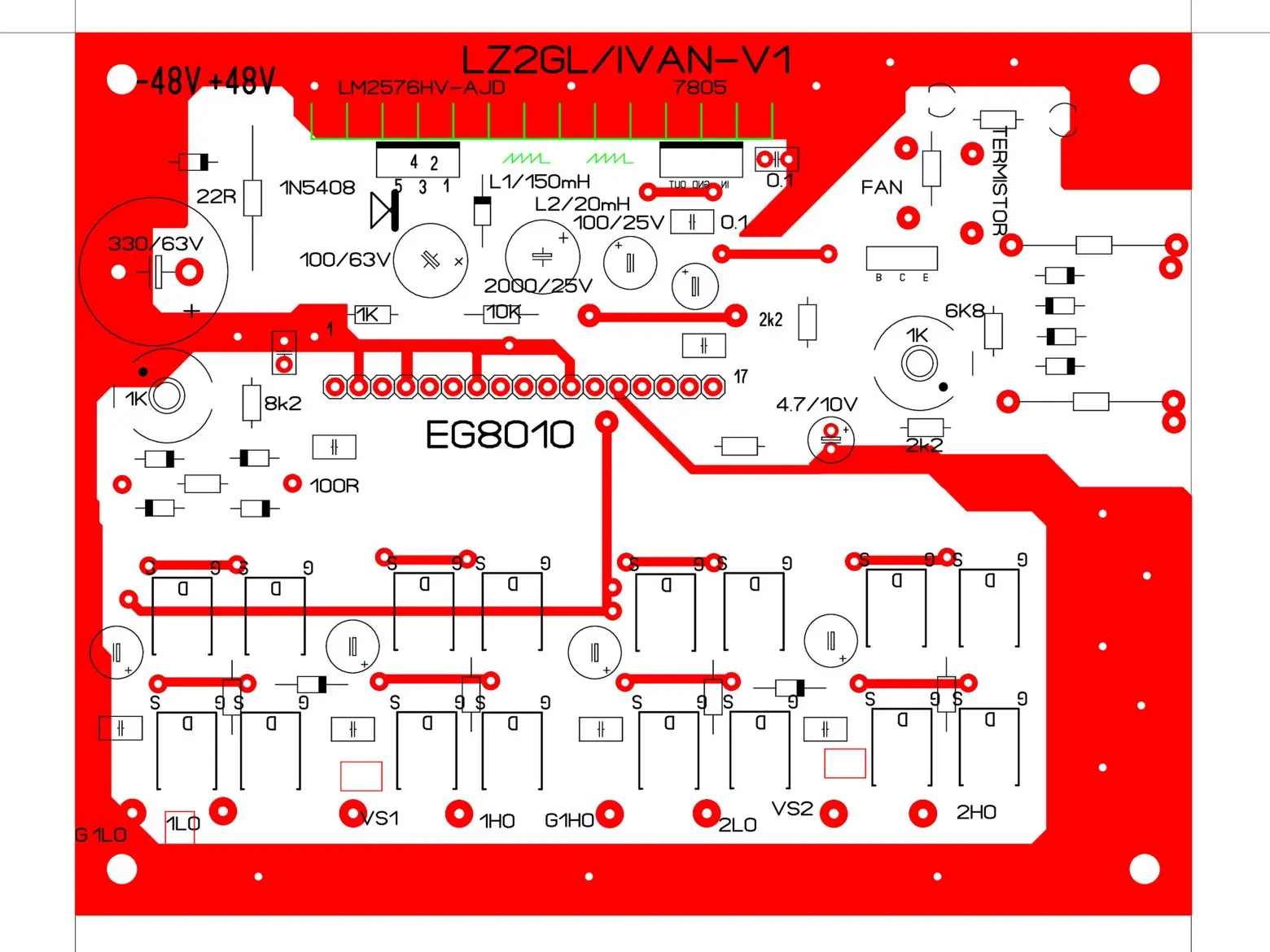

Schematics
( as PDF)
( as PDF)
( as PDF)
( as PDF)
Description

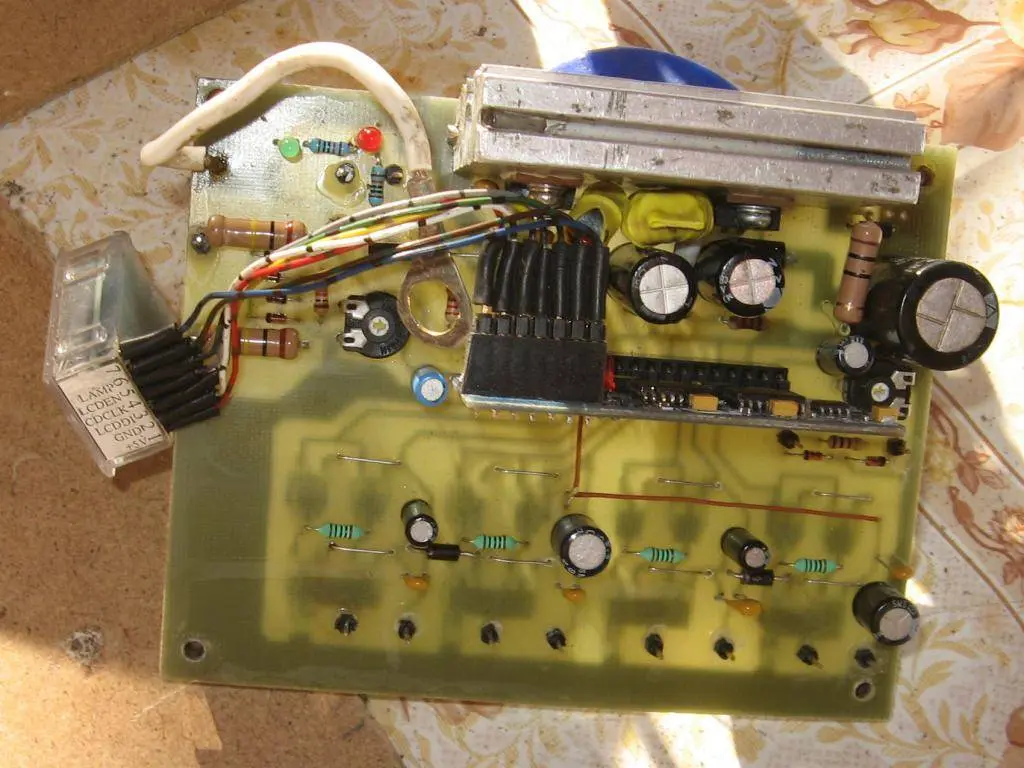

We are using SPWM EG8010 as driver board that can be ordered from here:
Transformers information:
- T1 and T6 are current transformers 50Hz/3kW like this one here: Current Transformers

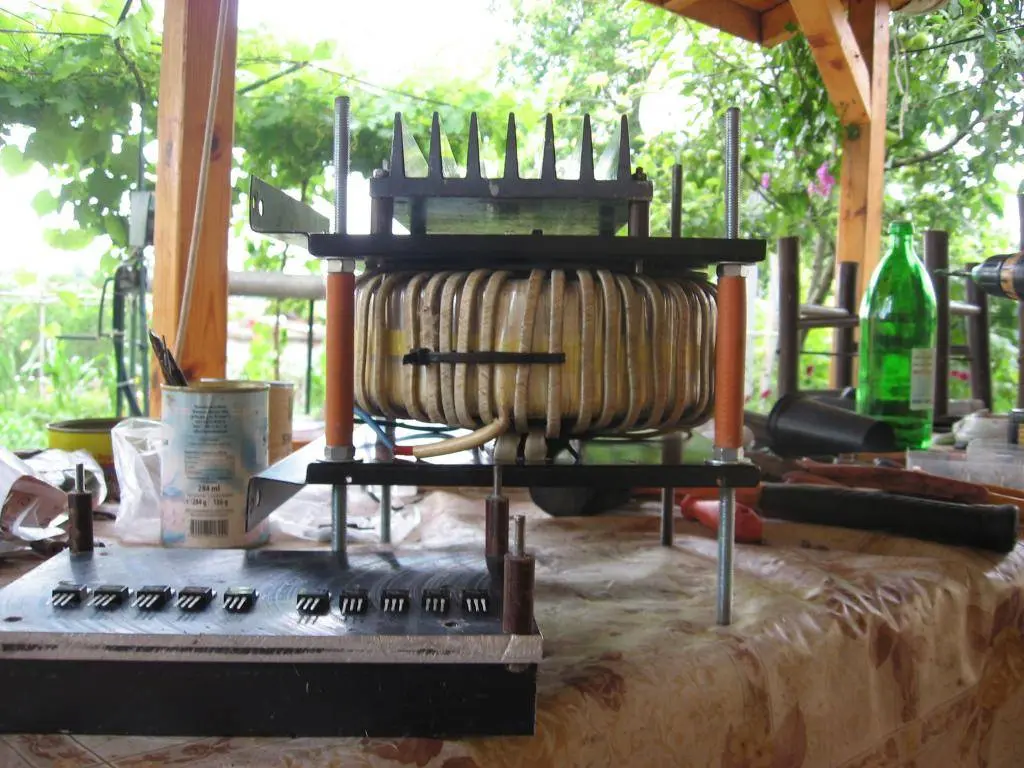

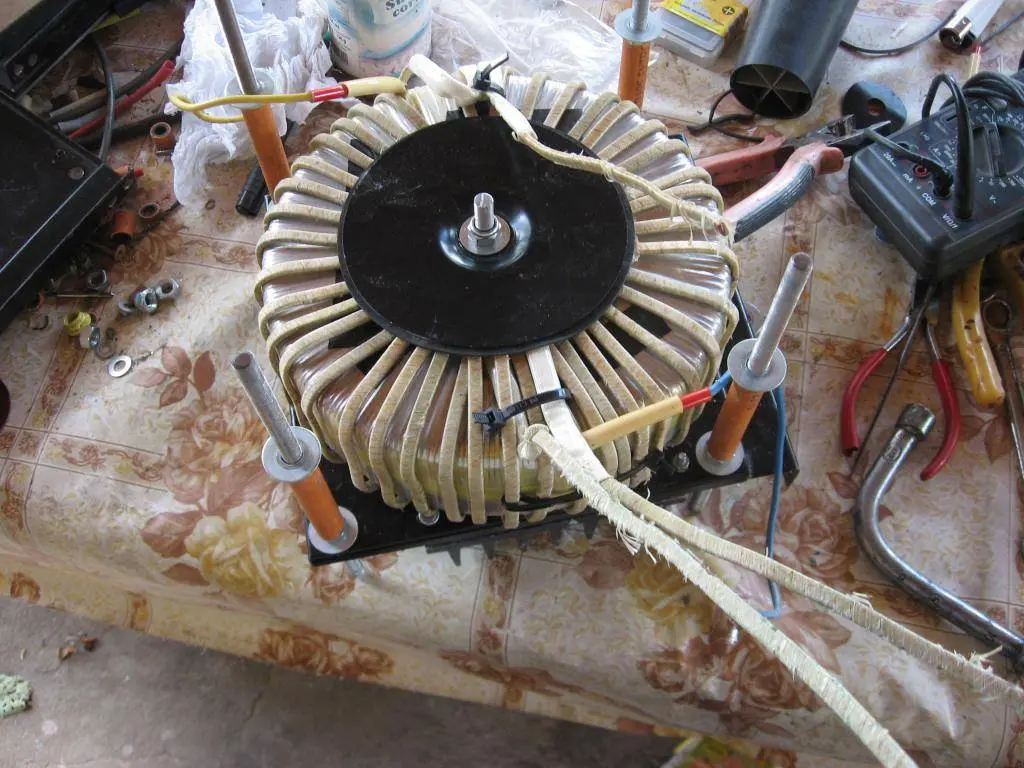

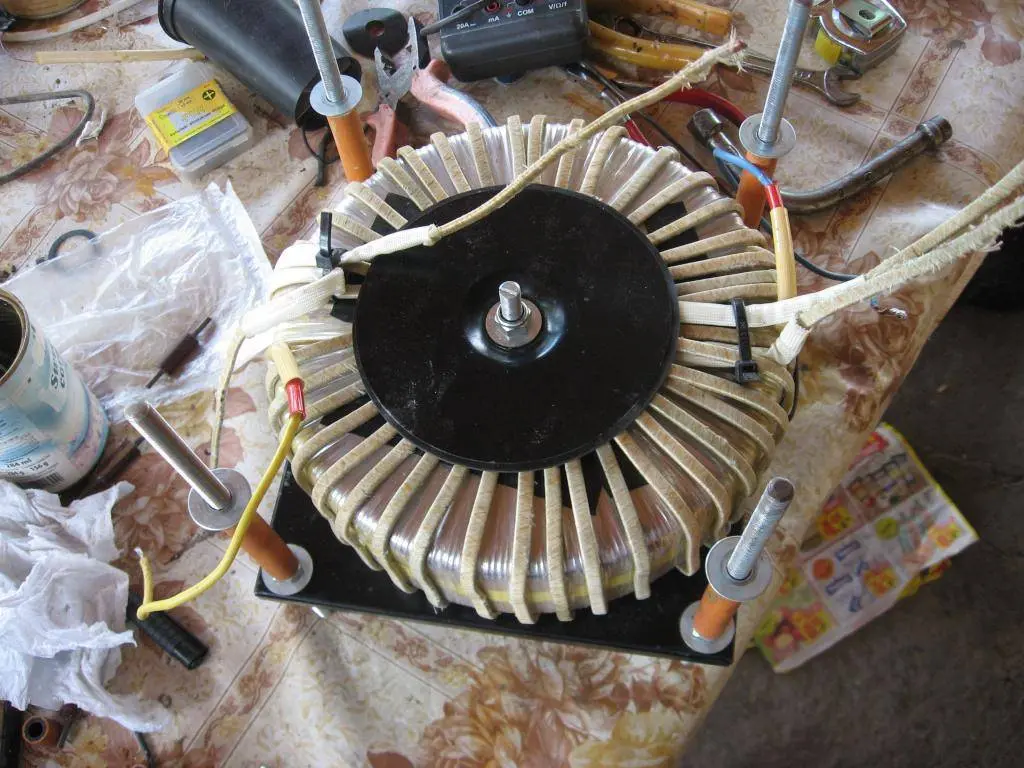

- T2 is the big toroid with params A-B 32V 80A, C-D 220V 15A

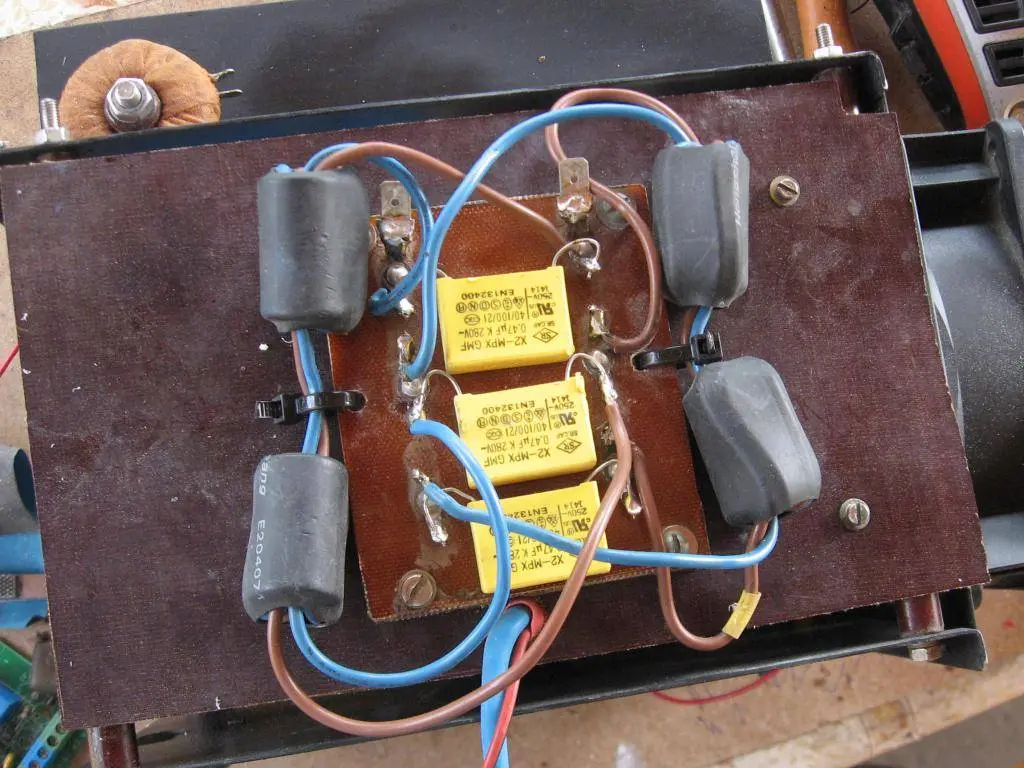

- T3, T4 and T5 are filtering toroids for 23kHz
More info is coming soon…
Parts

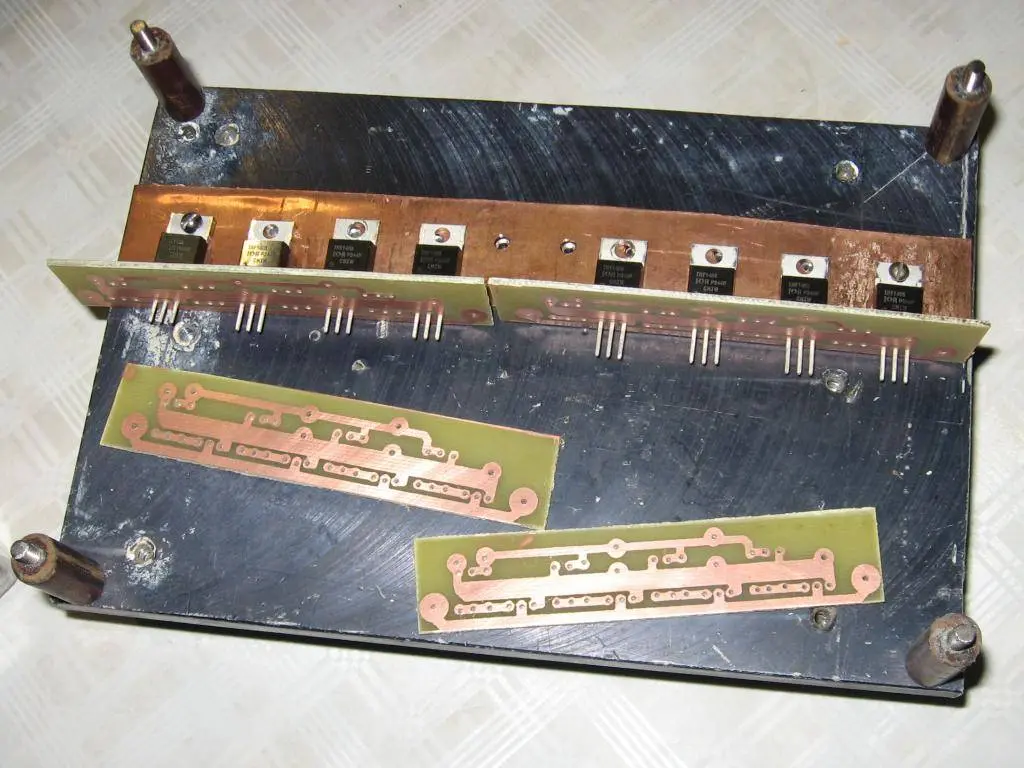

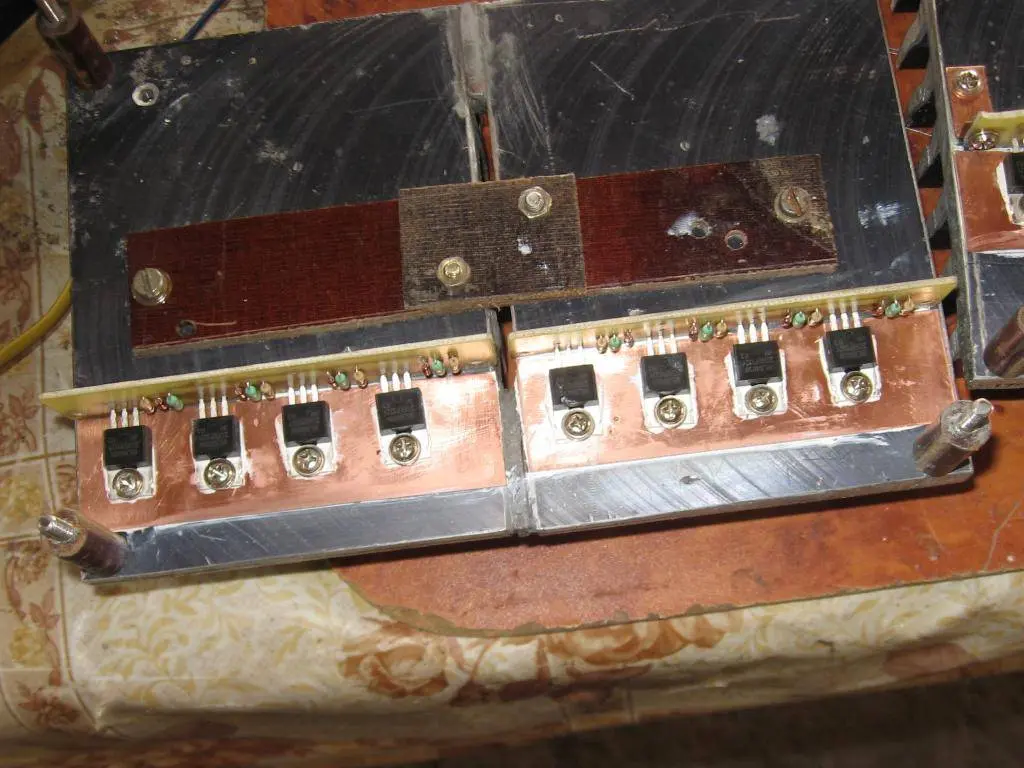

- STW52NK25Z – can be replaced with any other N Channel MOSFET that have at least 200V for drain source voltage:
Thanks for sharing a good schematic of pure sine wave inverter, I want to build this inverter and require following information.
1. Where we connect J1 and J2.
2. Where we connect P3 and P7
3. Specification of T1,T3,T4,T5 and T6
4. Voltage value at VFB/PA and IFB/PA
5. Where we connect P21, V1 and P24 V2
6. In circuit shows 12.5 Volt distribution but we don’t have power supply of 12.5Volts.
Your urgent response is highly appreciated
Regards,
Intizar
Hello Intizar,
Thanks that you appreciate our work!
We updated the schematics so it will answer some of your questions.
Please cleanup your browser cache and try to get the PDF again.
Here are answers to some of your questions:
1. J1 and J2 are connected to P14 and P21 where V1/V2 is labeled.
2. For P3 and P7 will describe them later need to check the working device.
3. For all Tx will add parameters as soon as possible.
4. For the voltage values of VFB/IFB these are connected to the EG8010 board will describe them how in details on the page.
5. This is the same as my answer 1.
6. Initially we tested with 15V but now the working device is on 12.5 so please check the updated schematic.
73,
LZ2GL
Hello Dachev,
Thanks for quick reply.
Please recheck the part number SBMG188CA because no data sheet available on net also recheck the value of inductor 75mH_ 2kw (milli hennery) in my opinion it is too big.
STW52NK25Z not available in my country can you suggest similar replacement.
Regards,
Intizar
The correct part number is SMBJ160CA the schematic is fixed.
We added possible analogs of the N MOSFET check the Parts section.
About the inductor you are right it’s value should be 75uH.

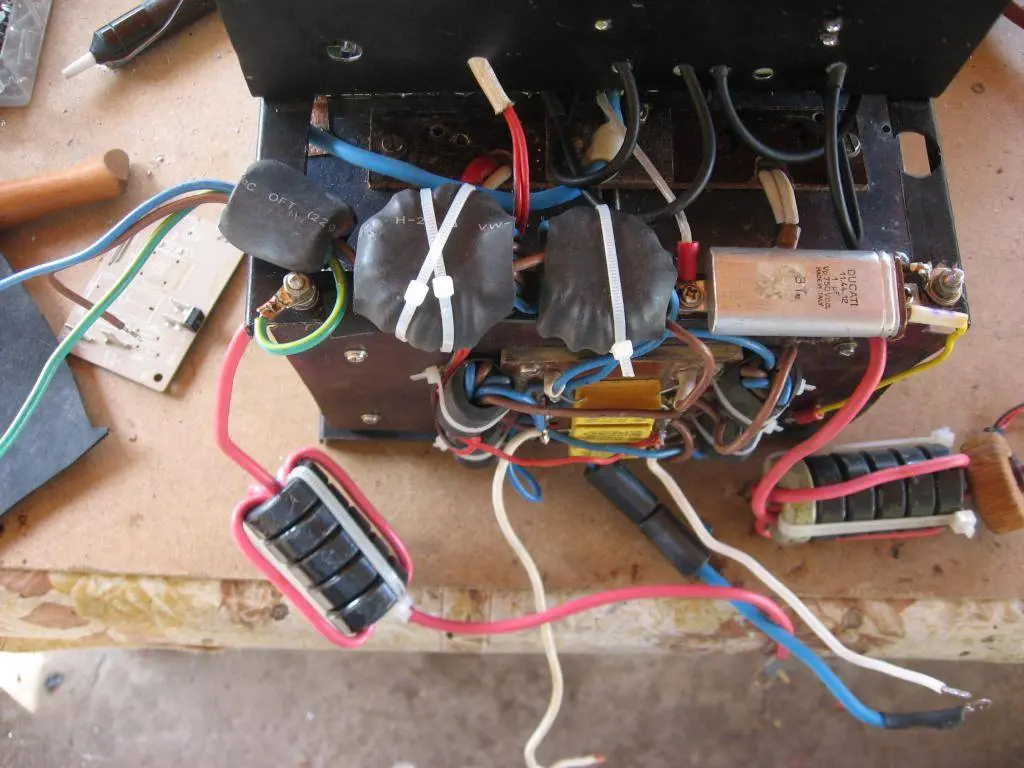

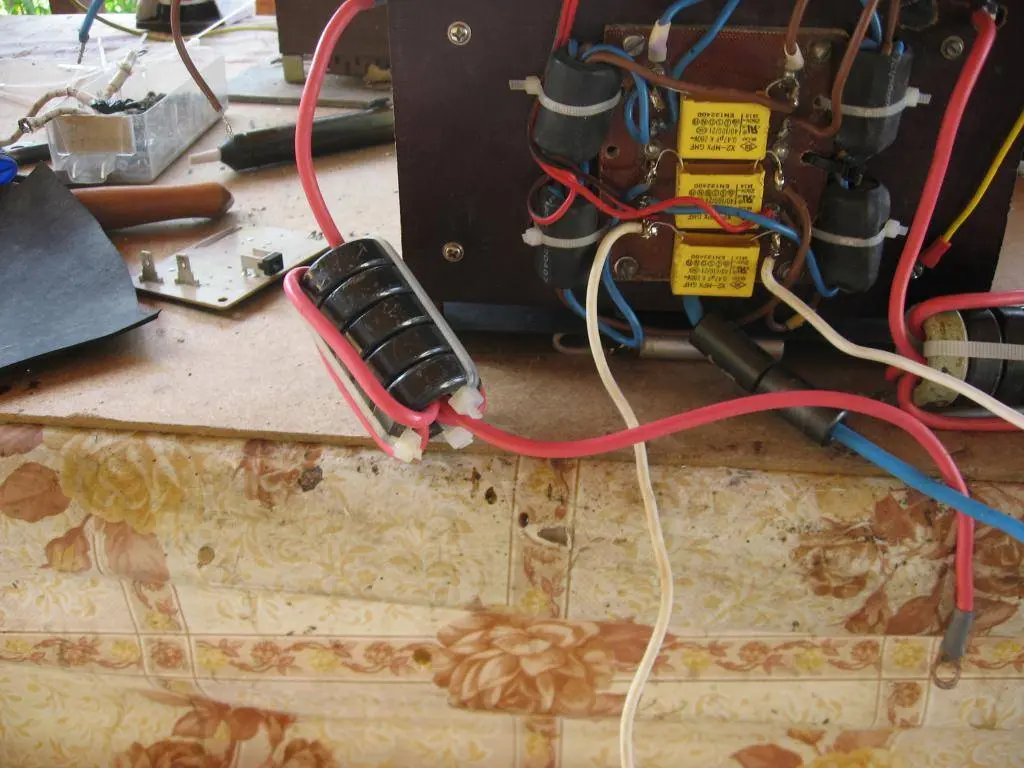

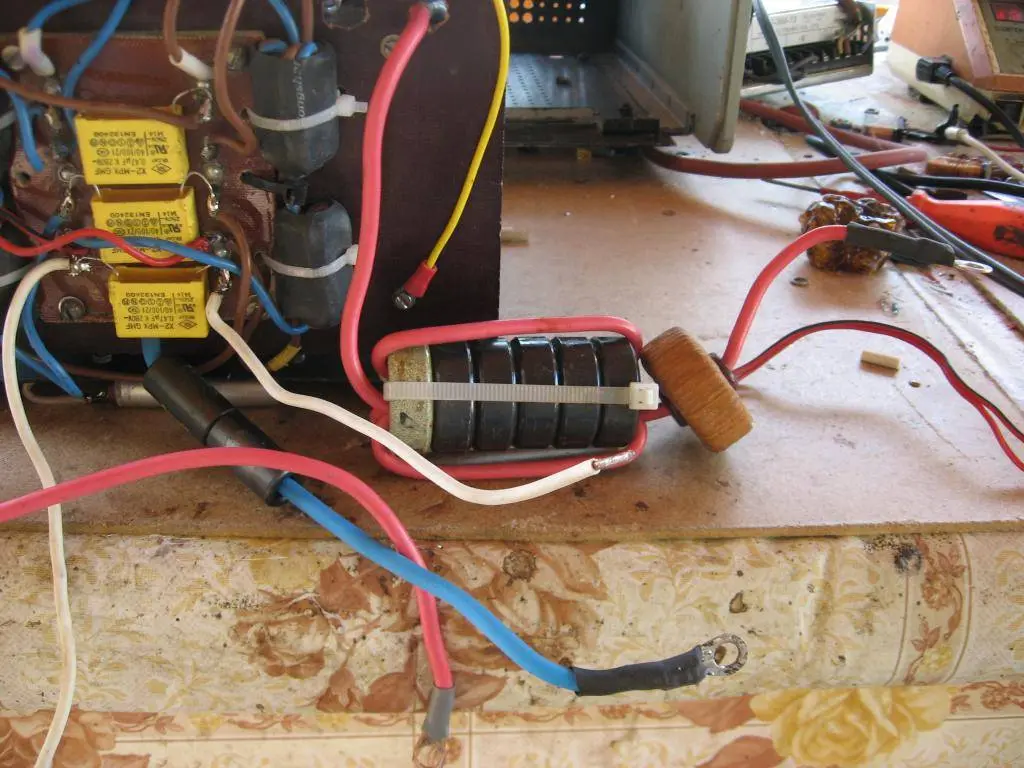

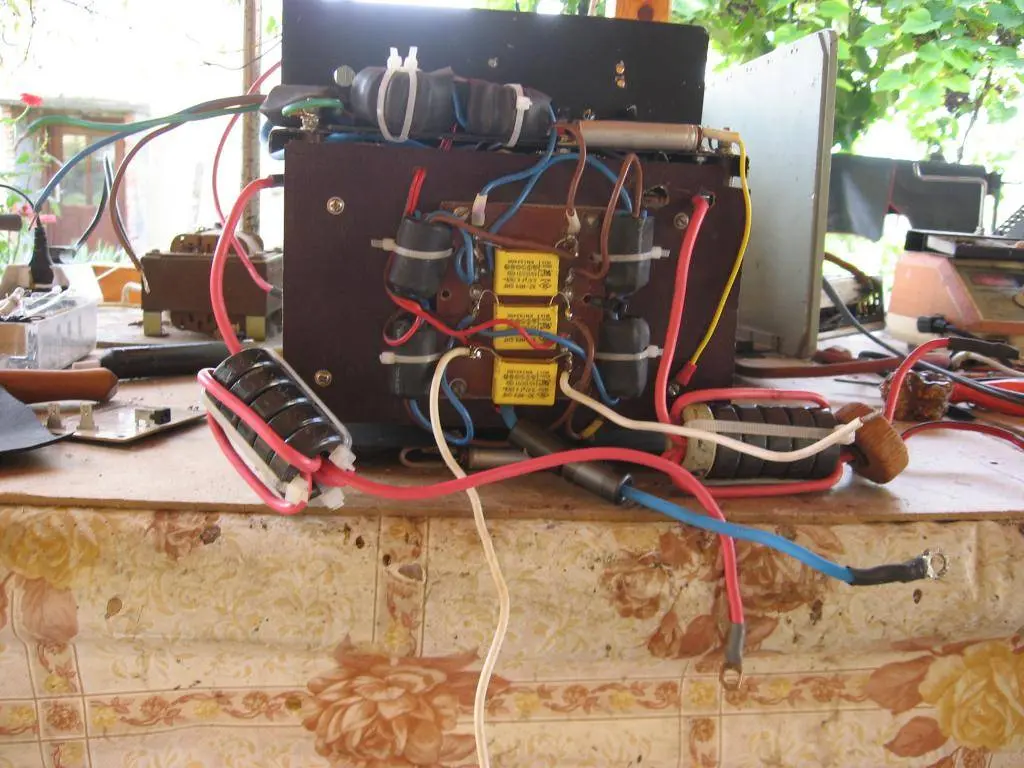

These are the big ferrits with 3 red turns shown here:
https://www.lz2gl.com/wp-content/uploads/2015/06/power-invertor-3kw-c4.jpg
Hi, am building inverter based on eg8010 board, but charger will be included, I want to drive the low side FETs with 25khz simuteanously with a duty of 7% , and the upper side FETs will act as a fast diodes, do you have any idea on how the dual mode inverter will be implemented with eg8010. Thanks
We too plan to add charger and soon will update the schematics and info about that.
73,
LZ2GL
Thanks for your show of circuit. Your design is very helpful to me and others like designing puresine inverter
Thanks for your kind words.
Hello Mr. , nice work.
I am building a low power inverter but because my wrong +5V pin connector (EGS002) was supplied with +12V and the board don´t work now.
The board (microprocessor) was damaged?
Thanks.
Sandro
Hello Sandro,
Most probably you burn out the EGS002 so you should get new board.
Just in case check the board chips after supplying with correct voltage and see if there is some anomalies on the expected outputs.
73,
LZ2GL
Thank you.
Hello Mr.Georgi Dachev
I am from Indonesian. good job , your work is very nice for me
Do you want to help me, where i can buy this modul in my country
, because it is new god product.
Thanks for all
Hello Mbahdi,
Thanks for the kind words.
I would suggest to check for the module at AliExpress:
http://www.aliexpress.com/wholesale?SearchText=EG8010
I think they can deliver this to anywhere in the world.
73,
LZ2GL
Tanks, I will order the stuff, I did hobbyist electronic circuit, o yes ..I am happy friends with you, one day if interested visit to Bali or Jakarta, we will be happy to welcome you
Thanks for your great inverter, what about the transformer details
who to winding for 1500w , 2000w ,3000w.
Thanks
I’am having problem for transformer inverter.:(
We updated the description section with transformers parameters.
very nice diagram i like this
GOOD DAY
I NEED HELP REGARDING THE FOLLOWING RATING FOR A 3KW INVERTER
1.TRANSFORMER WINDING INFORMATION FOR T1,T2,T3,T4,T5
THANK YOU
Check them in the description section above.
How do I get the code for the pic in use?
Thanks great work.
There is no any software written here from us here.
You need to buy the board EGS002, check the links in the description above.
Can your design deal with higher frequency outputs? Let’s say some KHz instead of the 50Hz or 60Hz? The advantage would be that one can use a smaller transformer (ferrite core) but on the other hand, the first output would have to be rectified and the oscillated again to the desired frequency. Or maybe we can use some smart divider circuit there? It would have to deal with 200 – 300 Volts. Any ideas?
Yes that is interesting idea.
Hi, I want design transformer for inverter power 1500VA,you can help me.thanks you.
Thank you for the great effort. Looks very good and I intend to build it. Did you manage to update the circuit with a charger? If yes could you please upload 🙂
OR could any one tell me where I can get a cct with a charger included?
Thanks all.
Not yet but will work to do that soon.
Dear Friend,
Thanks for your sharing.
Can you detail for T6?
Check the description section we added the missing info.
Hi to all
I’m an italian hobbyst.
Thanks for sharing a good schematic of pure sine wave inverter and it looks very good and I intend to build it.
But i need some explanation:
1)Specification of T1,T3,T4,T5,T6
2)how to connect J1 and J2 with P14 and P21 (V1-V2), i intend with a fly wire?
3)The voltage value at VFB/PA and IFB/PA
4)how to connect P3 and P7, or where i connect them?
Your kind reply is highly appreciated.
(Forgive my bad English)
Best regards
Antonino Giordano
how to set this inverter to 60hz?
You should check the EGS002 SPWM Manual, page 3 chapter 3.3 Jumper settings.
There you can switch FS0 – JP1/JP5 for 50Hz/60Hz mode.
73,
LZ2GL
Hello. There is a small print error in the circuit. The 2HO power switches need to be connected to the driver output, between Q2 and Q8. And disconnect from D3.
And the question, on the switch S1 output VCC is 12.5v.?
Thank you.
Thanks for the Q2/Q8 findings we fixed the error in the schematic.
Also yep it is 12.5v the S1 start switch.
Hi,
Great design. Please inform me why P2 Neutral is connected to P5 Live? I take P2, P5 and P6 is the AC Outputs.
Thank you, we fixed the error on the schematic.
Hello. Have you had any problems with this inverter and Surge currents from inductive loads such as a Fridge/Freezer or power tool motor? I have a 2Kw inverter of somewhat similar design with the EGS002, but its quite a bit simpler than yours. When I tried powering an Angle Grinder off it, it blew one of the FET’s, and I am trying to figure out a way to prevent that happening, as the surge loading is too high. Any suggestions? Thank you.

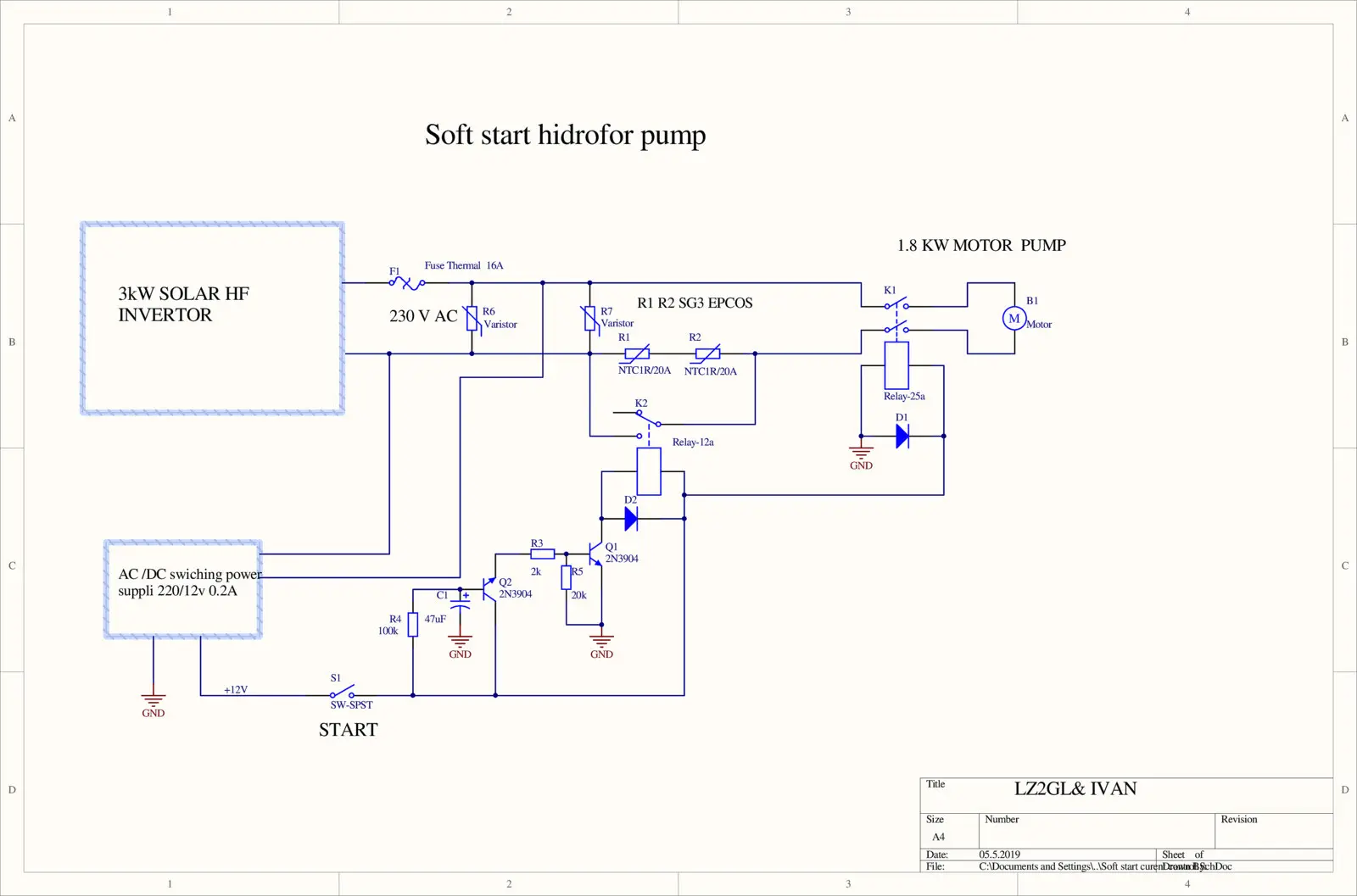

Please check we uploaded a soft start schematic that should be used for such kind of loads pump/motor based devices.
