Analog Power Supply 50V/50A (28V/85A)

Posted Updated

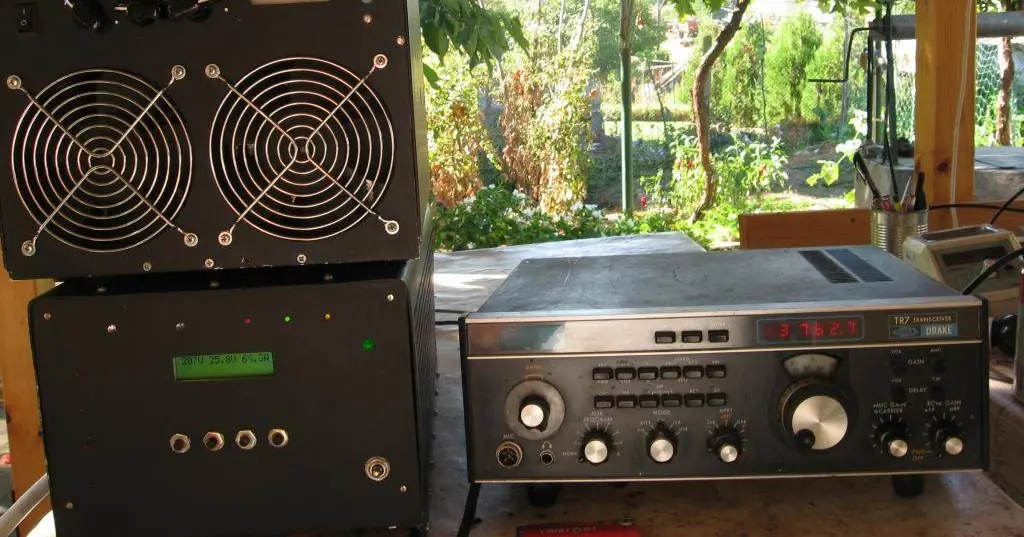

Preview Image
By Georgi Dachev
1 min read
Analog Power Supply 50V/50A (28V/85A)

This project showcases a custom-built analog power supply unit capable of dual-mode operation: 50V/50A or 28V/85A when powered by 220V AC input. The design employs pure analog signal processing for core functionality. A PIC18F2420 microcontroller serves auxiliary functions only, handling parameter display and configurable overload protection settings.

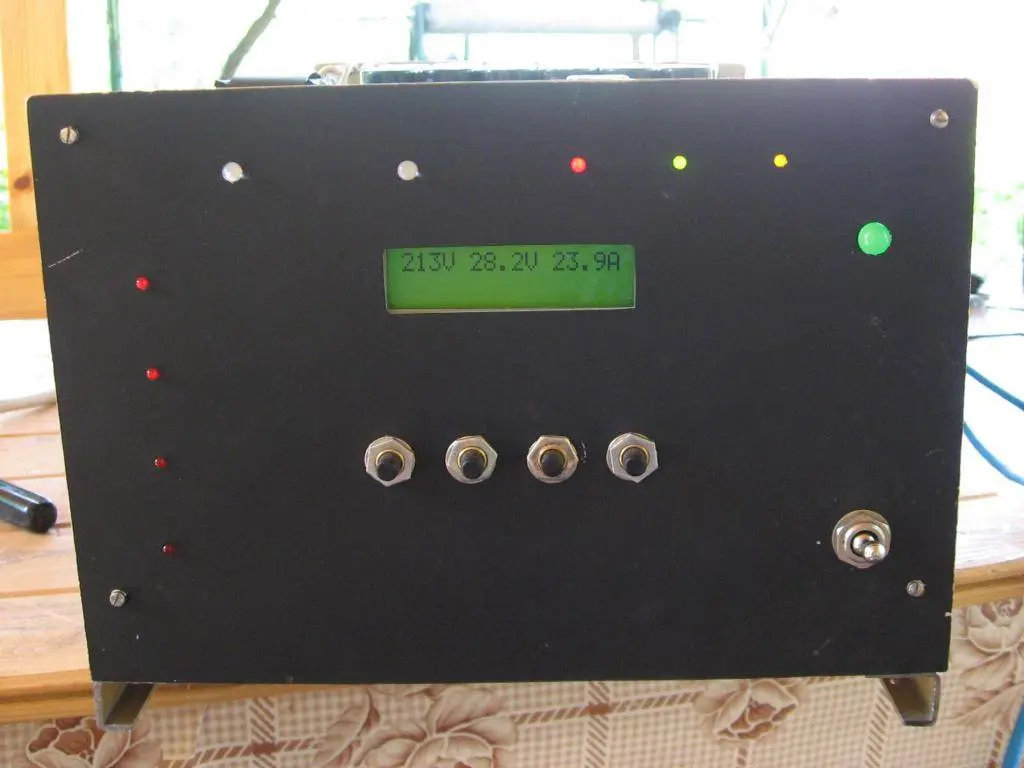

photos/power-supply-analog-a1
photos/power-supply-analog-a2

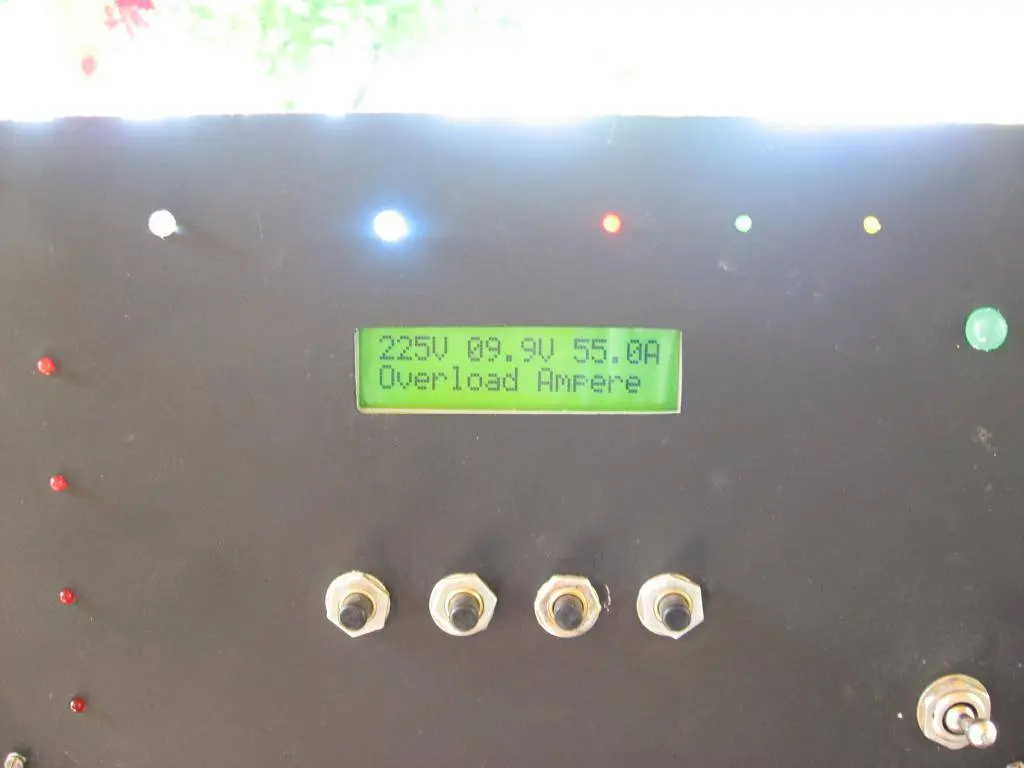

photos/power-supply-analog-a3

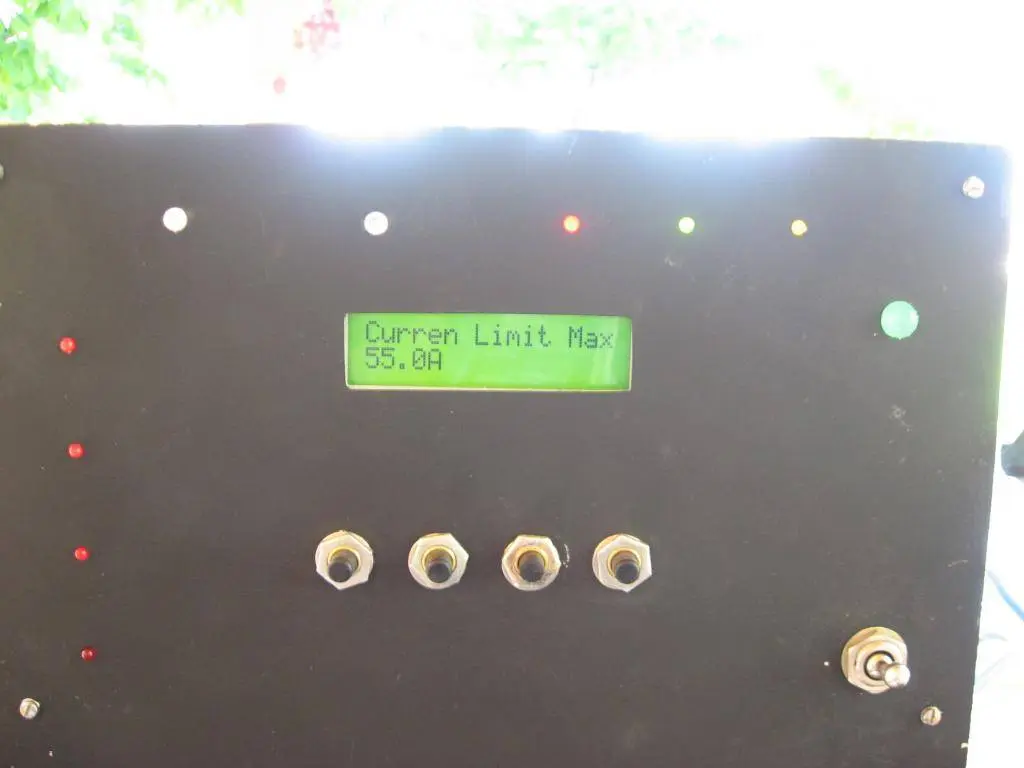

photos/power-supply-analog-a4

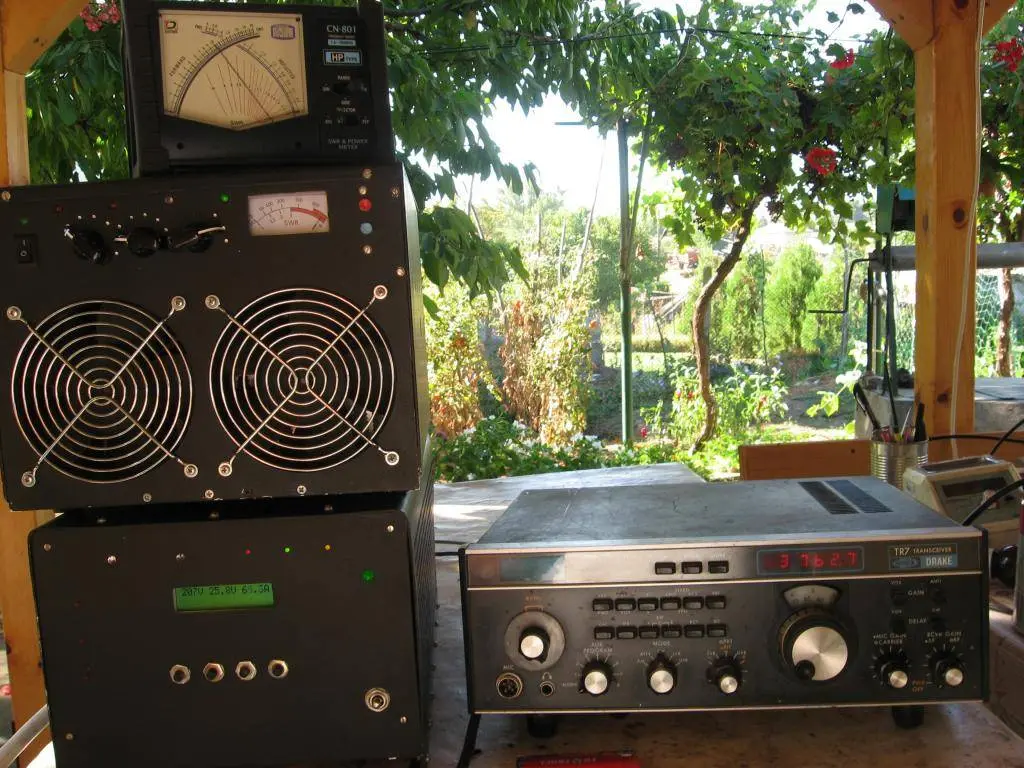

photos/power-supply-analog-a5

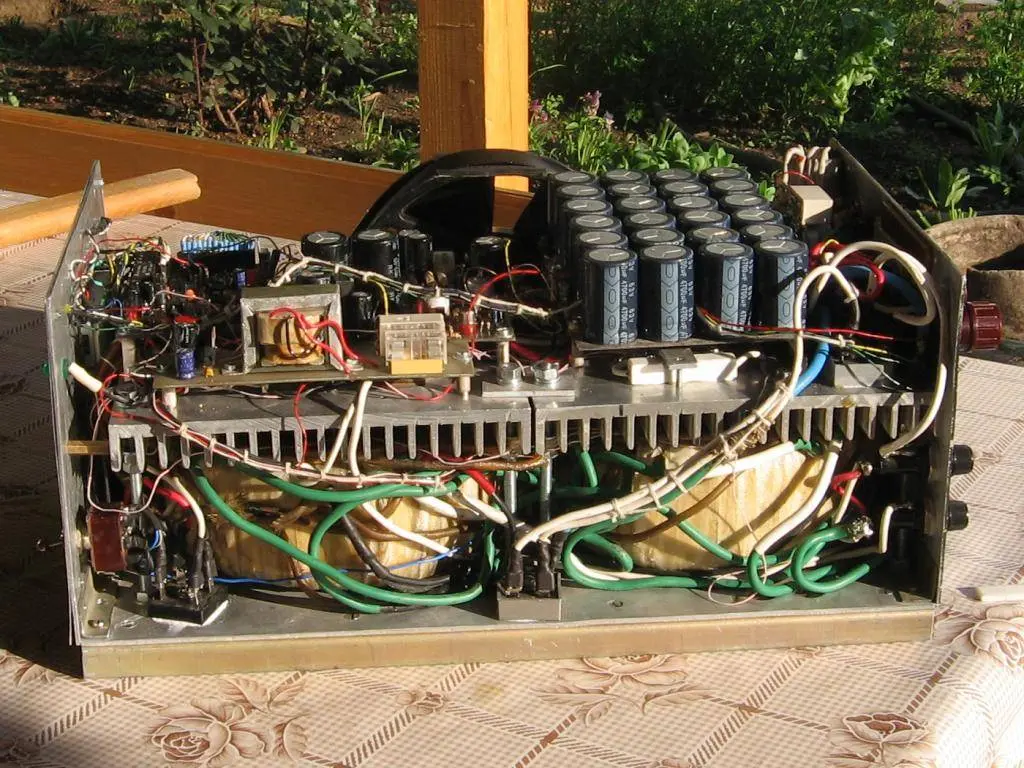

photos/power-supply-analog-b1

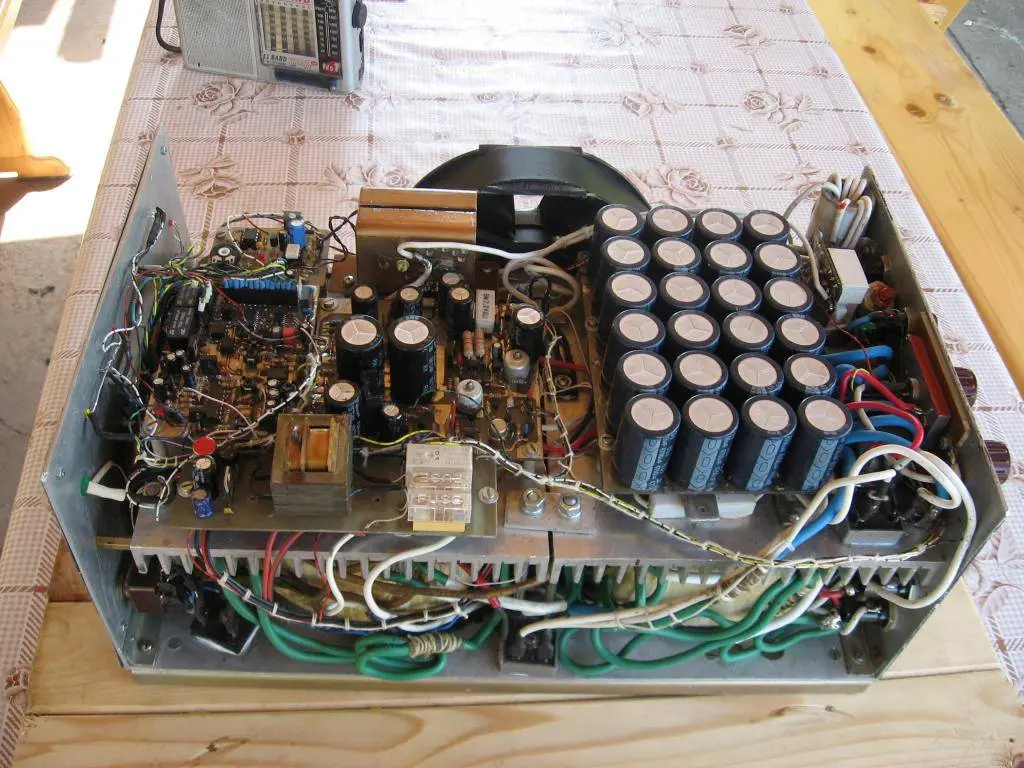

photos/power-supply-analog-b2

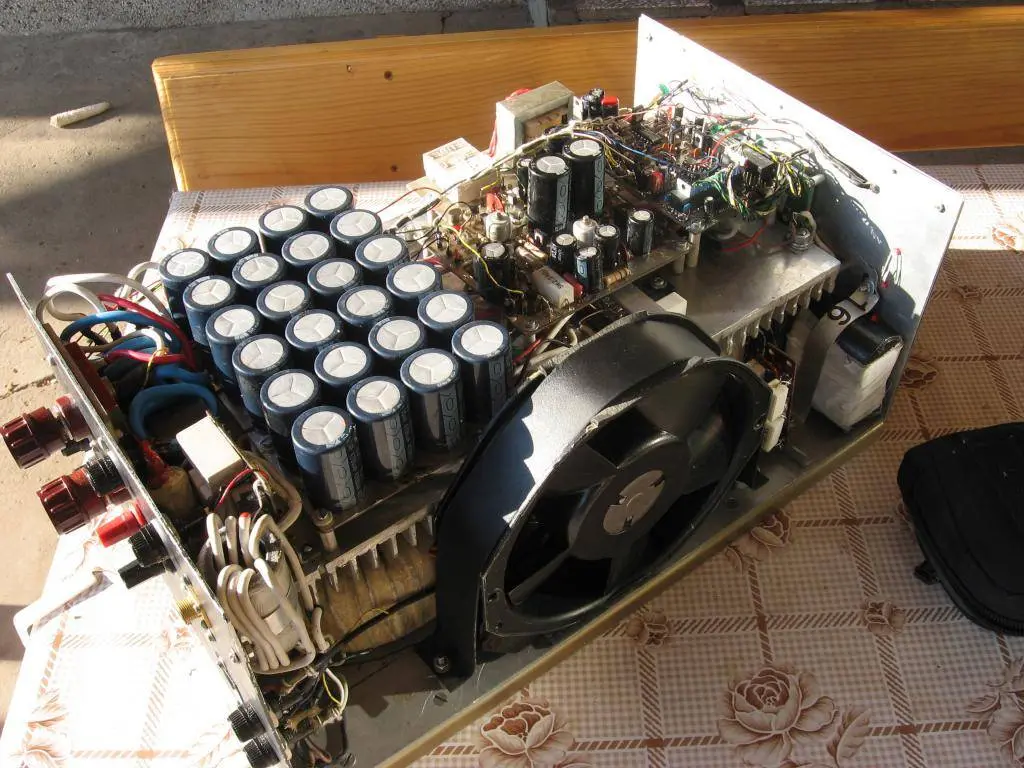

photos/power-supply-analog-b3

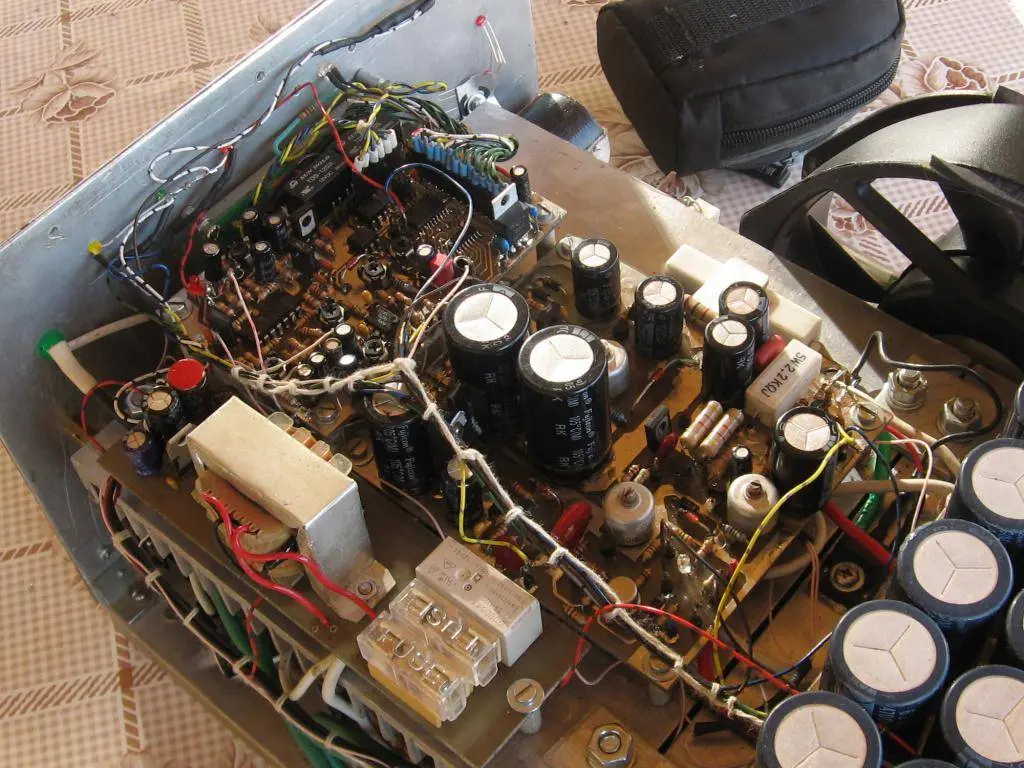

photos/power-supply-analog-b4

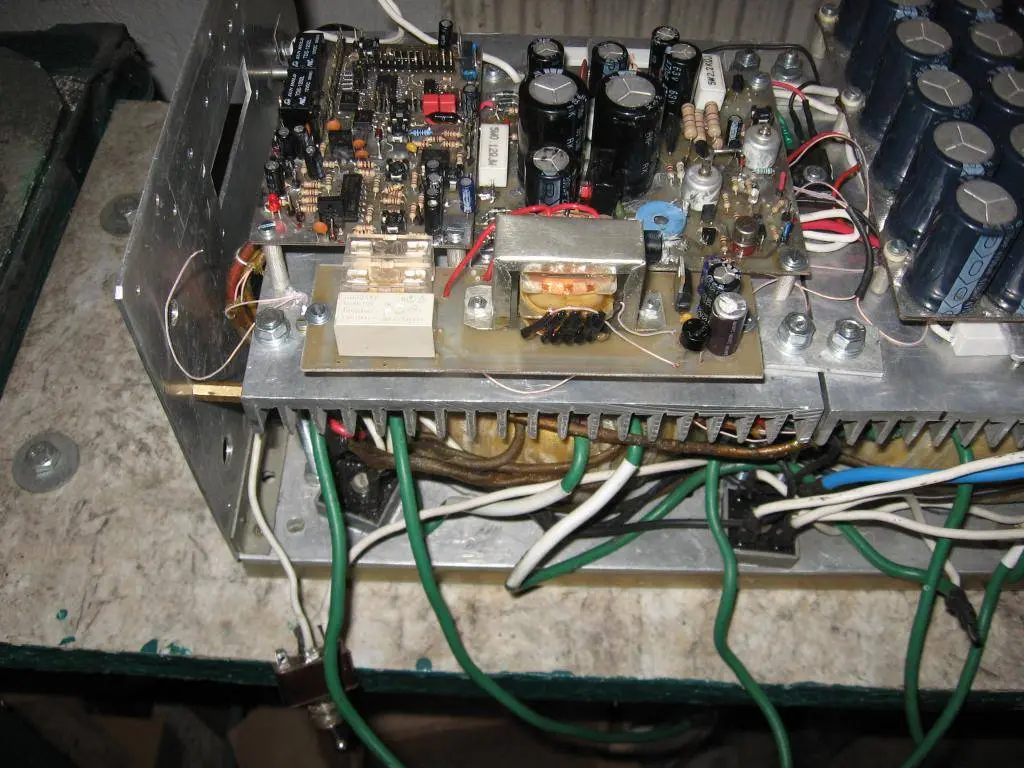

photos/power-supply-analog-b5

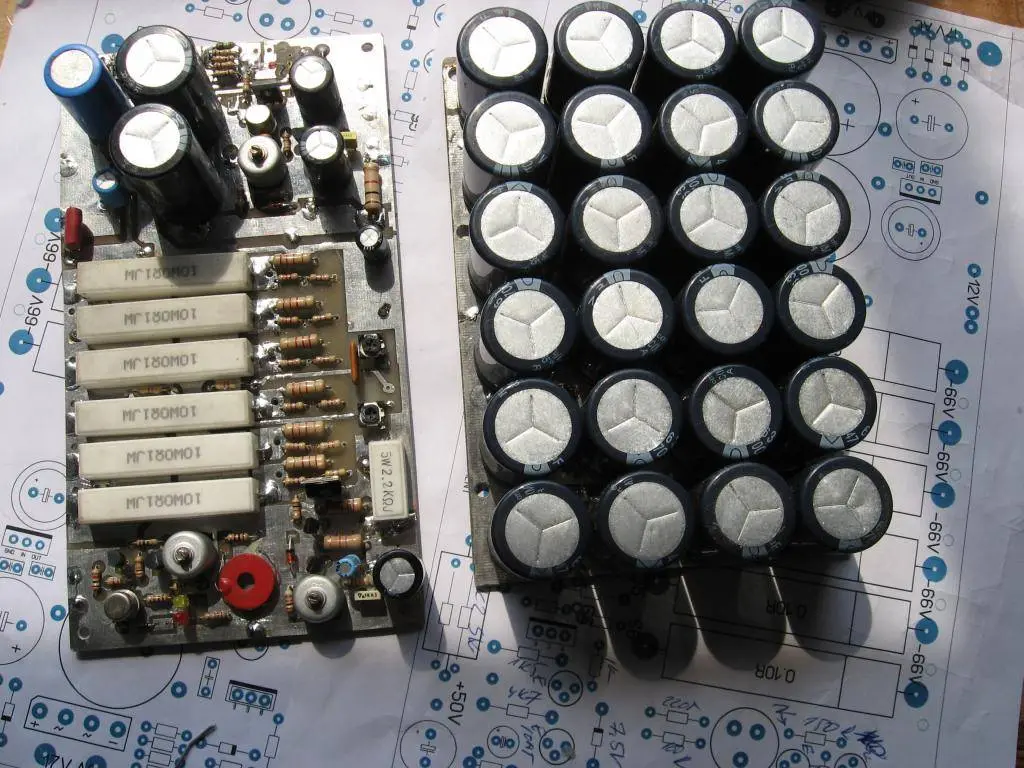

photos/power-supply-analog-b6

Schematics

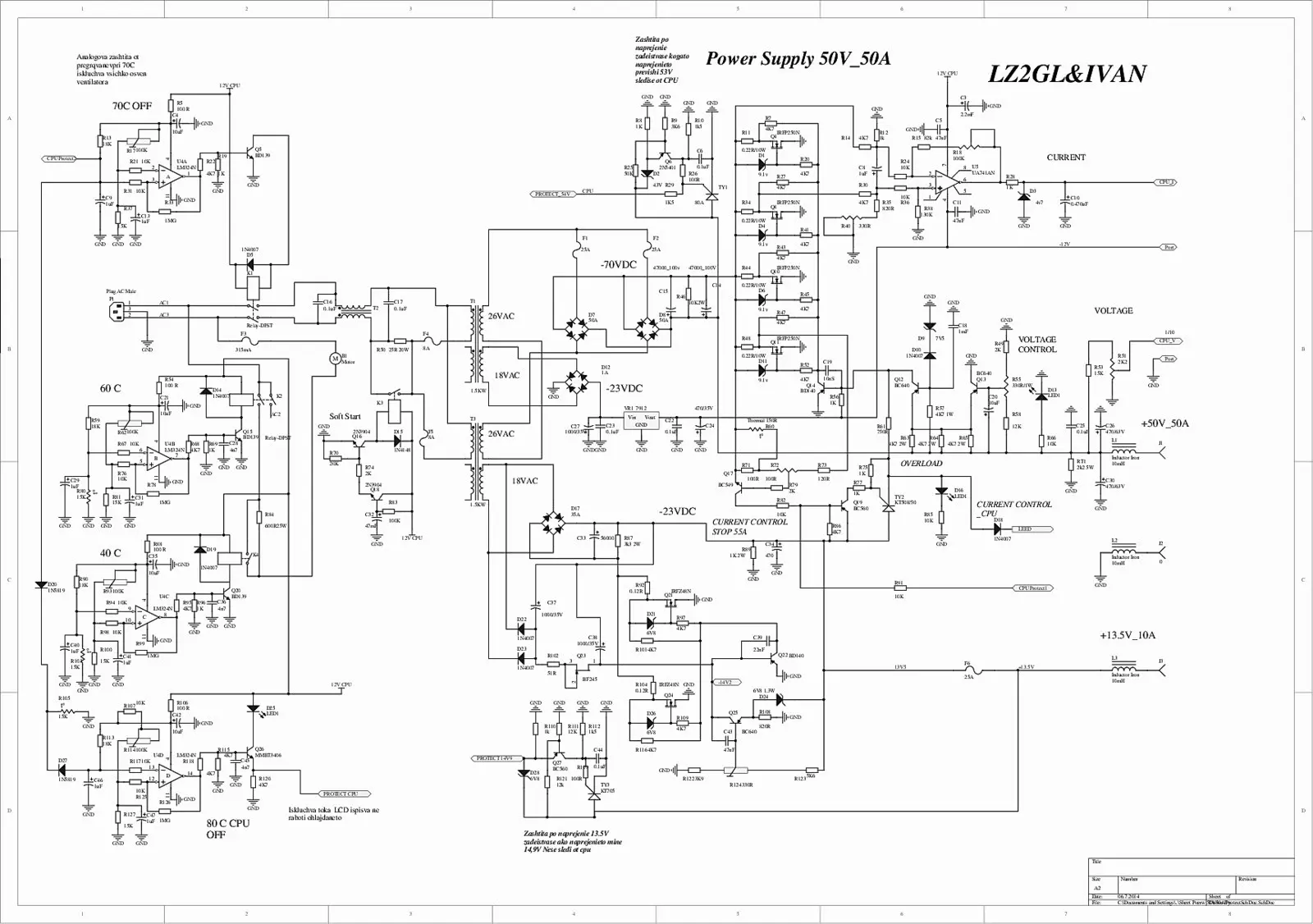

Analog Power Supply 50V/50A Schematics Analog Power Supply 50V/50A Schematics
( as PDF)

Analog Power Supply 28V/85A Schematics Analog Power Supply 28V/85A Schematics
( as PDF)

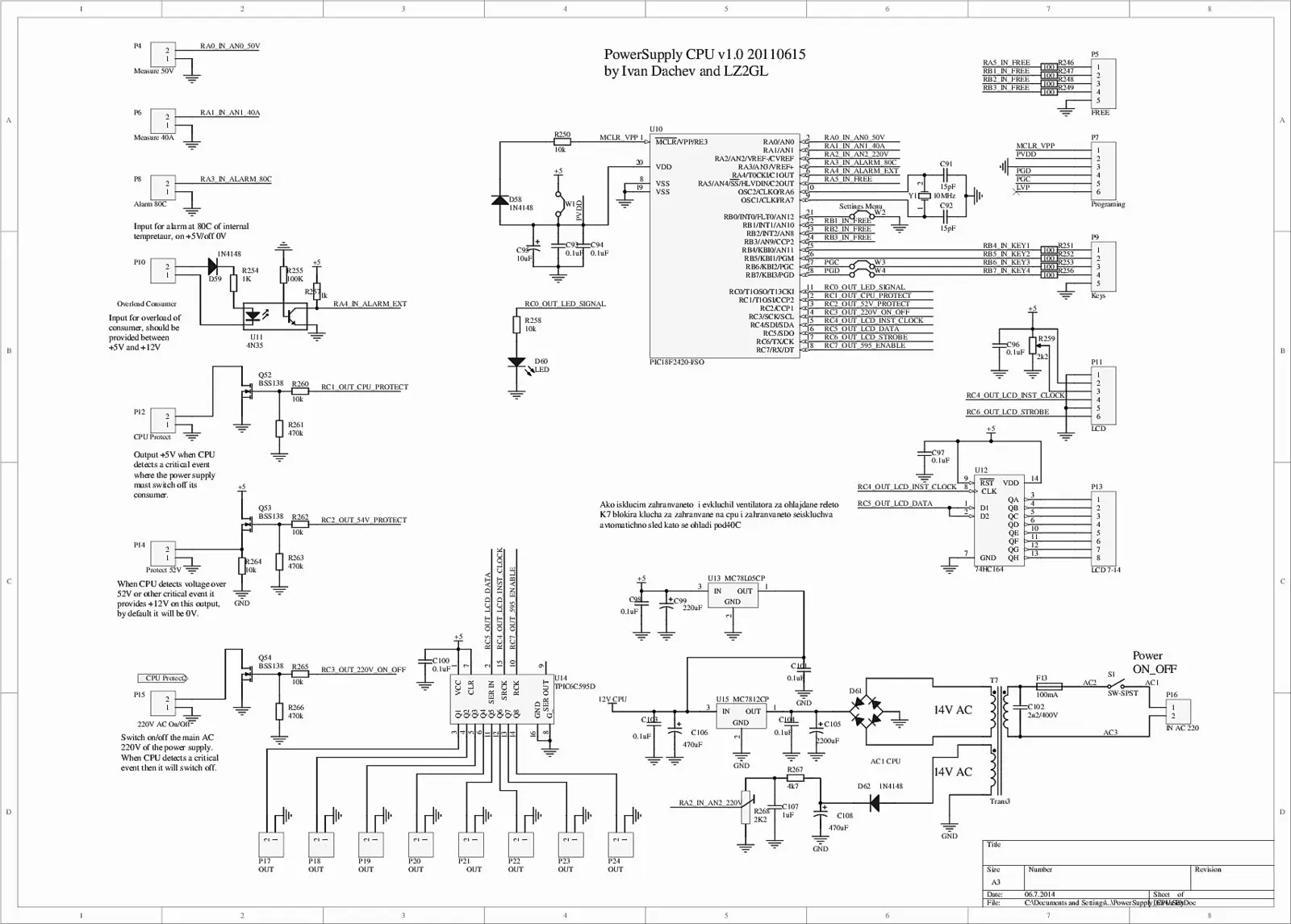

Analog Power Supply CPU Controlling Schematics Analog Power Supply CPU Controlling Schematics
( as PDF)

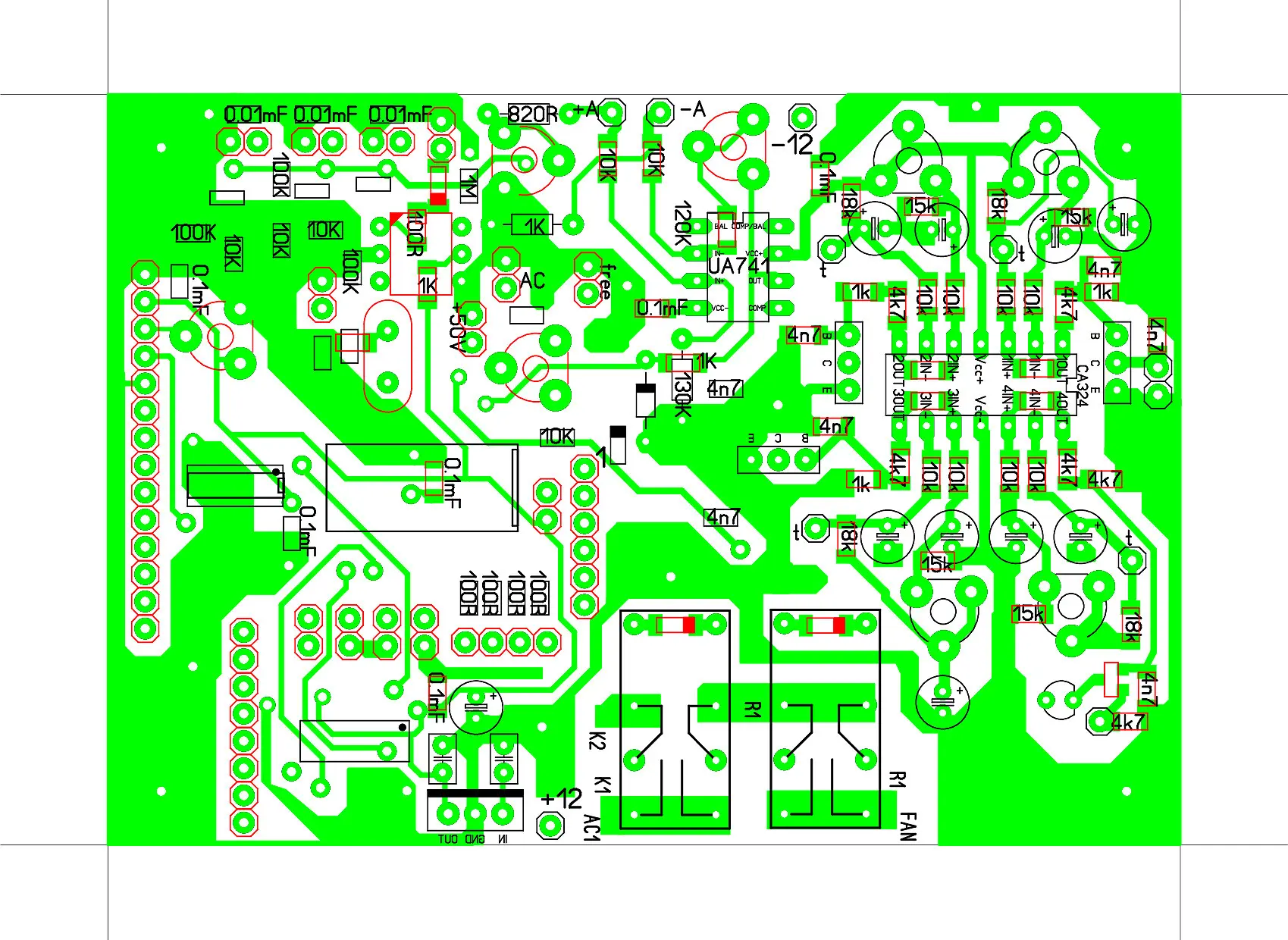

Analog Power Supply CPU Controlling PCB Top Analog Power Supply CPU Controlling PCB Top
( as PDF)

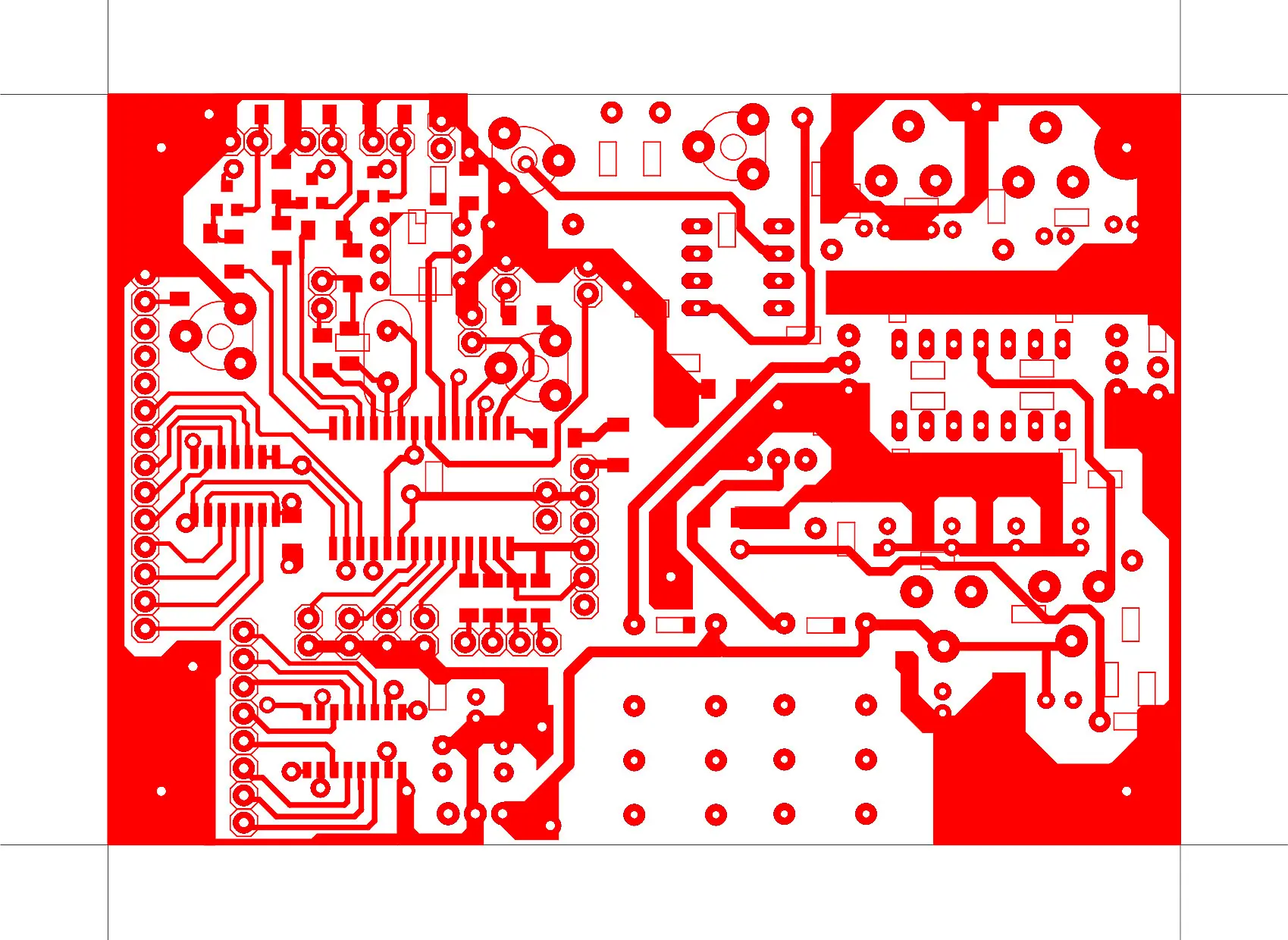

Analog Power Supply CPU Controlling PCB Bottom Analog Power Supply CPU Controlling PCB Bottom
( as PDF)

Power Amplifiers
Analog Power Supply 50V/50A 28V/85A
